Alignment

Tire size:
Front/Rear: P215/45R 17 87V or 215/45ZR 17 91W (optional)

Tire Pressure (at cold):
Front 220 kpa (2.2 kgf/m2, 32 psi)
Rear:
P215/45R 17 87V 200 kpa (2.0 kgf/m2 29 psi)
215/45ZR 17 91W 220 kpa (2.2 kgf/m2, 32 psi)

Caster angle 7° 00' ± 1°

Camber angle:
Front 0°00'±30'
(Maximum difference between the front right and left side 0° 35'
Rear -1° 30' (+1° 05') (-0° 45')

Front toe-in 0 ± 2 mm (0 ± 0.08 inch)

Rear toe-in 2 (+2 -1 mm) (0.08 (+0.08 -0.04) inch)

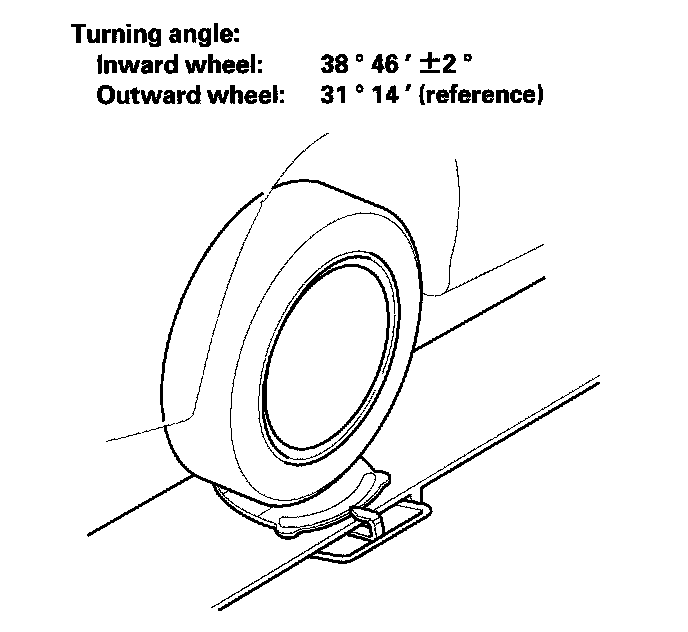

Turning angle:
