Intake Manifold
Intake ManifoldIntake Manifold:

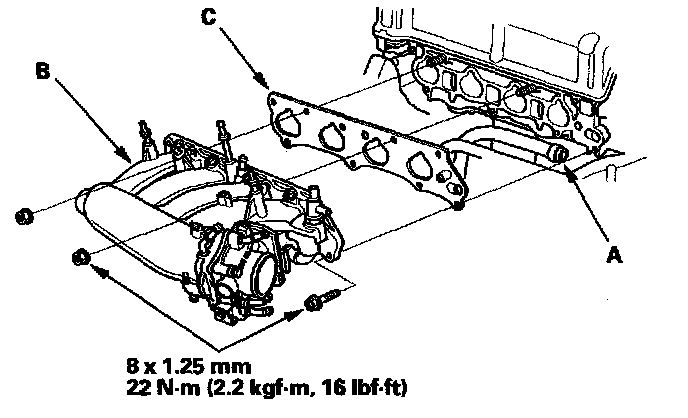

Install the water bypass hose (A) to the intake manifold (B), then install the intake manifold with a new gasket (C), and tighten the bolts and nuts in a crisscross pattern in two or three steps, beginning with the inner bolt.

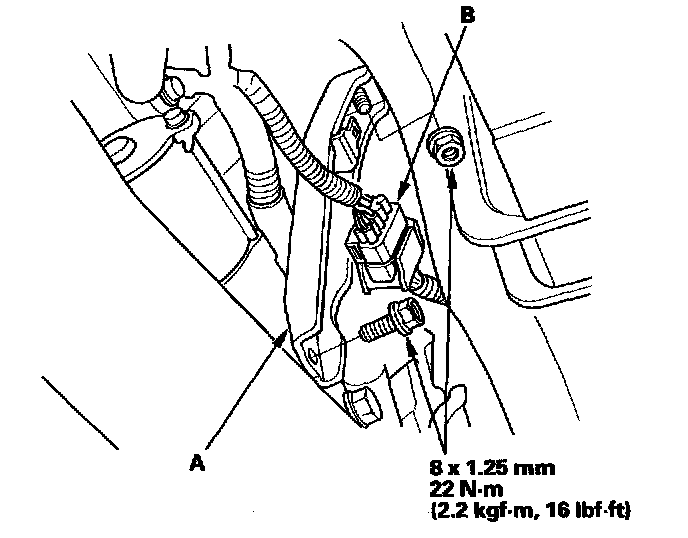

Install the intake manifold bracket (A), then install the connector (B).

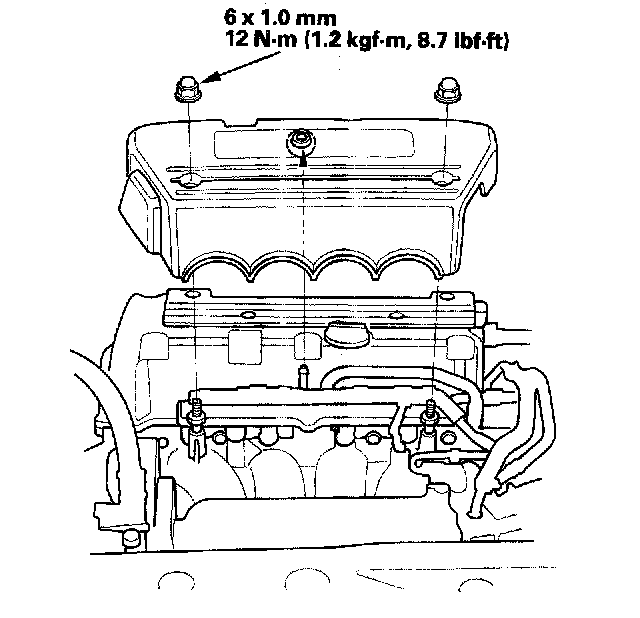

Install the intake manifold cover.
