CMP Sensor A Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Disconnect the CMP sensor A 3P connector (A).

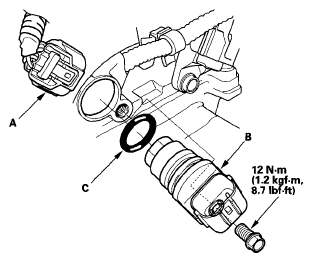

    Fig 1: Disconnecting CMP Sensor A 3P Connector (With Specifications)
    G04666072Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove CMP sensor A (B) from the intake camshaft side of the cylinder head.
  4. Install the parts in the reverse order of removal with a new O-ring (C).
