VTC System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
VTC System Diagram

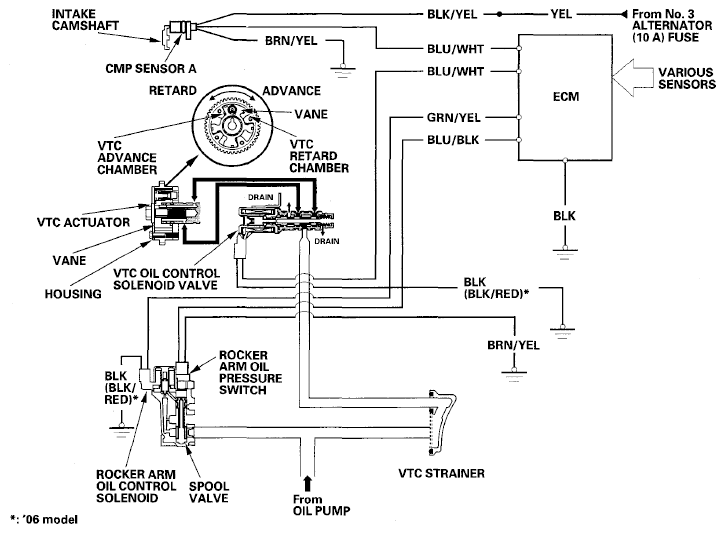

Fig 1: VTC System Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
