CMP Sensor B Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Disconnect the CMP sensor B 3P connector (A).

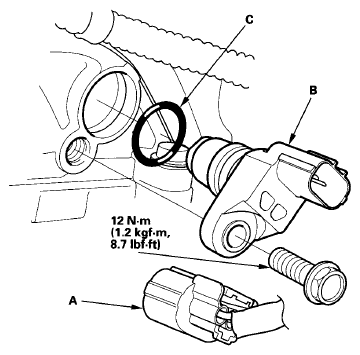

    Fig 1: Identifying CMP Sensor B 3P Connector, CMP Sensor B And O-Ring
    G06273276Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove CMP sensor B.
  4. Install the parts in the reverse order of removal with a new O-ring (C).
