Electronic Brake Control Module: Locations

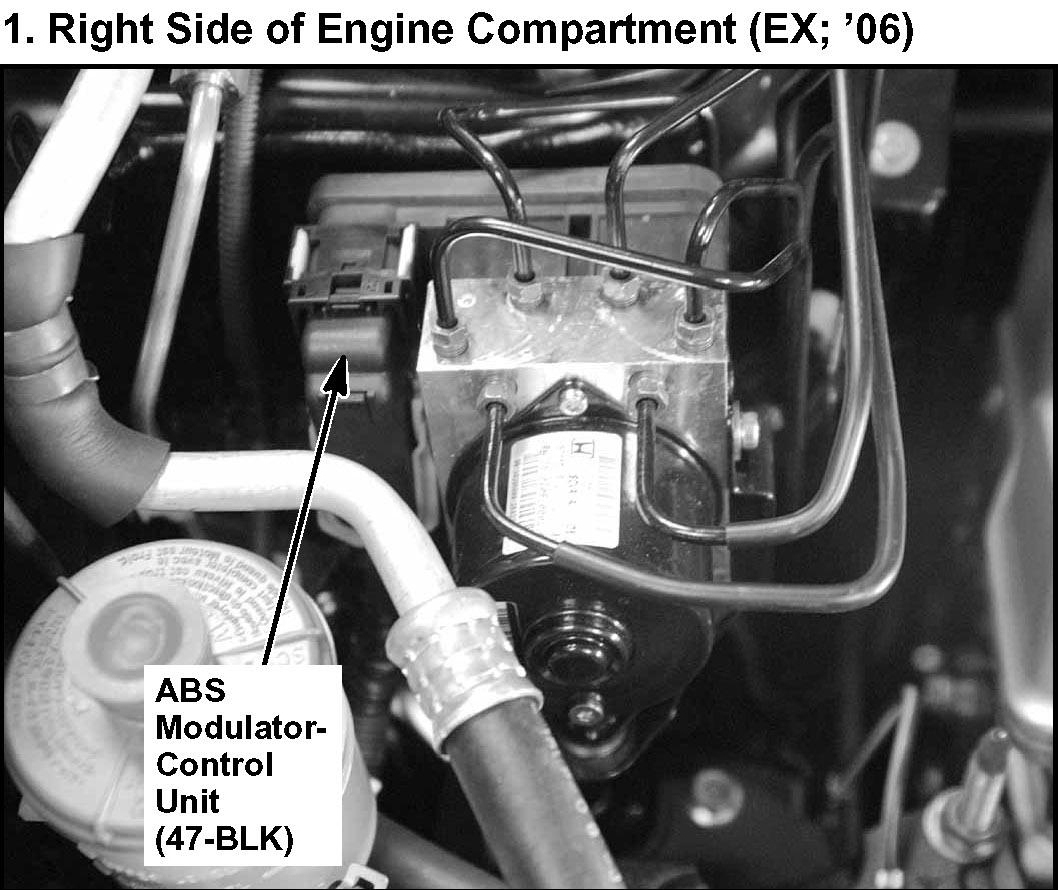

1. Right Side Of Engine Compartment (EX; '06):

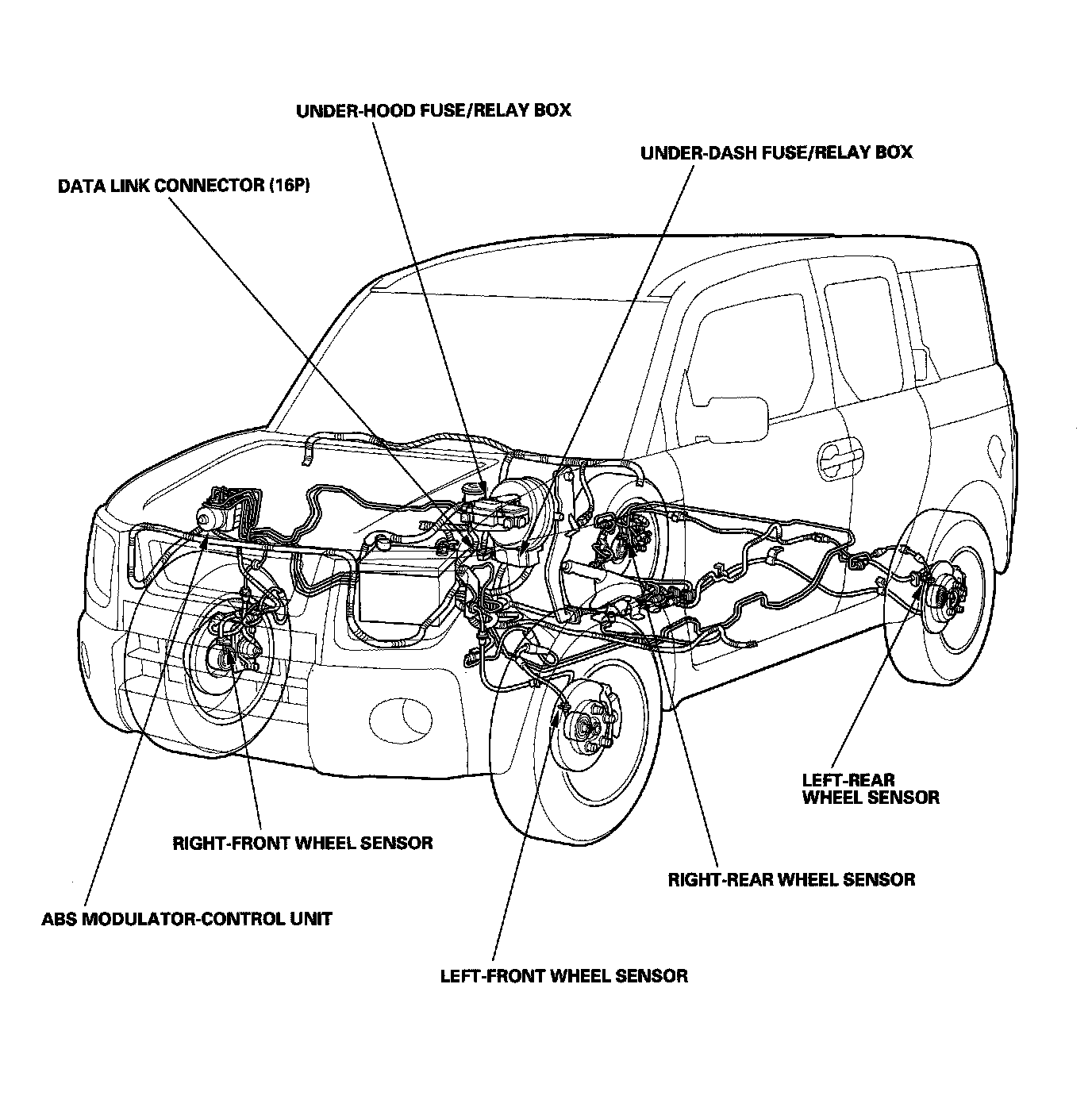

Antilock Brake System Components:
