Air Bag Control Module: Locations

54. Under Middle Of Dash:



156. Side Of Front Passenger's Seat (EX: Side Airbag):

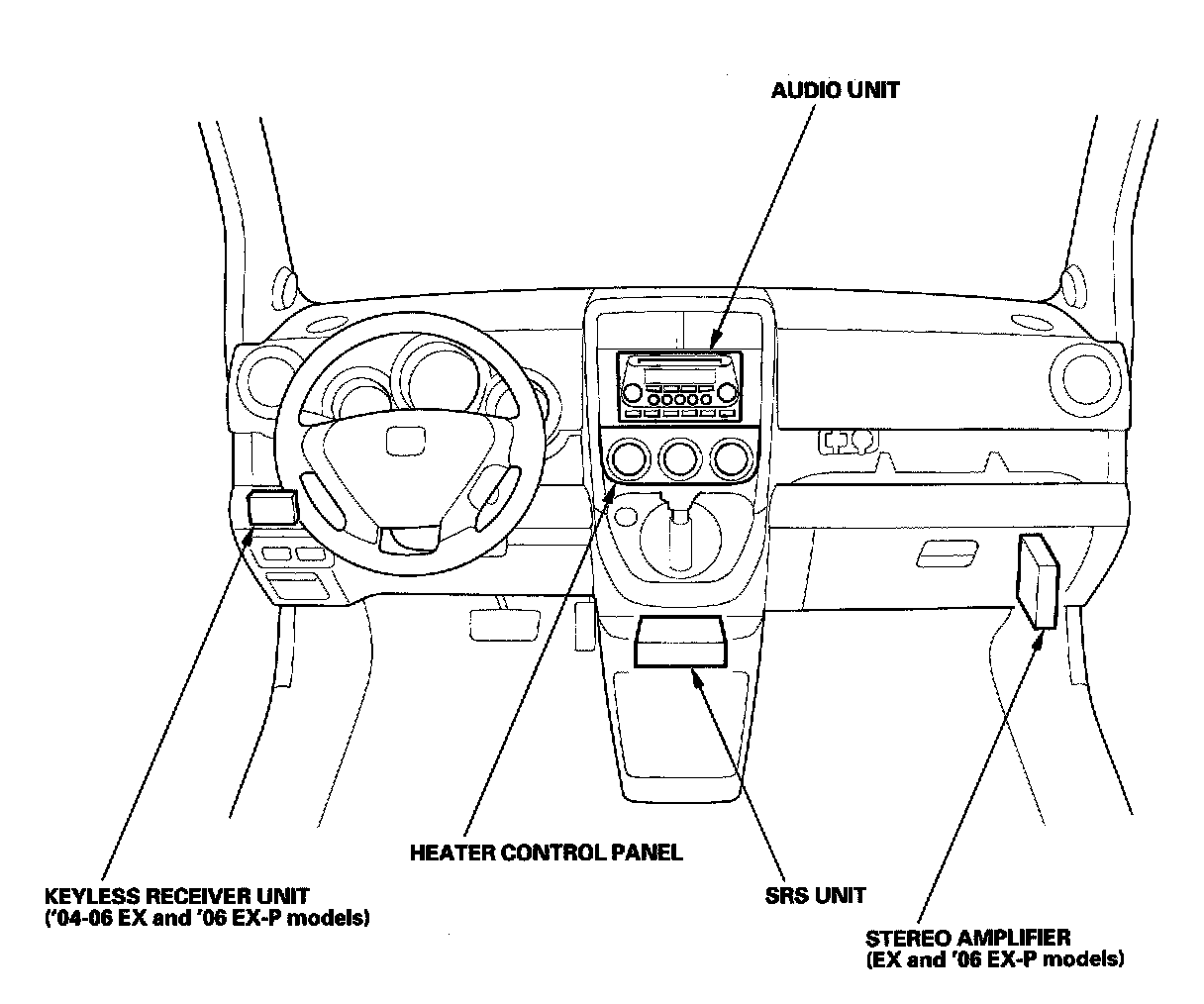

Relay And Control Unit Locations - Dashboard:



Relay And Control Unit Locations - Door,Roof And Seat:

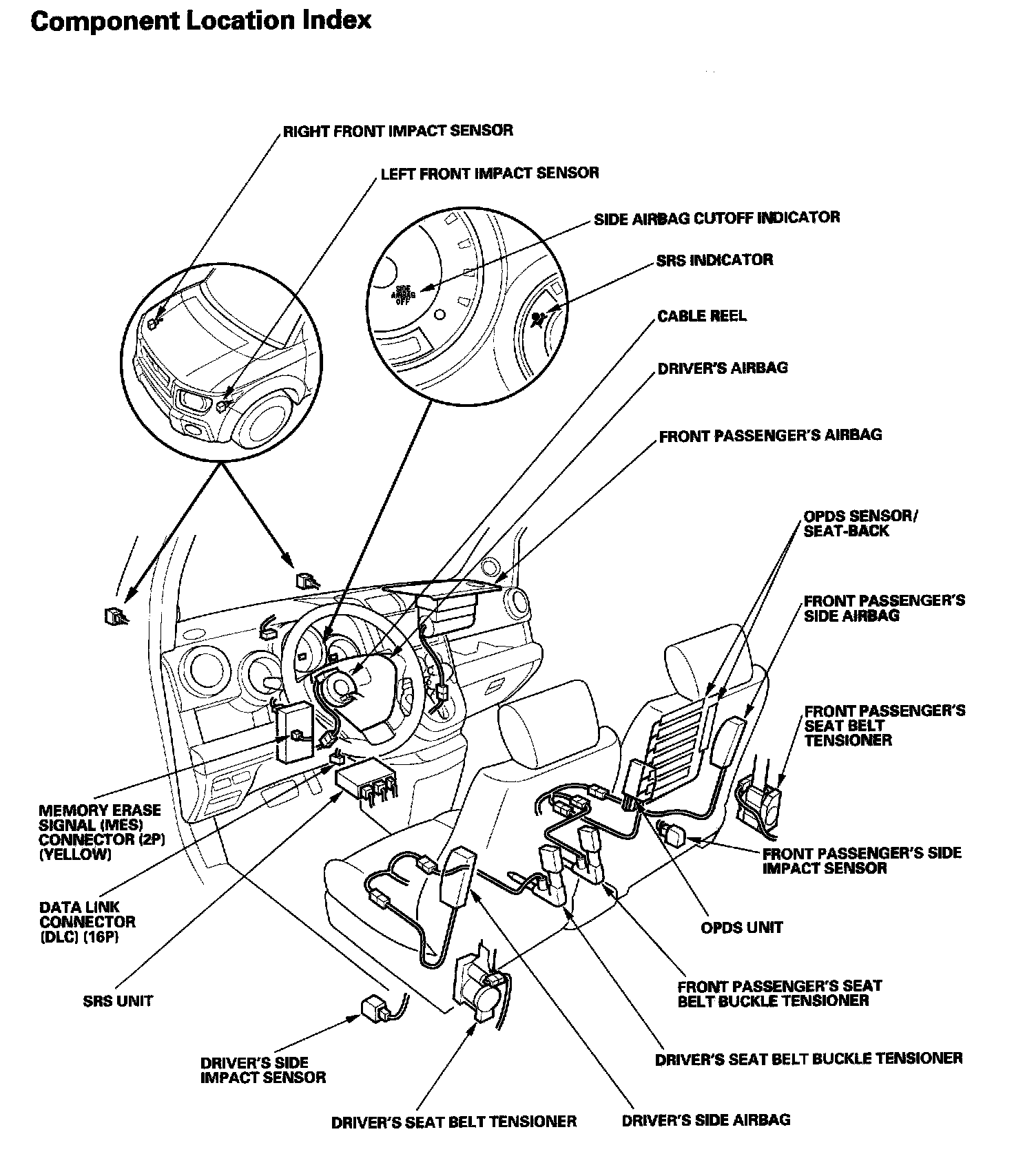

SRS - Component Location Index:
