Knock Sensor Replacement

Remove the throttle body (see THROTTLE BODY REMOVAL/INSTALLATION ).
Disconnect the knock sensor connector, then remove the knock sensor.

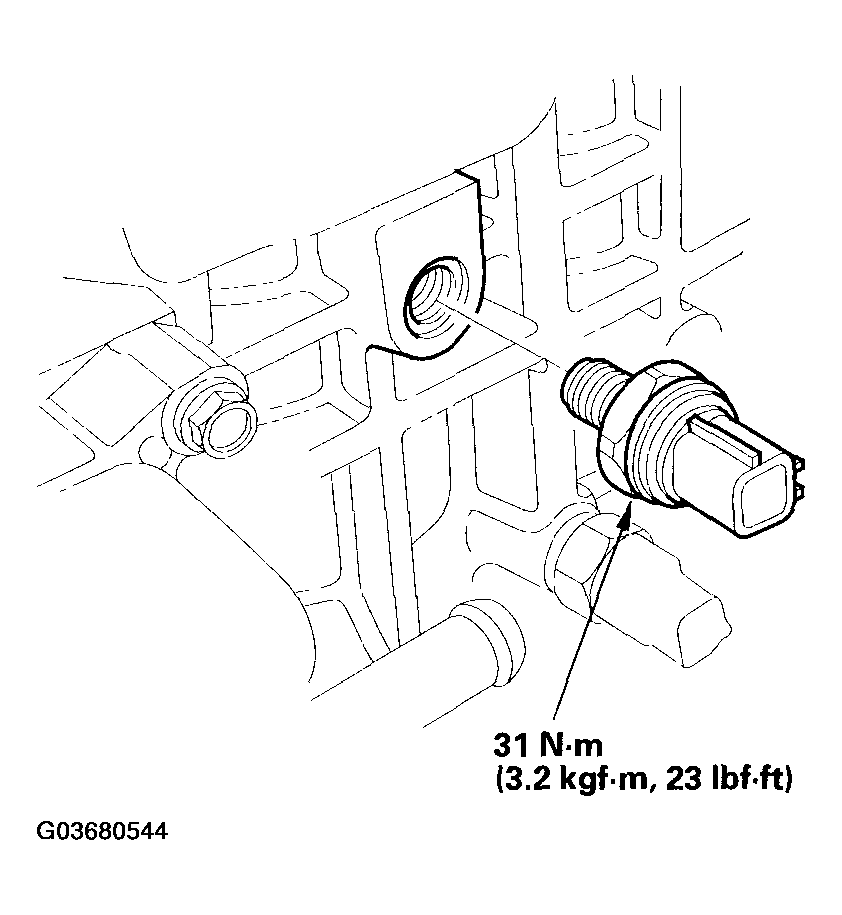

Fig 1: Disconnecting Knock Sensor Connector And Knock Sensor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the knock sensor.
Install the throttle body (see THROTTLE BODY REMOVAL/INSTALLATION ).
