PCM A/T Control System Inputs and Outputs

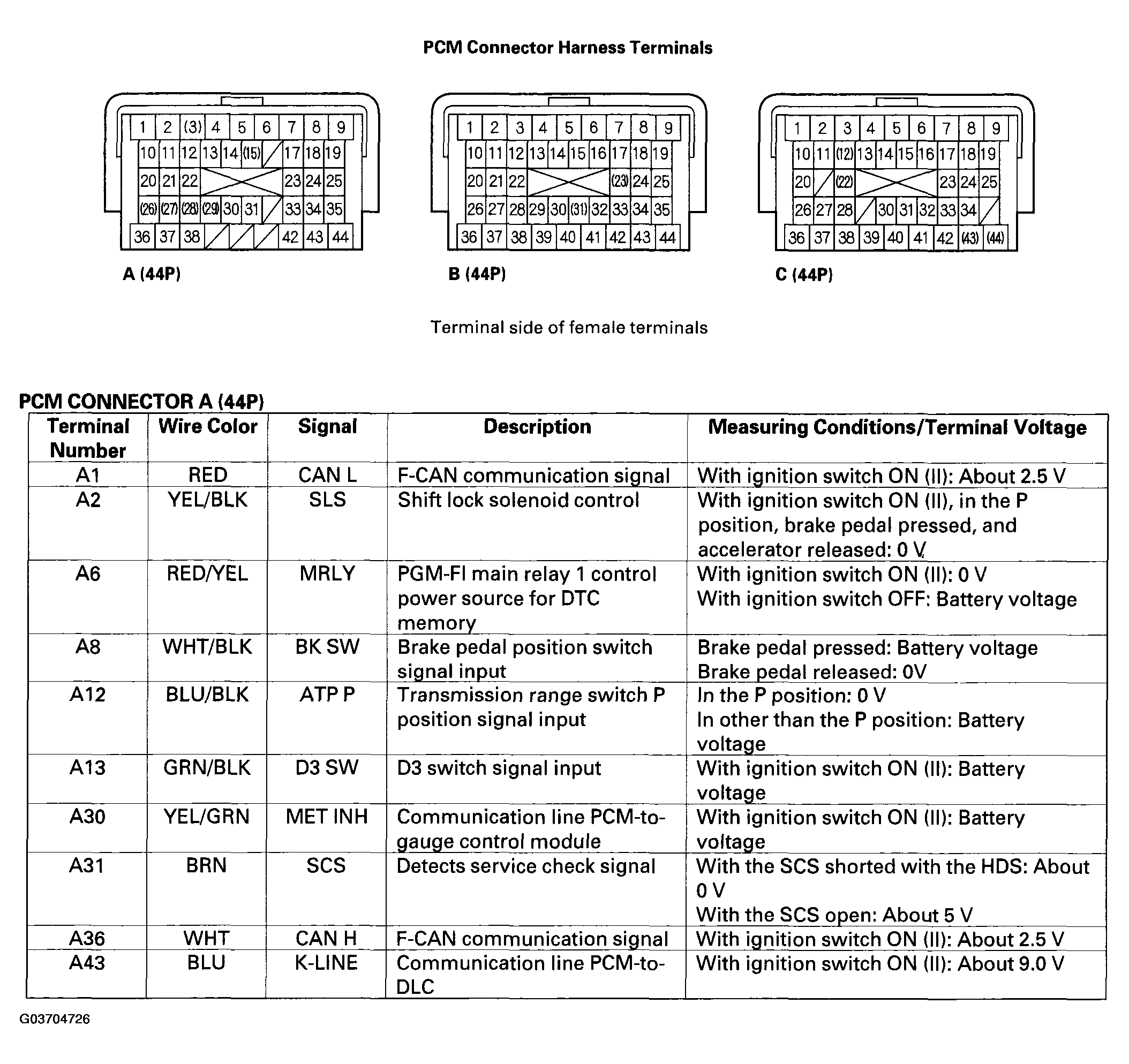

Fig 1: Identifying PCM A/T Control System Inputs And Outputs (PCM Connector A (44P)) Chart
G03704726Courtesy of AMERICAN HONDA MOTOR CO., INC.

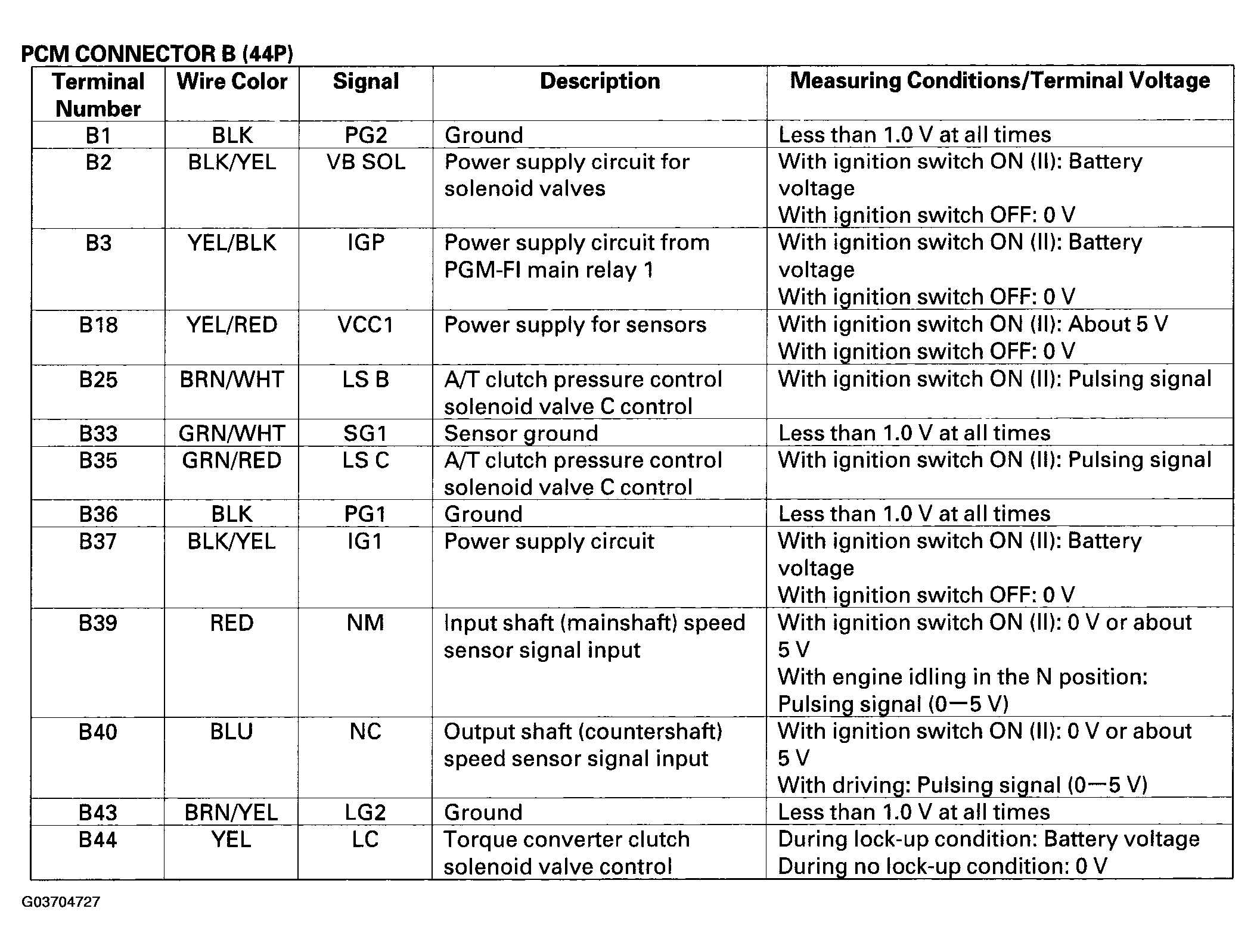

Fig 2: Identifying PCM A/T Control System Inputs And Outputs (PCM Connector B (44P)) Chart
G03704727Courtesy of AMERICAN HONDA MOTOR CO., INC.

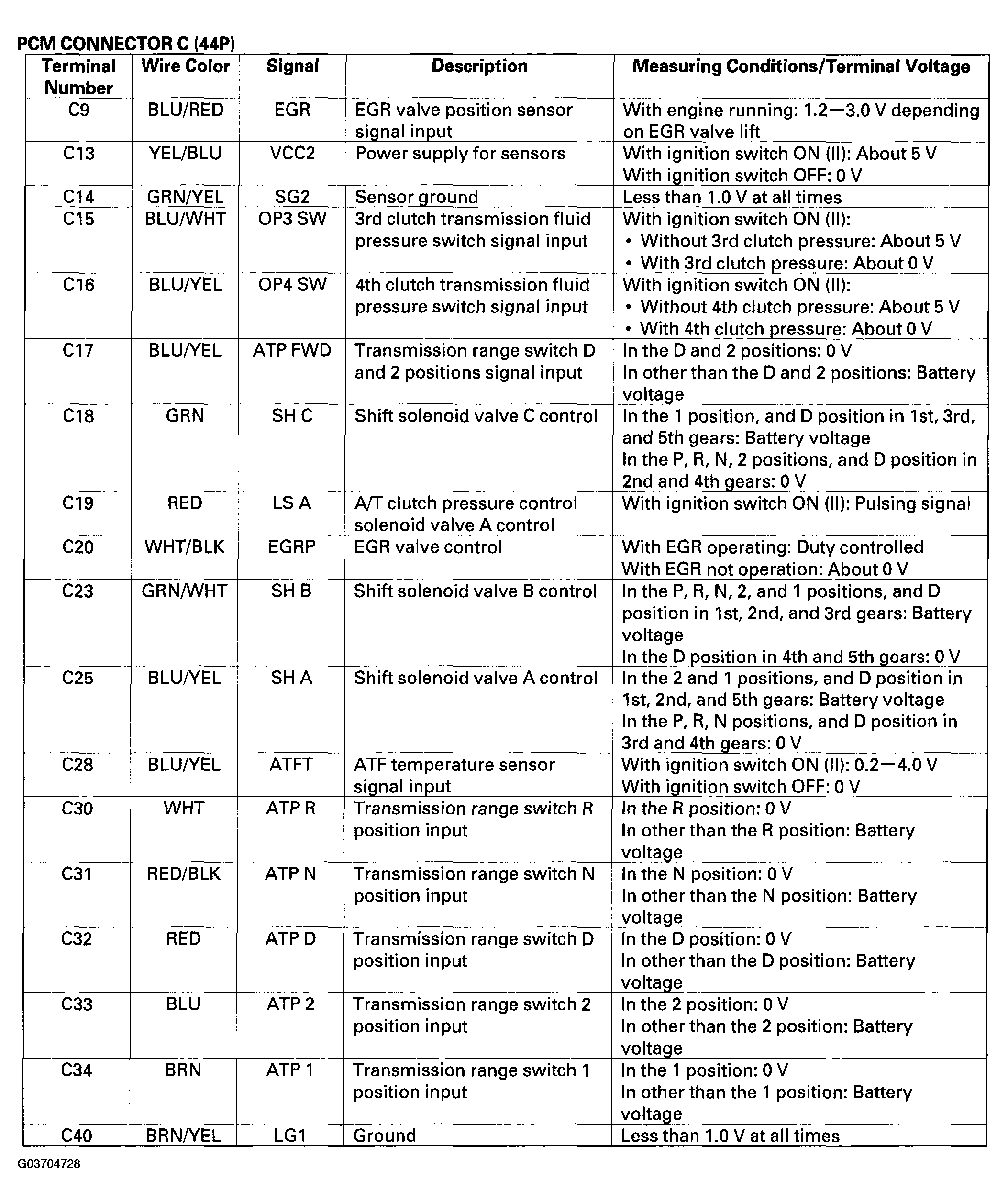

Fig 3: Identifying PCM A/T Control System Inputs And Outputs (PCM Connector C (44P)) Chart
G03704728Courtesy of AMERICAN HONDA MOTOR CO., INC.
