Power Mirror Replacement

Lower the door glass fully.

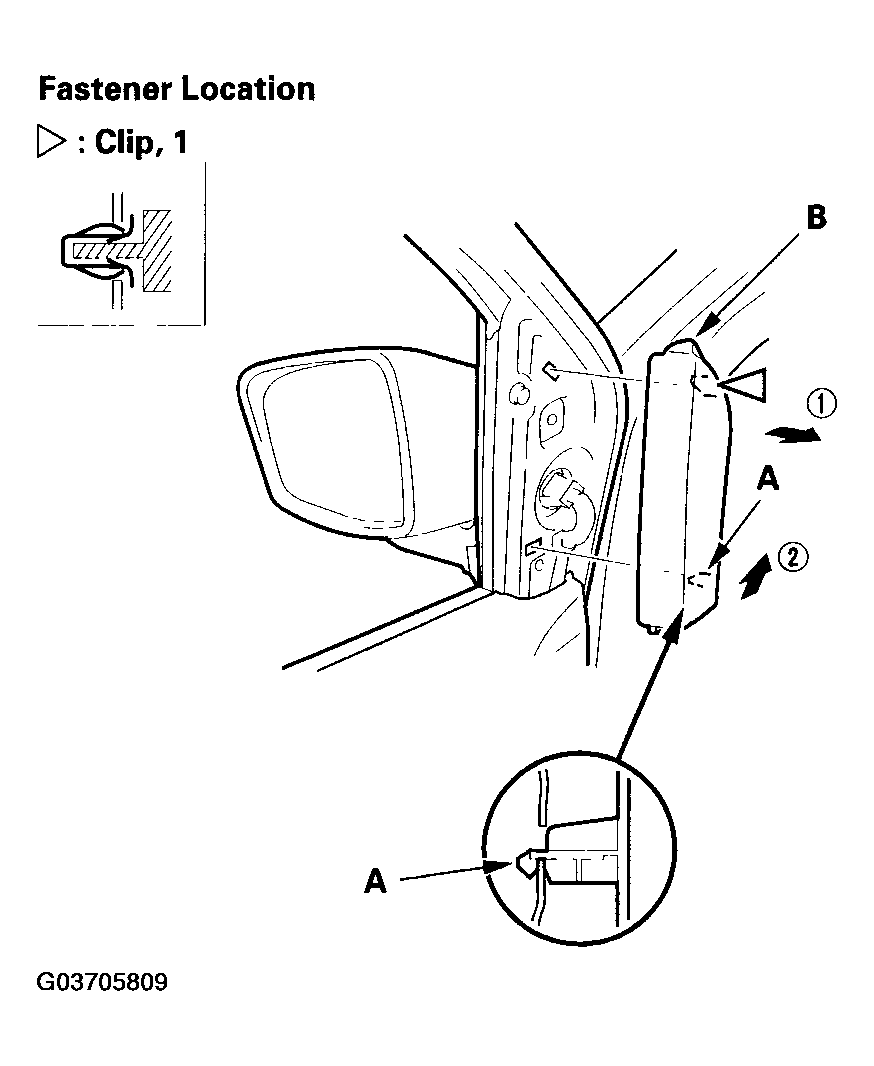

With your hand, carefully release the clip, lift the cover upward to release the hook (A), and remove the cover (B) in the sequence shown in Fig 1 .

Fig 1: Removing Cover In Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.

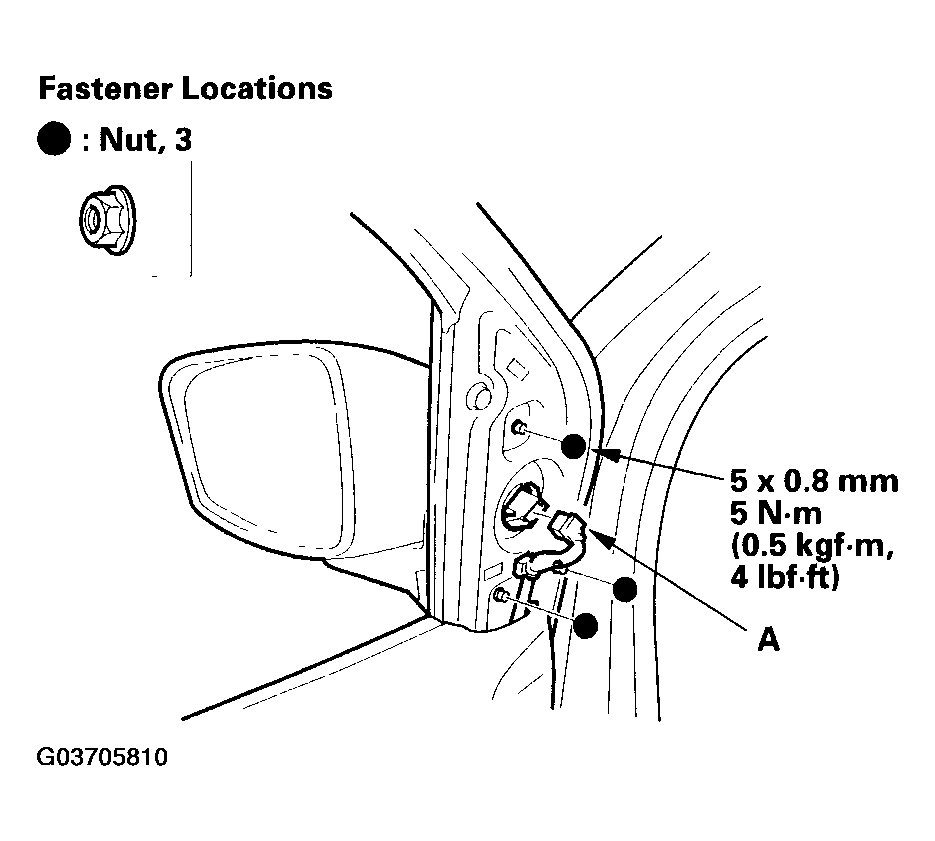

Disconnect the connector (A).

Fig 2: Disconnecting Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
While holding the mirror, remove the nuts securing the mirror.

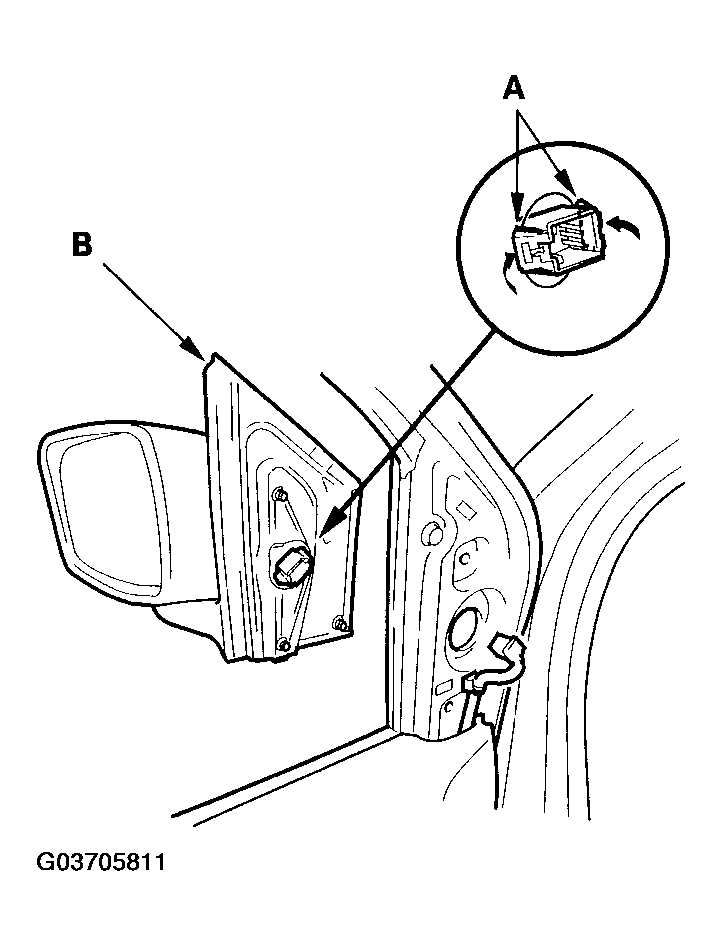

While holding the mirror, push in on the connector clips (A), then push out to remove the mirror (B). Take care not to scratch the door.

Fig 3: Pushing Out To Remove Mirror
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the mirror in the reverse order of removal, and make sure the connector is plugged in properly.
