Without DPMS

NOTE: For DMPS power seat motor test (see DRIVER'S POWER SEAT MOTOR TEST ).

Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
Remove the power seat adjustment switch knobs and recline cover from the seat (see FRONT SEAT DISASSEMBLY/REASSEMBLY - MANUAL ).
Disconnect the 12P connector (A) from the power seat adjustment switch (B).

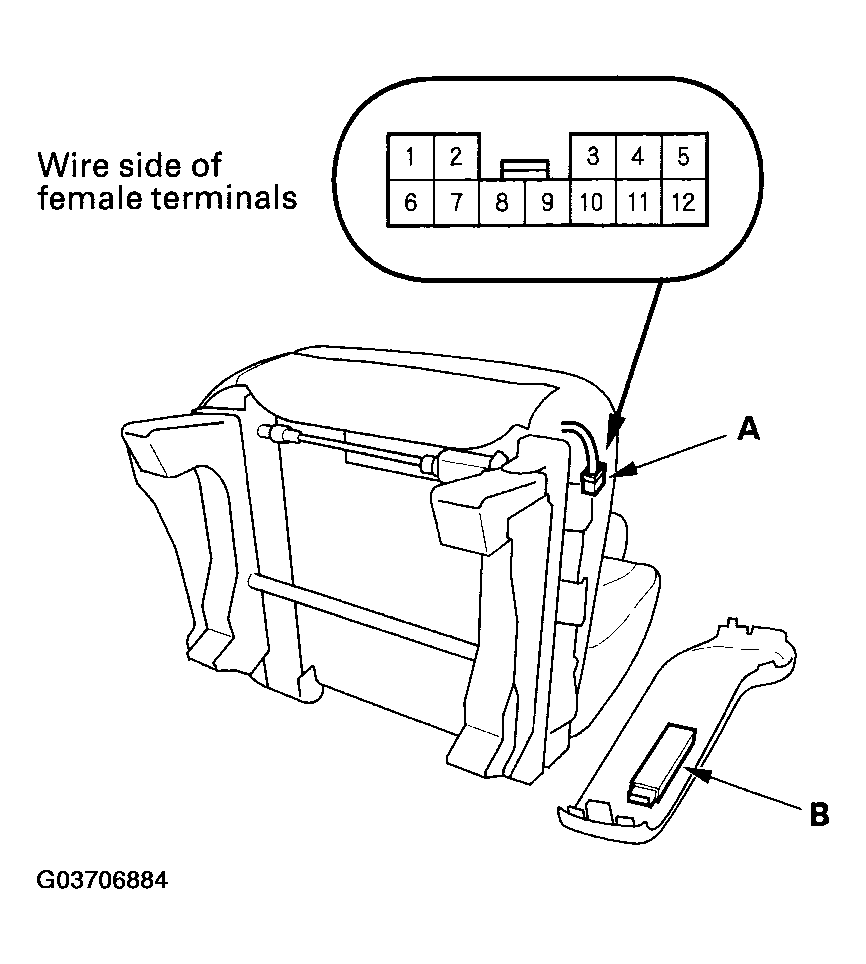

Fig 1: Disconnecting 12P Connector From Power Seat Adjustment Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test each motor by applying battery voltage and body ground to the 12P connector terminals.

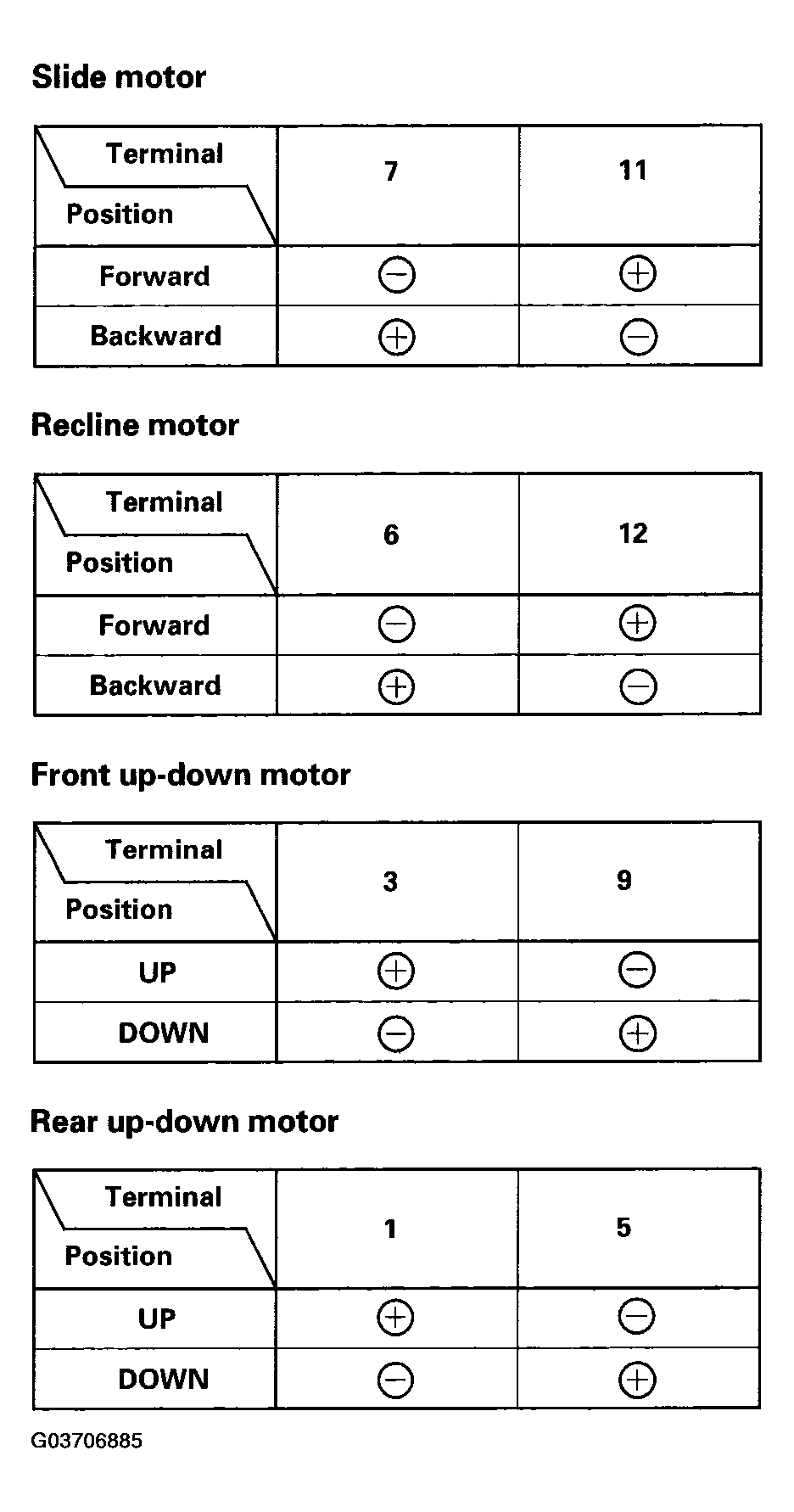

Fig 2: Applying Battery Voltage And Body To 12P Connector Terminals Tables
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, check for an open in the driver's seat wire harness and recline motor subharness. If the harness is OK, replace the motor (see FRONT SEAT RECLINE MOTOR REPLACEMENT ).
