Without DPMS

NOTE: For DPMS power seat switch test/replacement (see SWITCH TEST/REPLACEMENT ).

Remove the power seat adjustment switch knobs (A) and recline cover from the driver's power seat (see FRONT SEAT DISASSEMBLY/REASSEMBLY - MANUAL HEIGHT ADJUSTABLE ), then remove the two screws and the power seat adjustment switch (B).

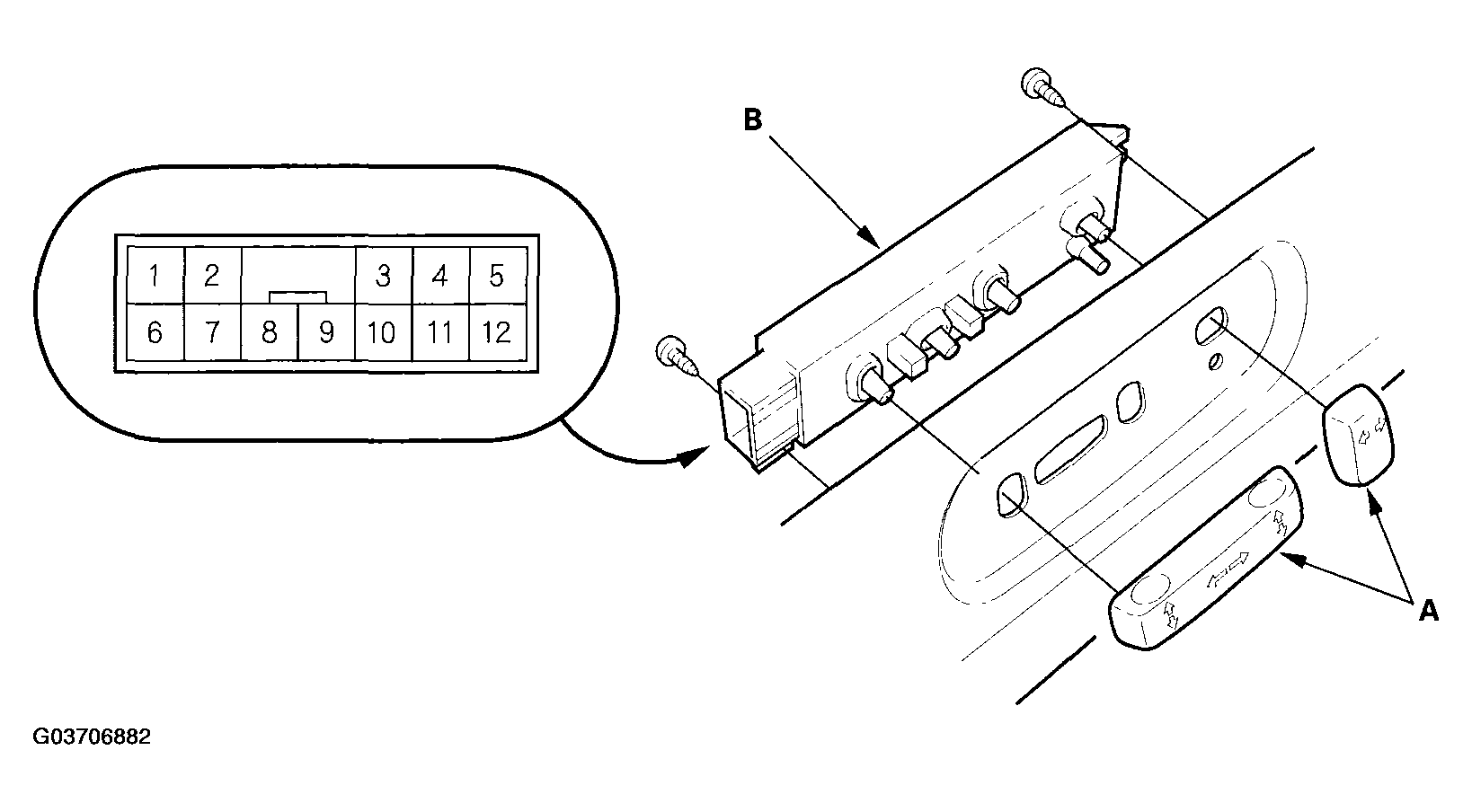

Fig 1: Removing Power Seat Adjustment Switch Knobs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 12P connector from the power seat adjustment switch.
Reinstall the adjustment switch knobs to the switch.
Check for continuity between the terminals in each switch position according to the table shown in Fig 2 .

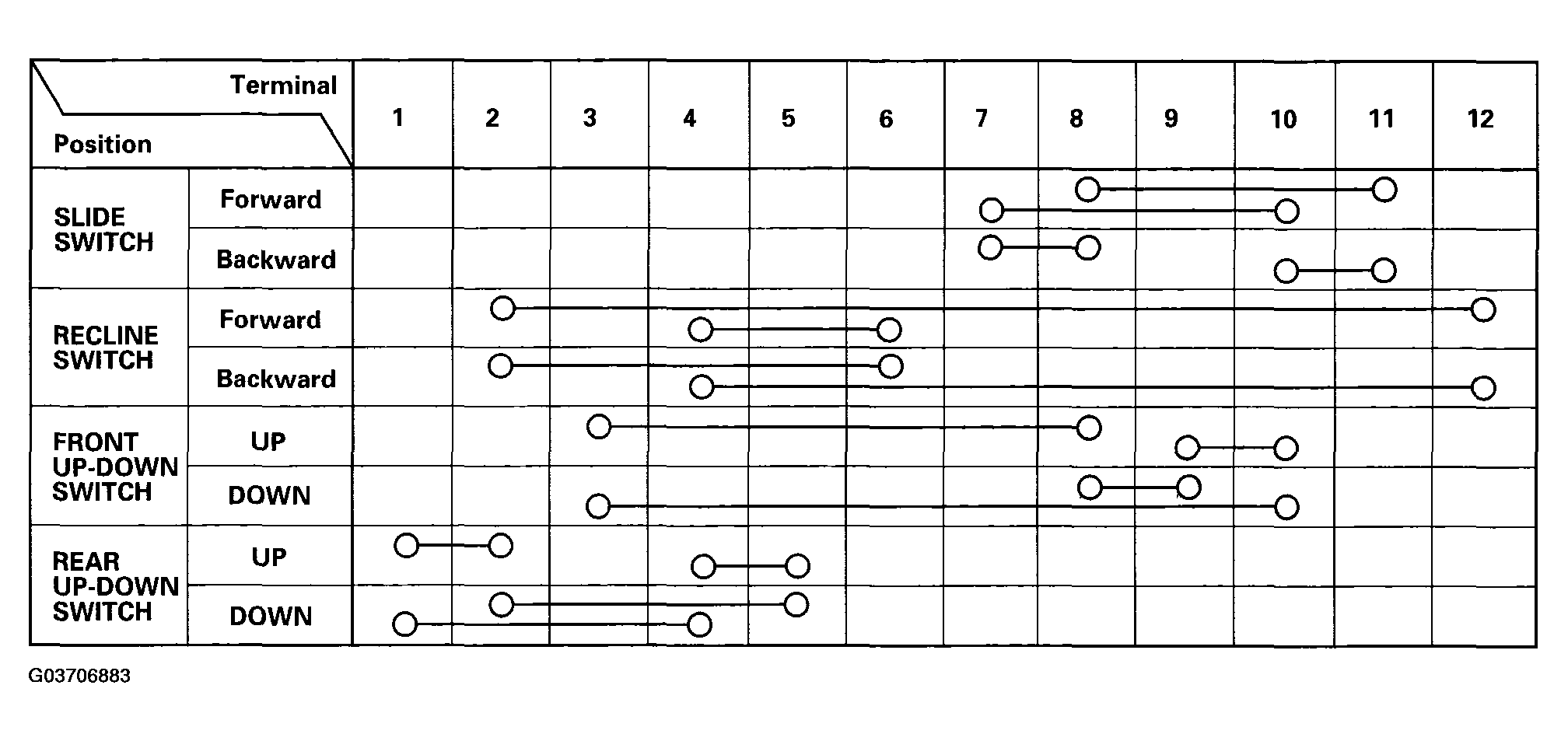

Fig 2: Checking Continuity Between Terminals In Each Switch Position Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
