EVAP Vent Shut Float Replacement
- Remove the left rear wheel.

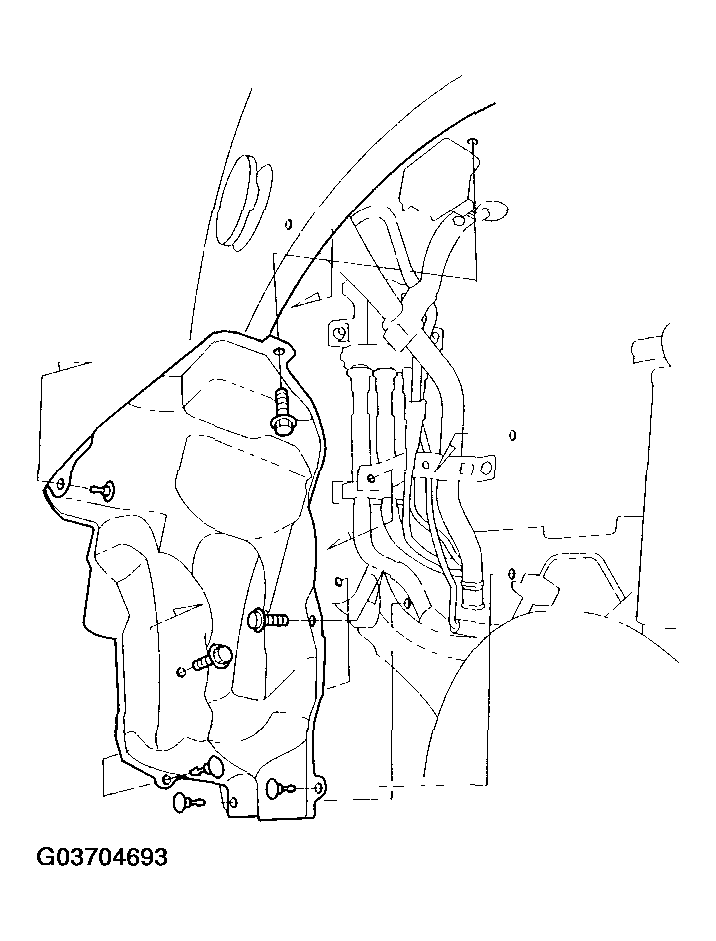

- Remove the fuel pipe cover.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

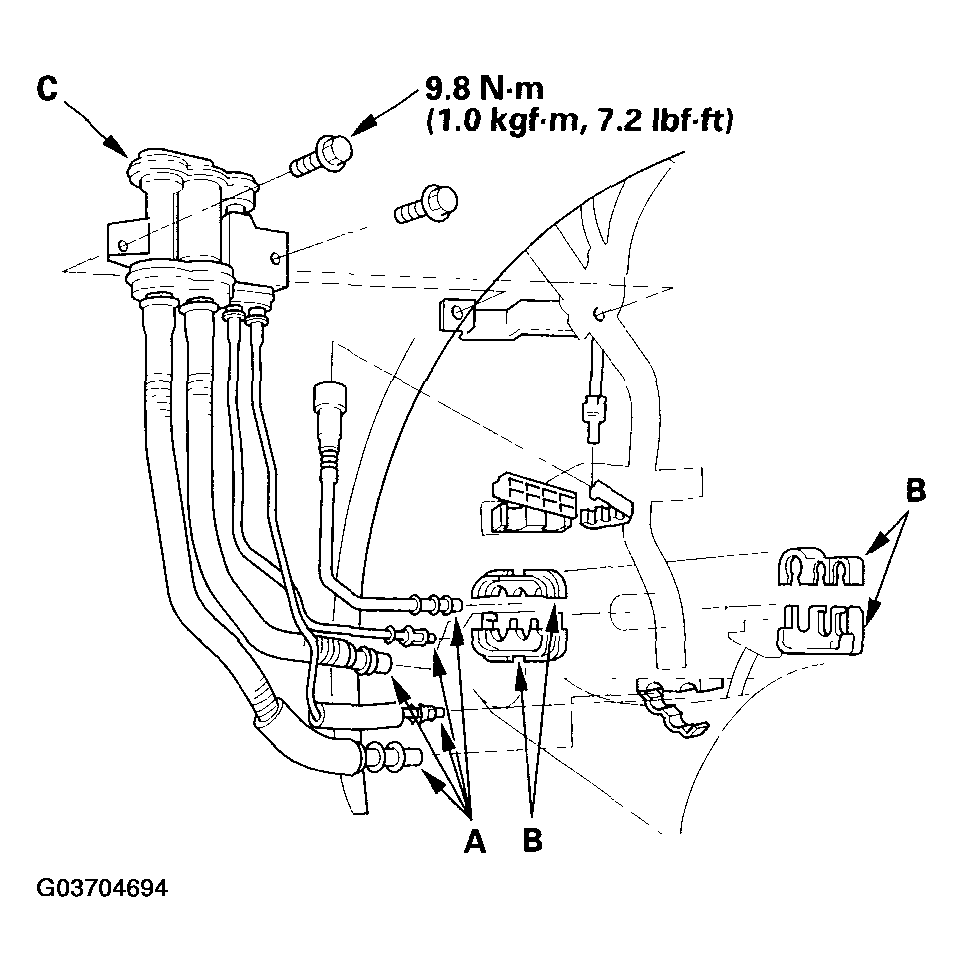

- Disconnect the fuel joint tubes (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the fuel line clips (B).
- Remove the EVAP vent shut float (C).
- Install the EVAP vent shut float in the reverse order of removal.
