Fuel Pressure Regulator Replacement
- Remove the fuel tank unit (see FUEL PUMP/FUEL GAUGE SENDING UNIT REPLACEMENT
).

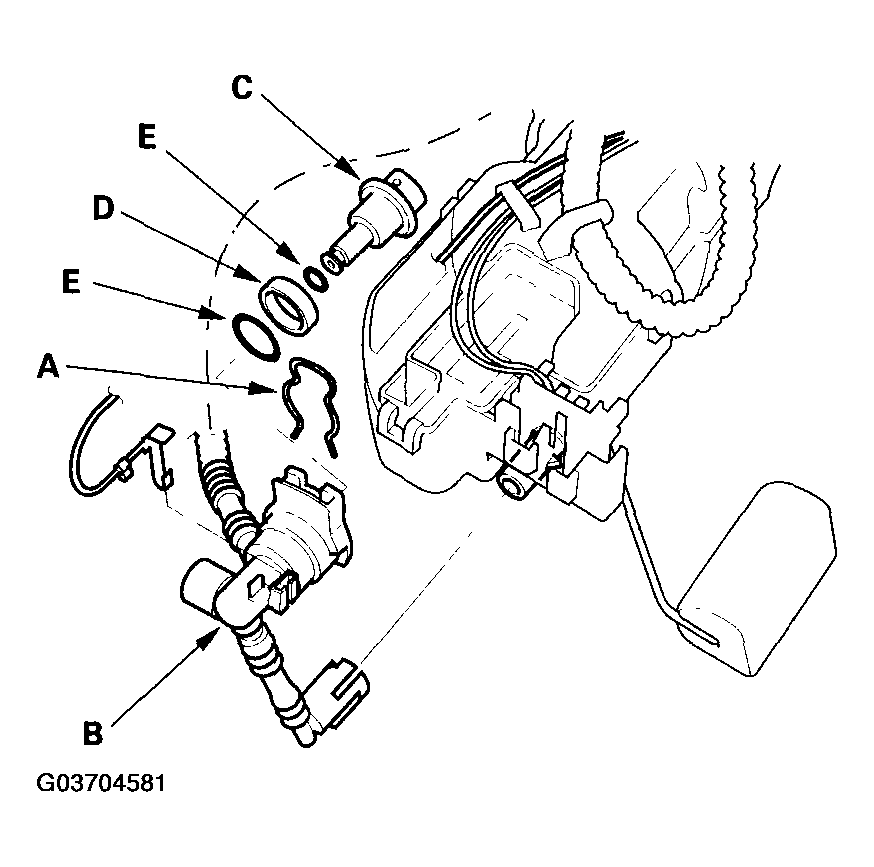

- Remove the clip (A), the pressure regulator bracket (B), the pressure regulator (C), the backup ring (D).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the pressure regulator in the reverse order of removal with new O-rings (E).
NOTE:
Coat the O-rings with clean engine oil. Do not pinch the O-rings during installation. Never apply brake fluid, vegetable oil, or alcohol-based oil to the O-rings.
