IAT Sensor Replacement
Remove the intake manifold cover (see step 1 in REMOVAL
).
Disconnect the IAT sensor 2P connector (A).

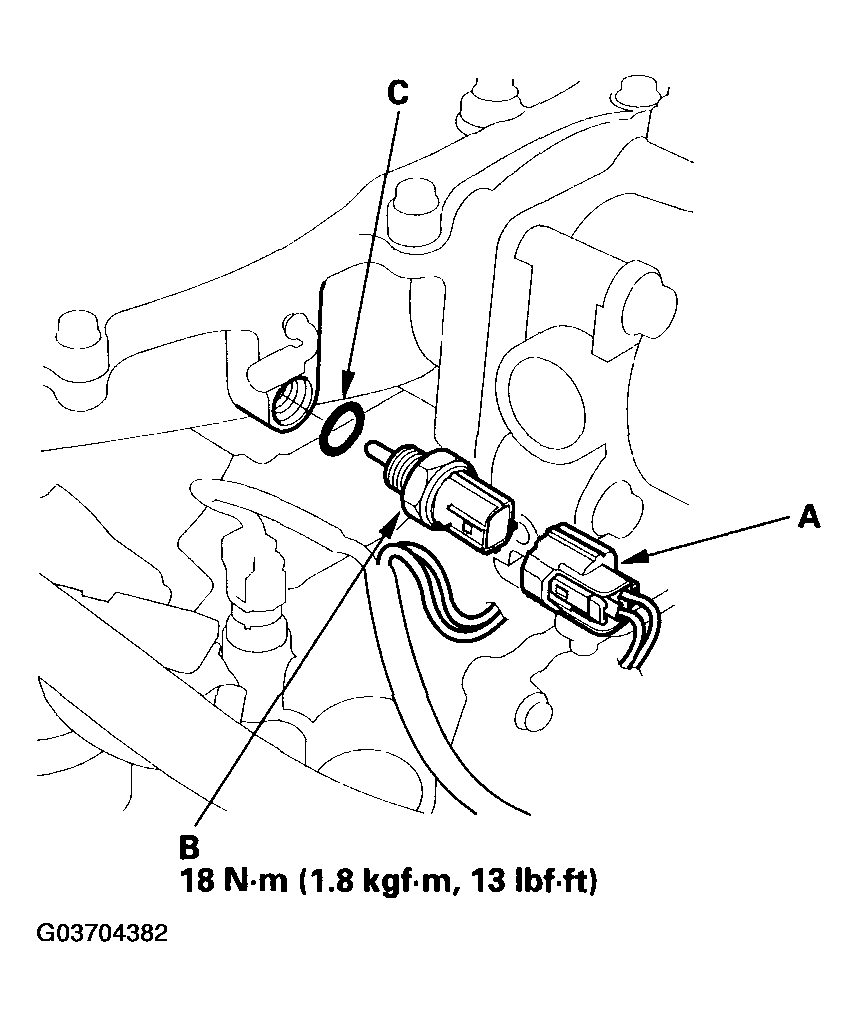

Fig 1: Disconnecting IAT Sensor 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the IAT sensor (B).
Install the sensor in the reverse order of removal with a new O-ring (C).
