Power Sliding Door Module

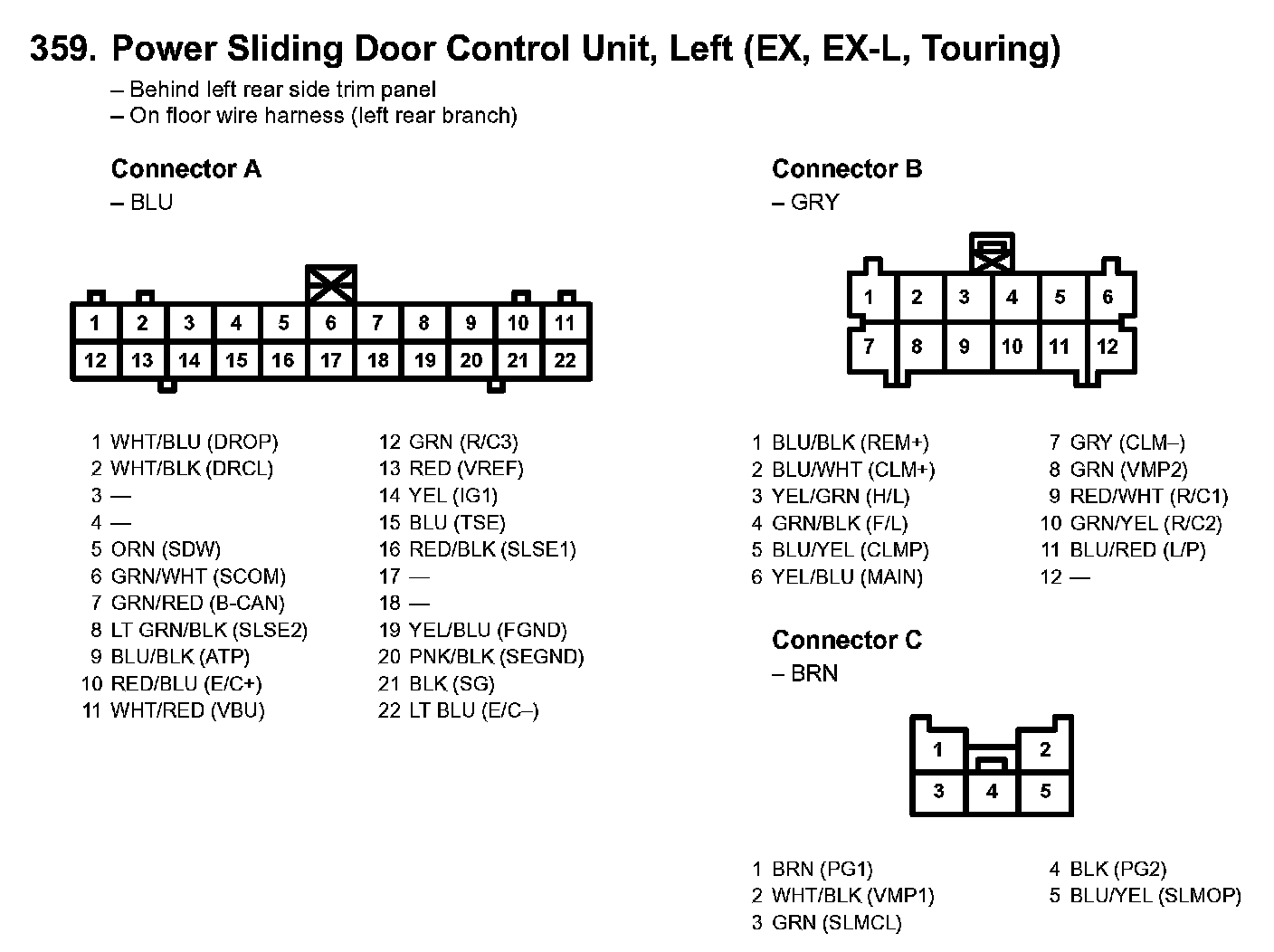

359. Power Sliding Door Control Unit, Left (EX, EX-L, Touring):

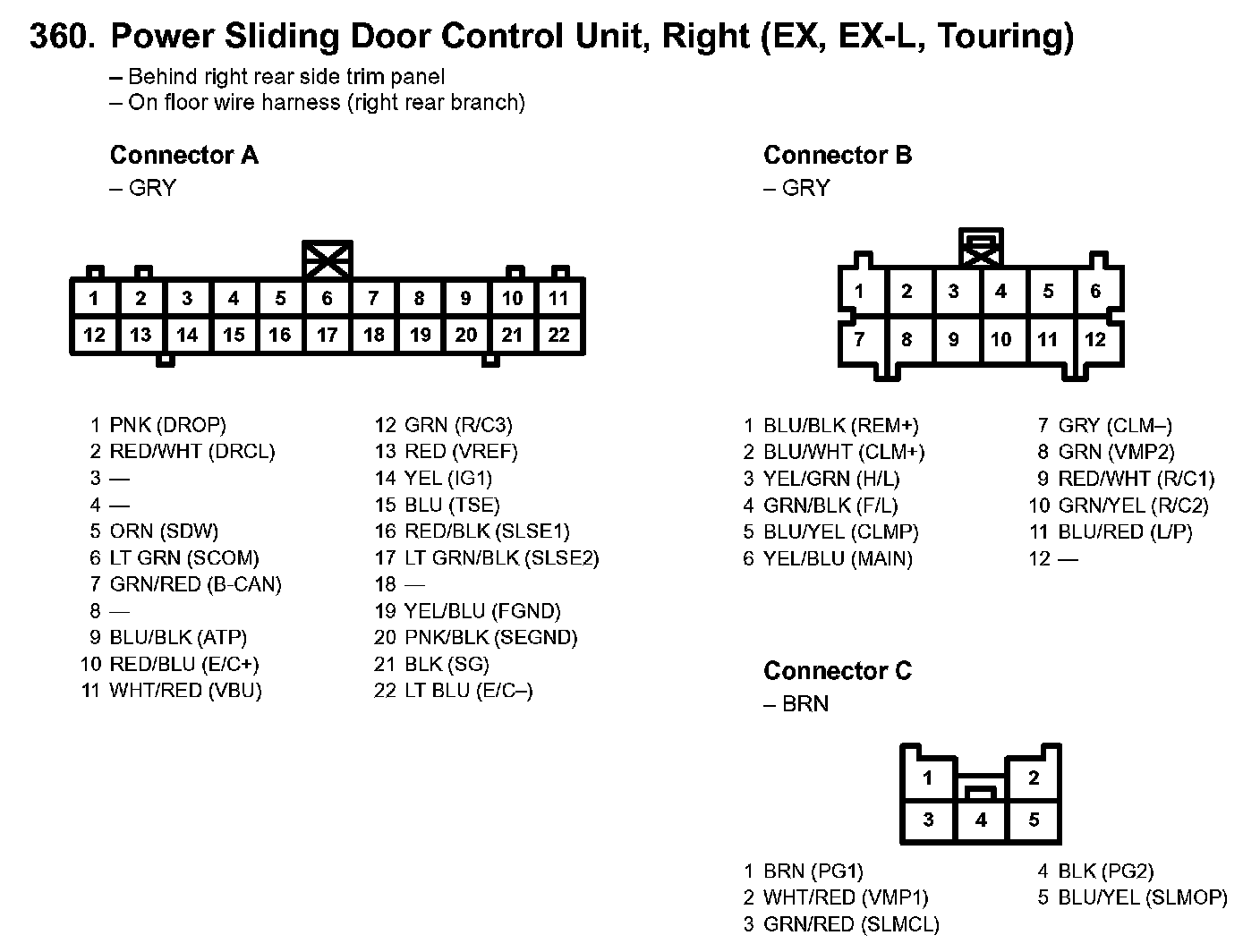

360. Power Sliding Door Control Unit, Right (EX, EX-L, Touring):
