Inputs and Outputs

System Description

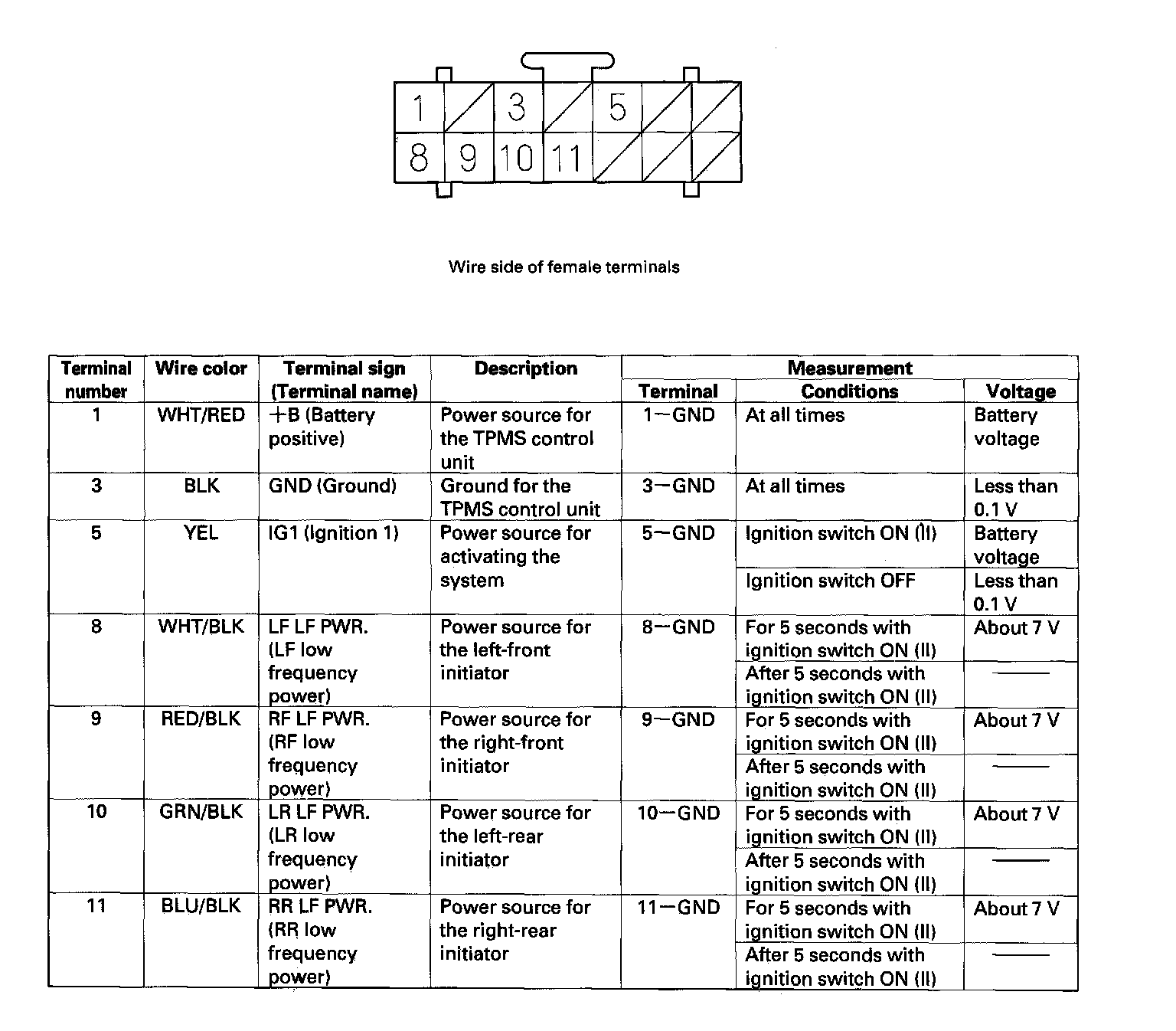

TPMS control Unit Inputs and Outputs for Connector A (14P)

TPMS control Unit Inputs and Outputs:

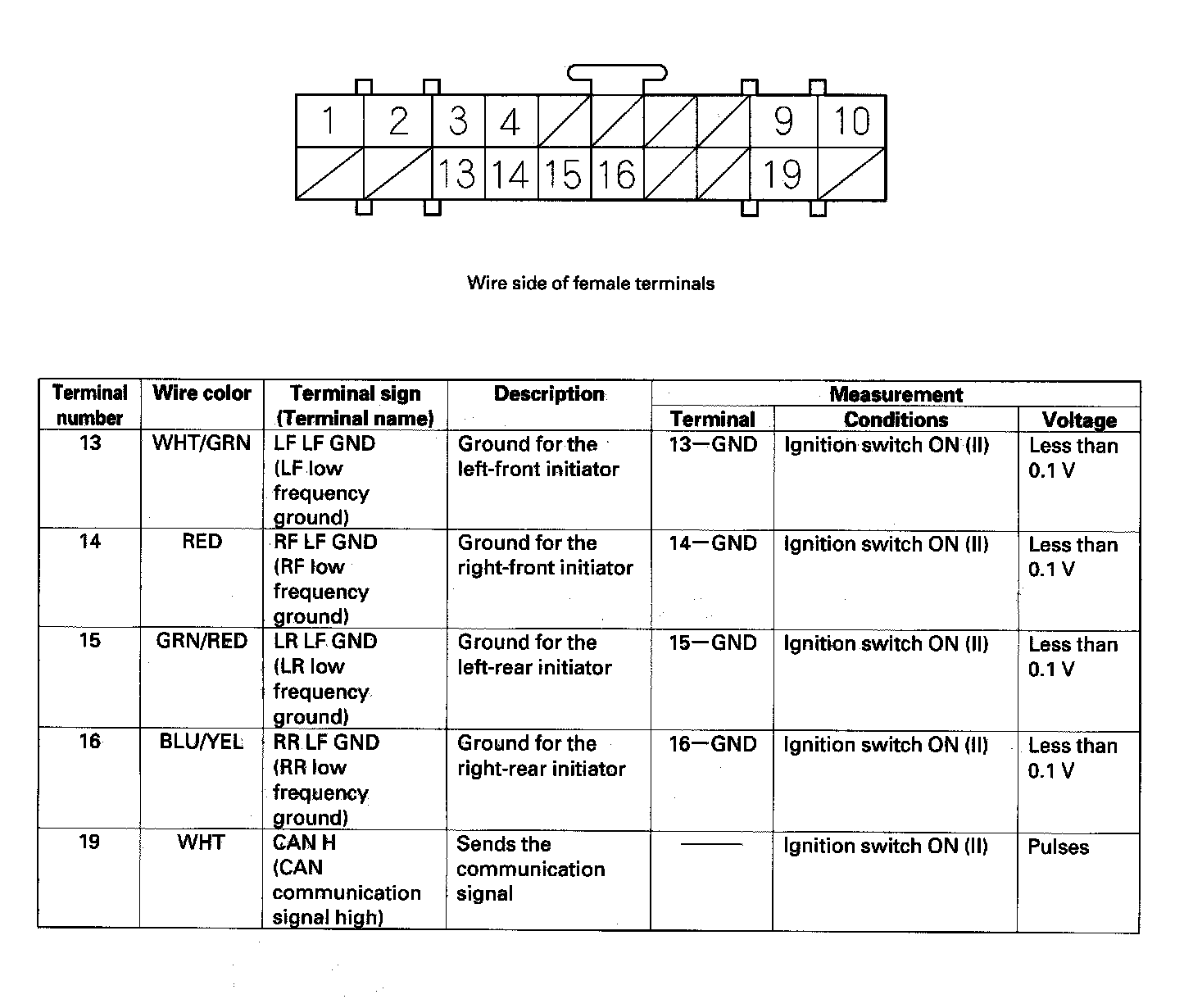

TPMS control Unit Inputs and Outputs for Connector B (20P)

TPMS control Unit Inputs and Outputs:

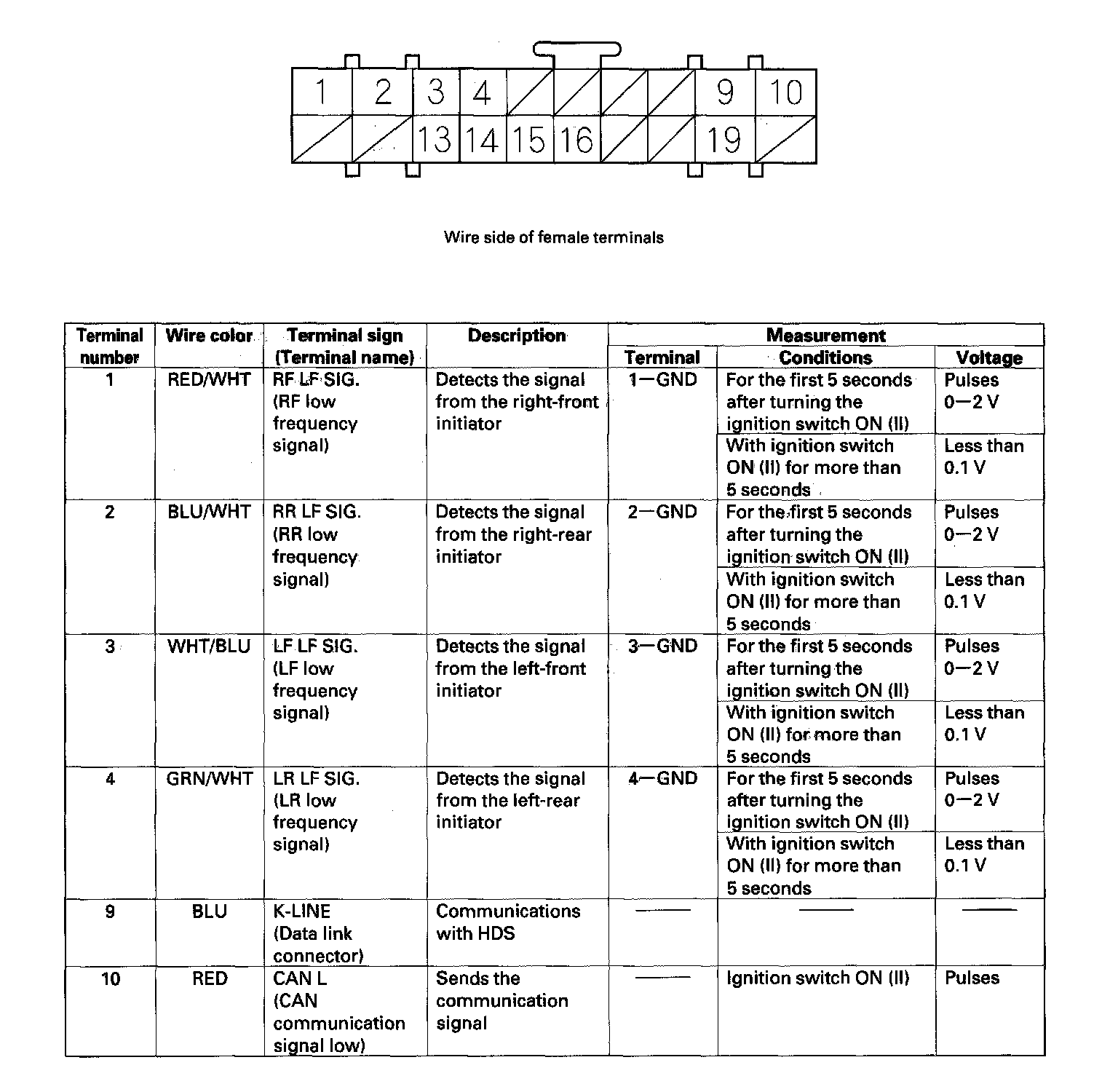

TPMS control Unit Inputs and Outputs for Connector B (20P)

TPMS control Unit Inputs and Outputs:
