Component Locations

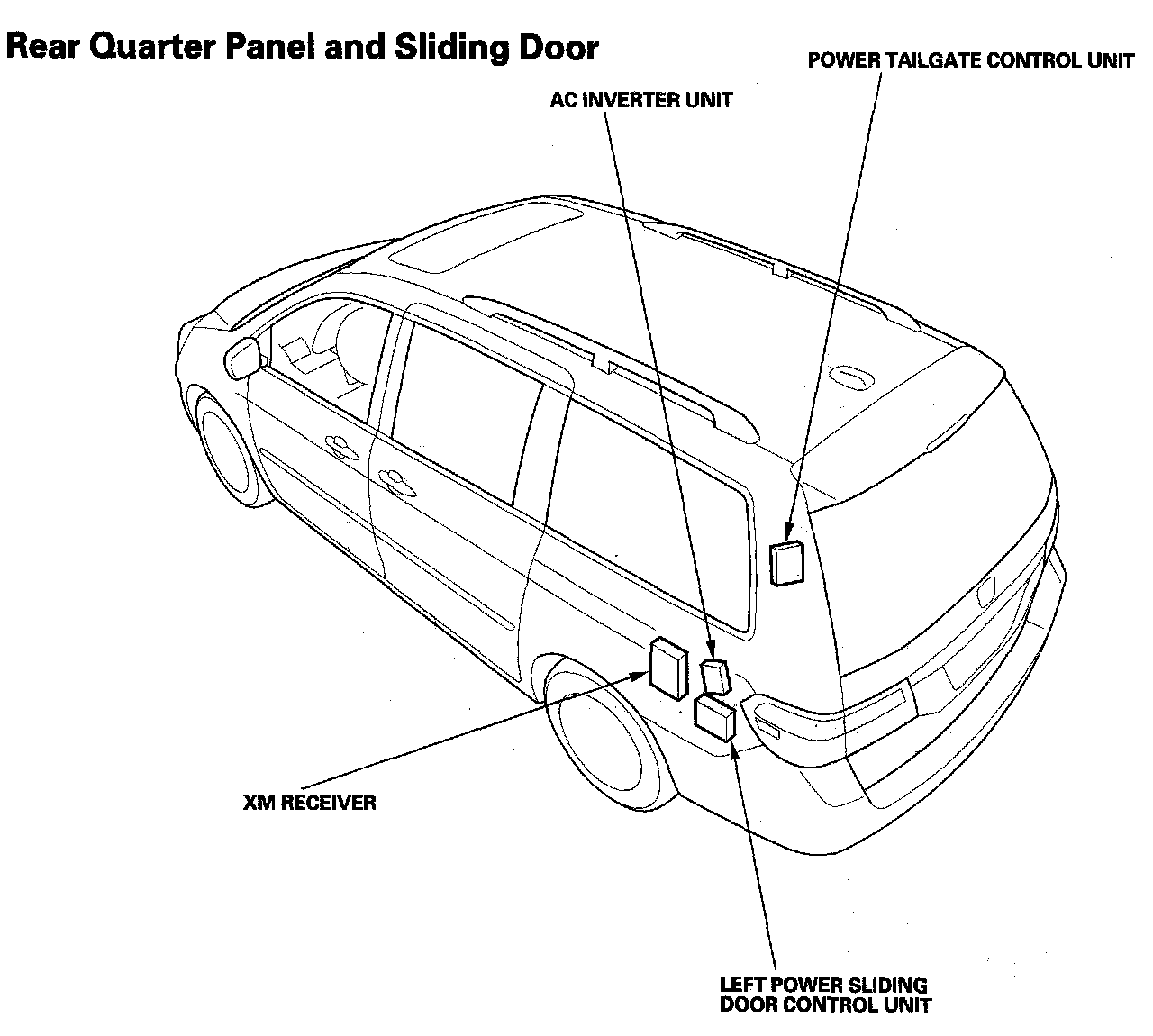

Relay And Control Unit Locations - Rear Quarter Panel And Sliding Door:

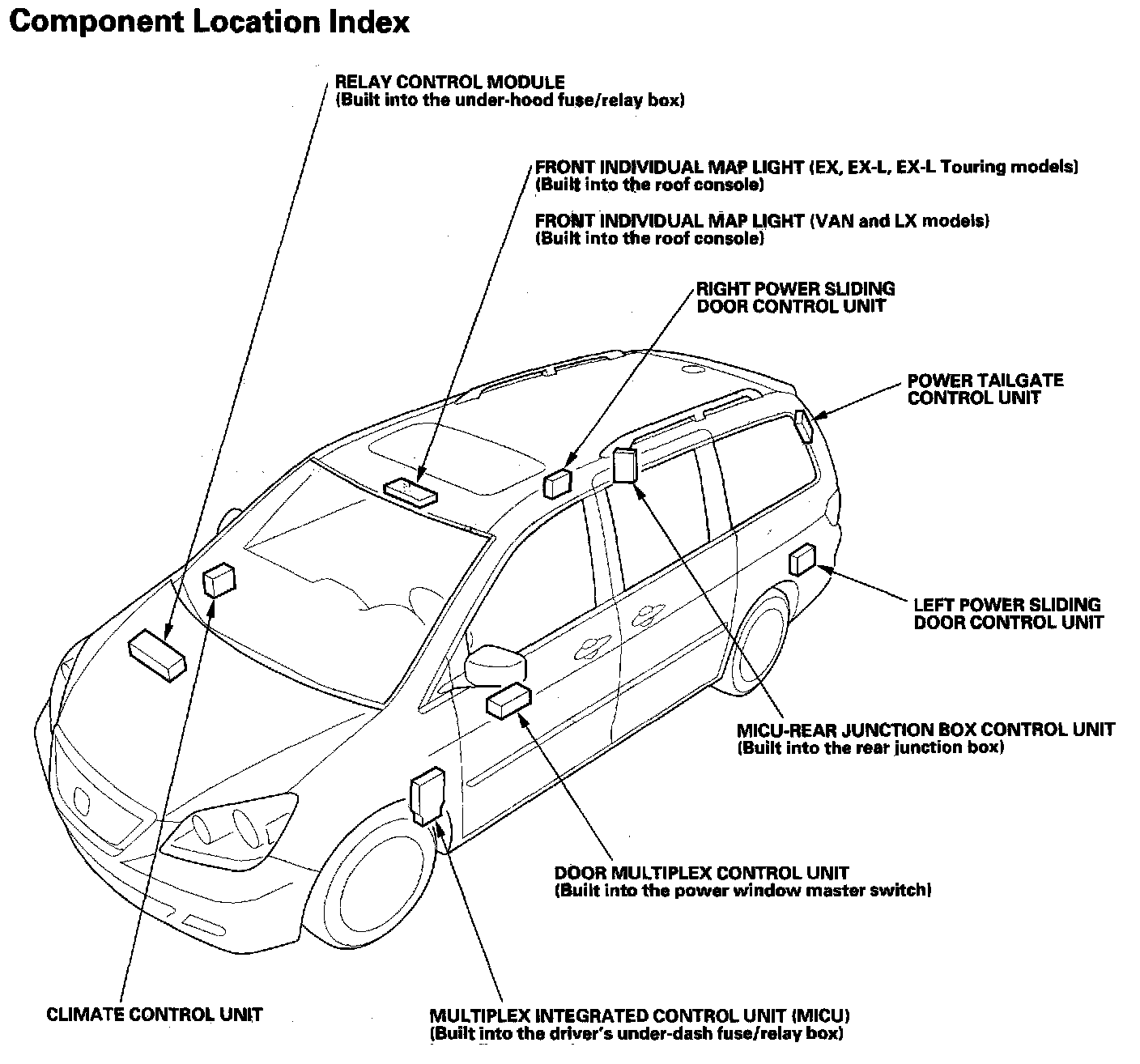

Multiplex Integrated Control System - Component Location Index:

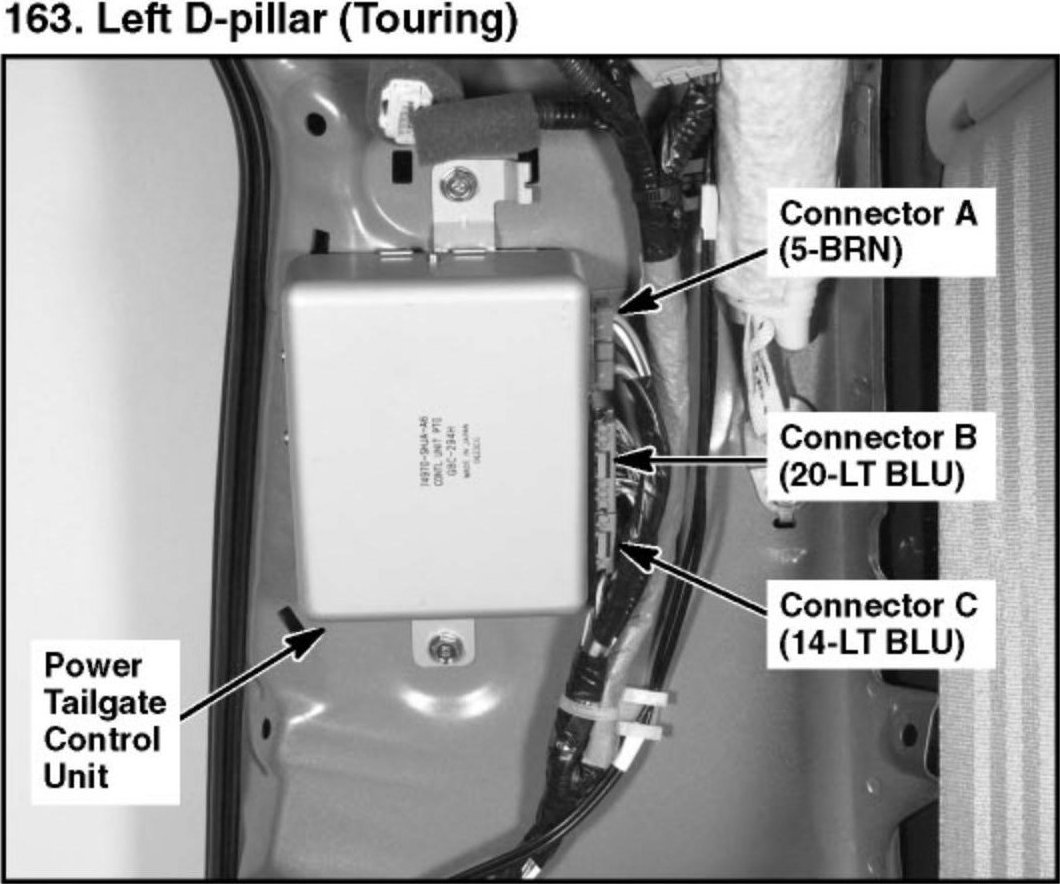

163. Left D-pillar (Touring):

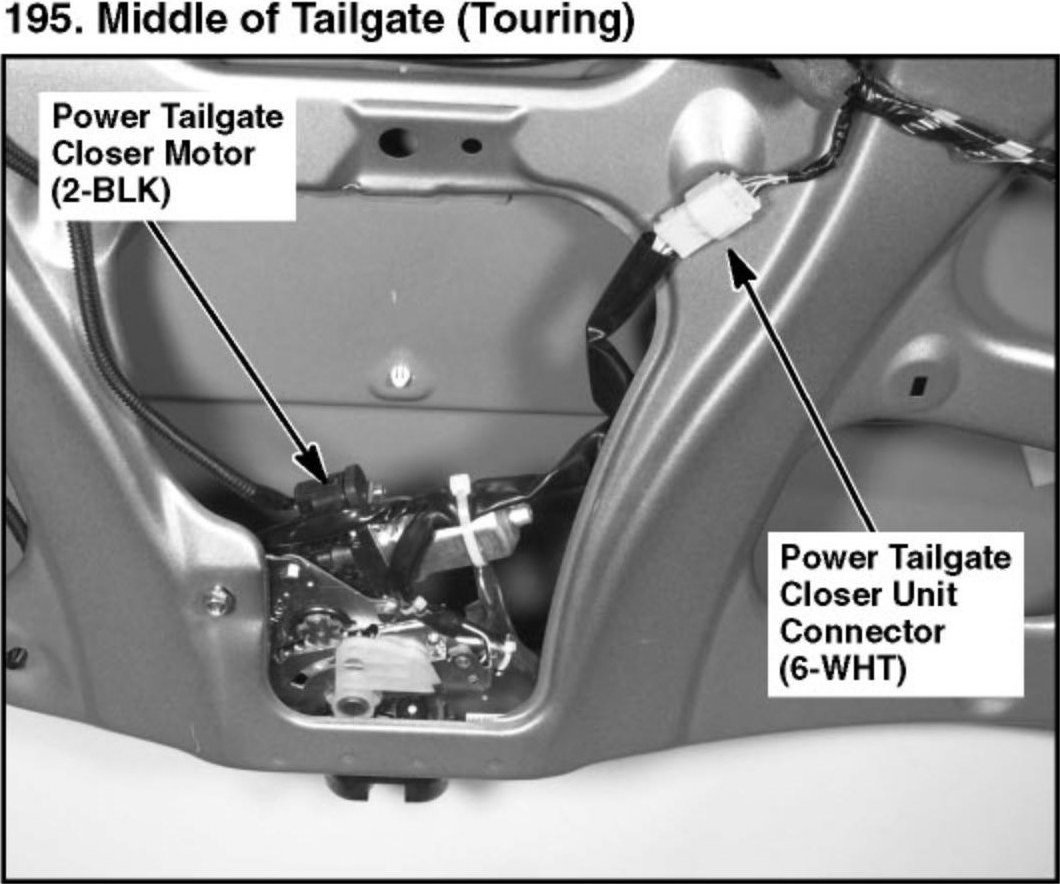

195. Middle of Tailgate (Touring):
