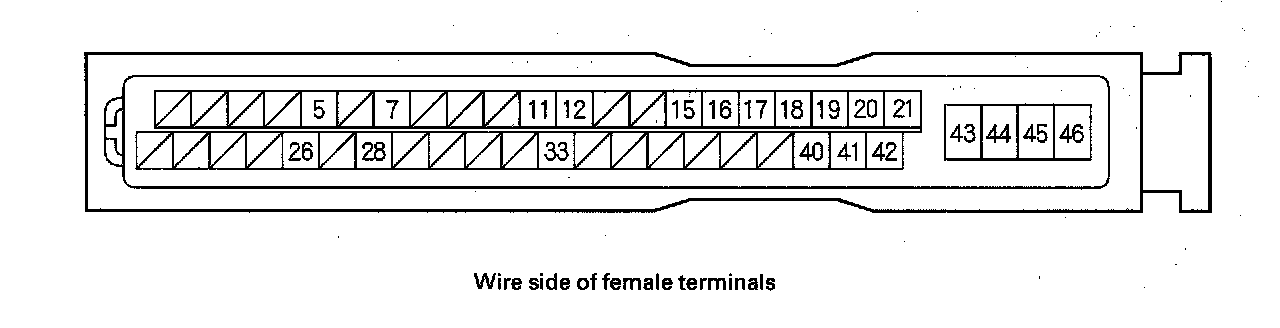

Electronic Brake Control Module

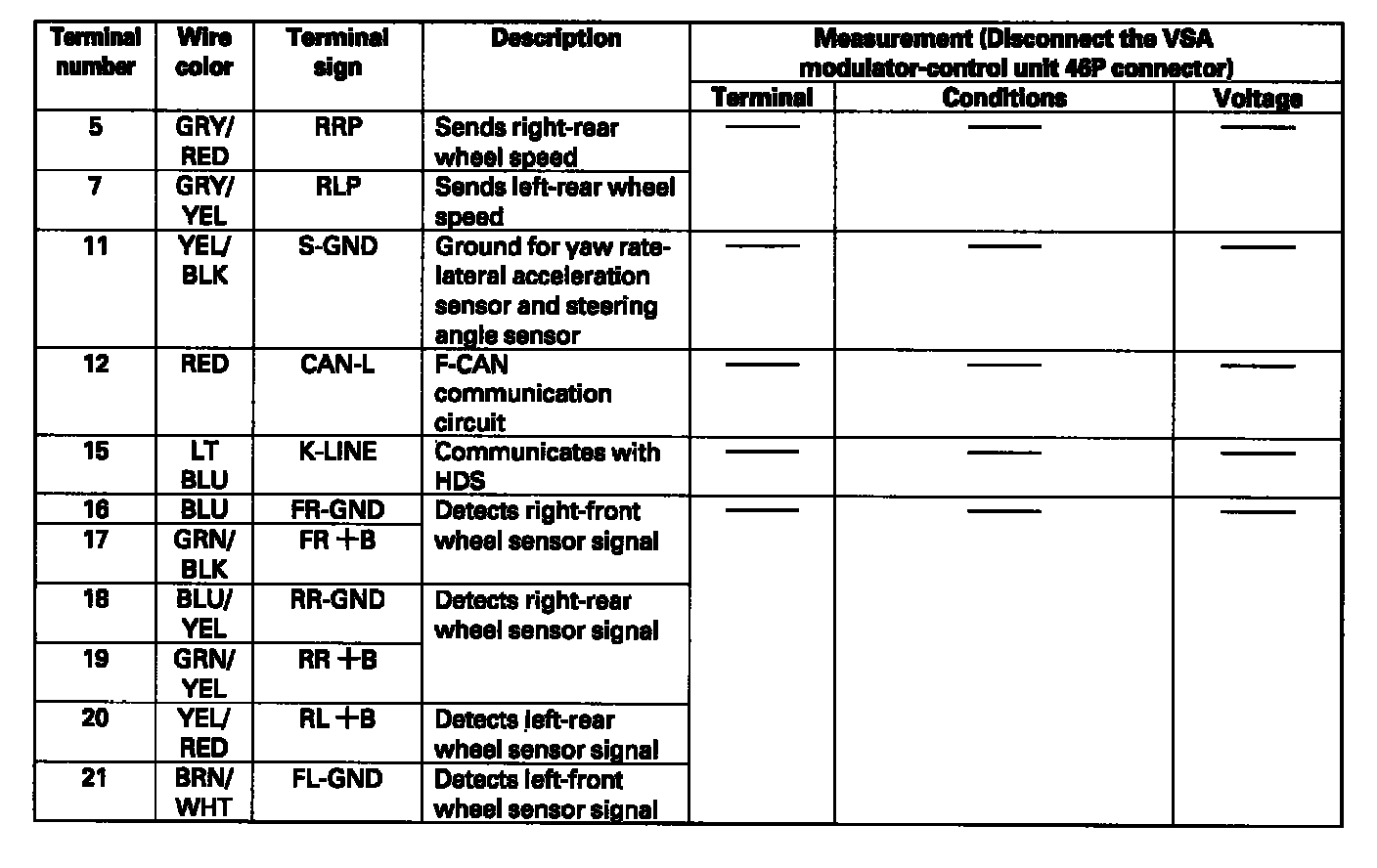

VSA Modulator-Control Unit Inputs and Outputs:

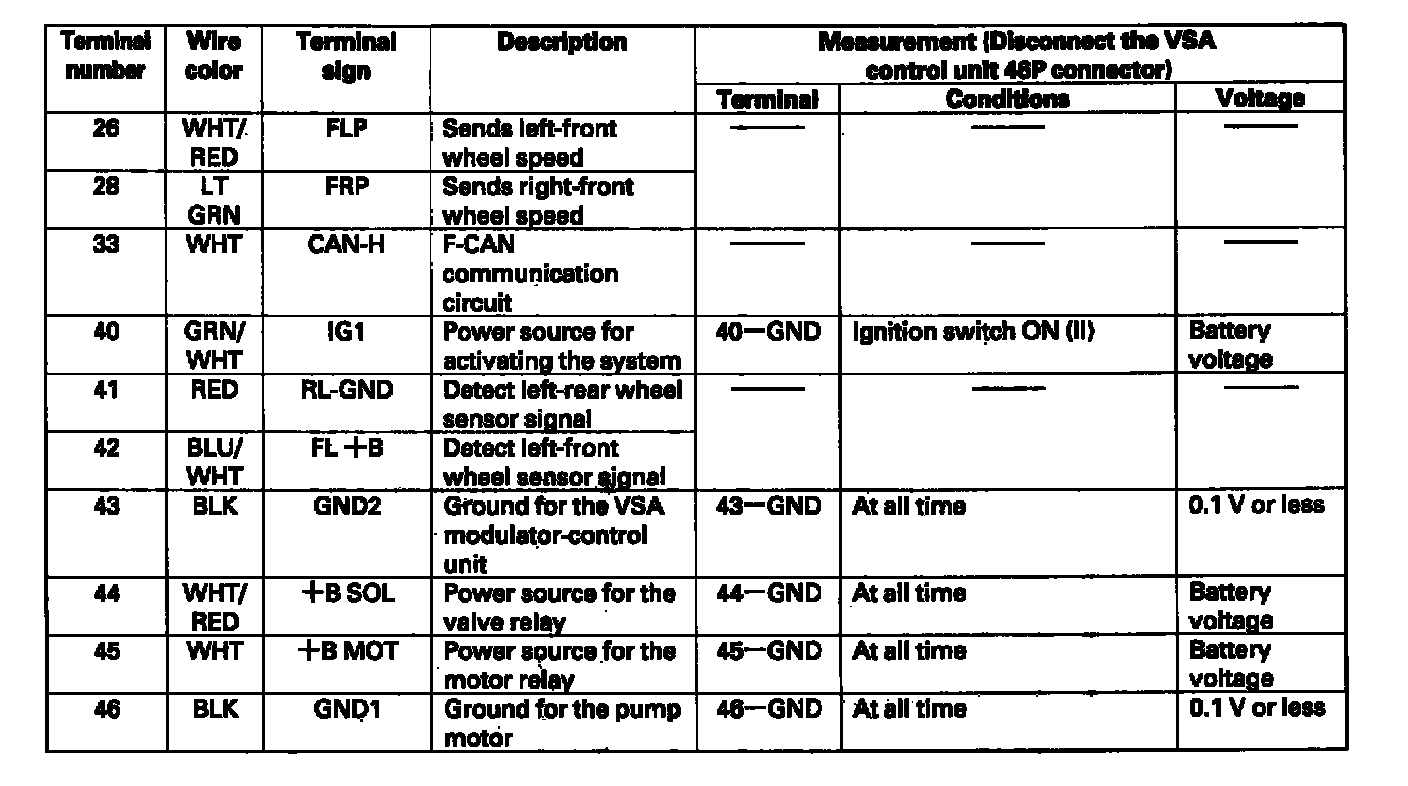

VSA Modulator-Control Unit Inputs and Outputs:



VSA Modulator-Control Unit Inputs and Outputs:
