Impact Sensor

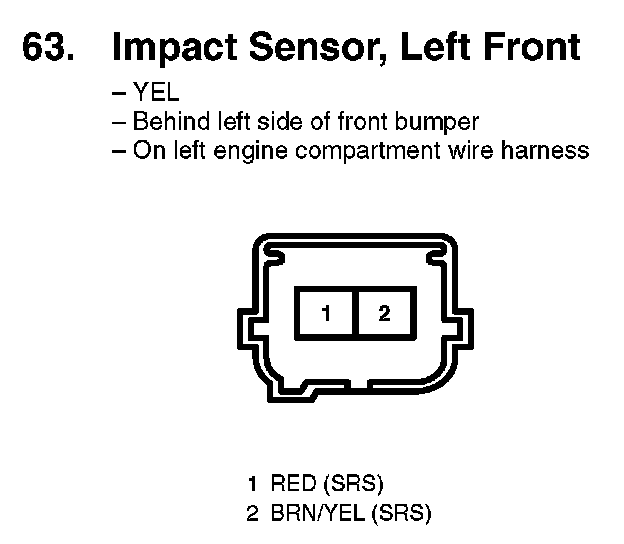

63. Impact Sensor, Left Front:

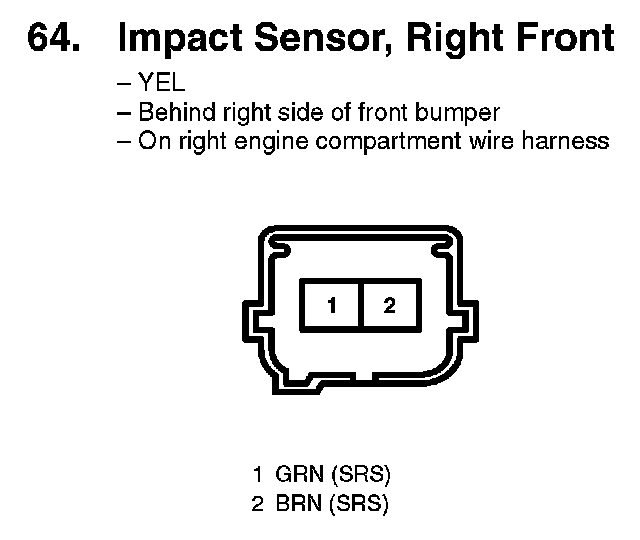

64. Impact Sensor, Right Front:



84. Side Impact Sensor (2nd), Left:



85. Side Impact Sensor (2nd), Right:

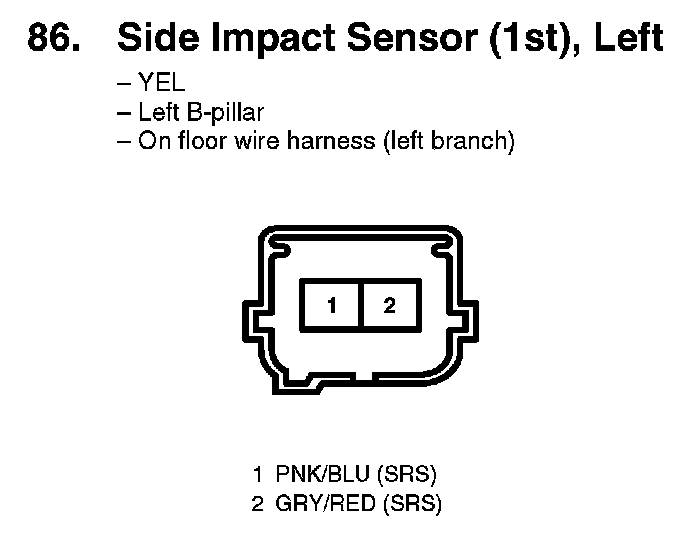

86. Side Impact Sensor (1st), Left:

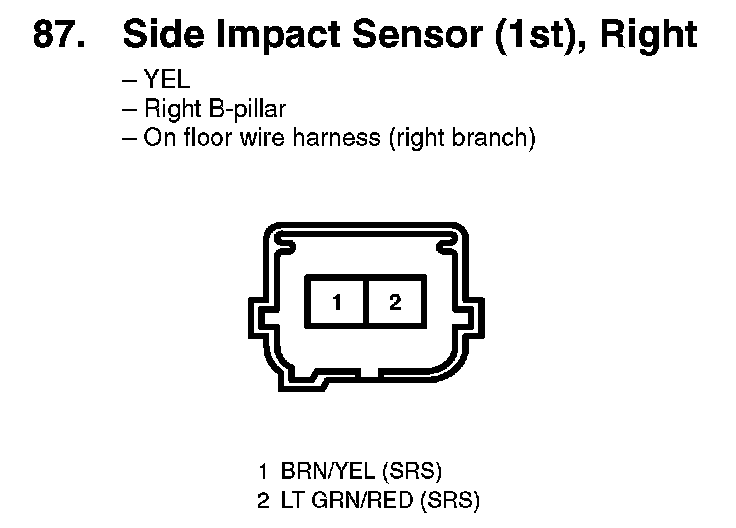

87. Side Impact Sensor (1st), Right:
