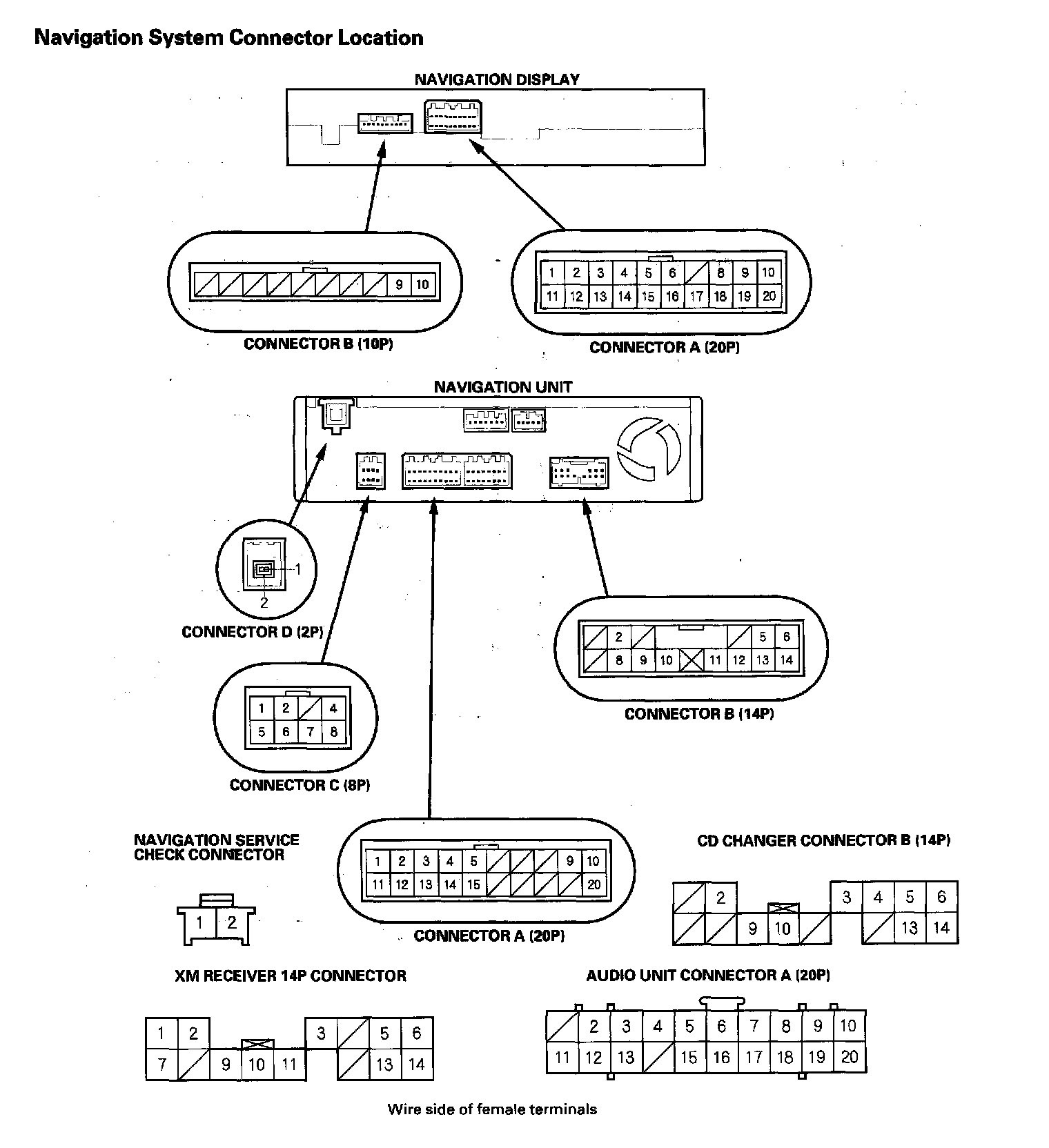

Inputs and Outputs For Connectors

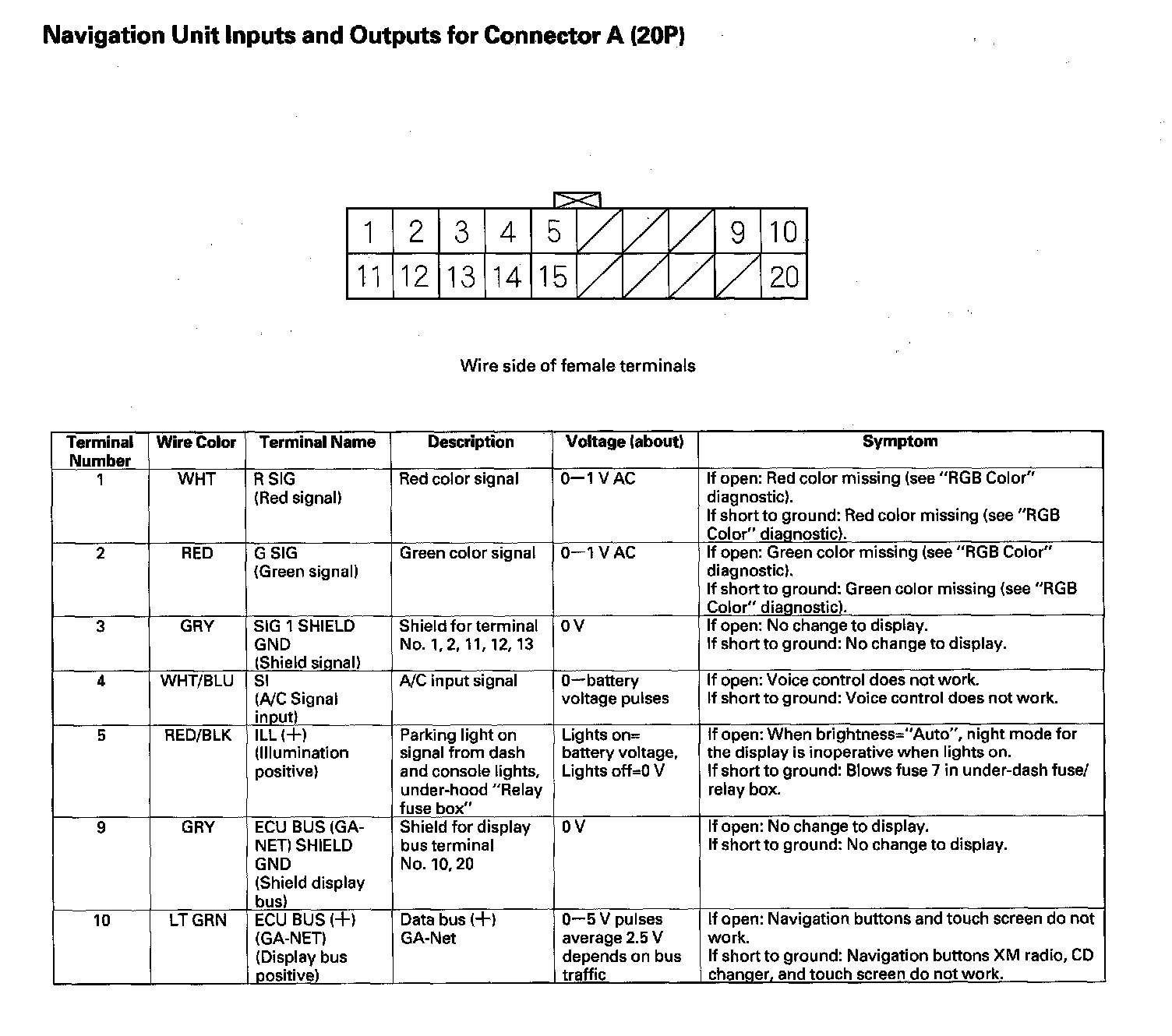

Navigation Unit Inputs And Outputs For Connector A (20P) Part 1:

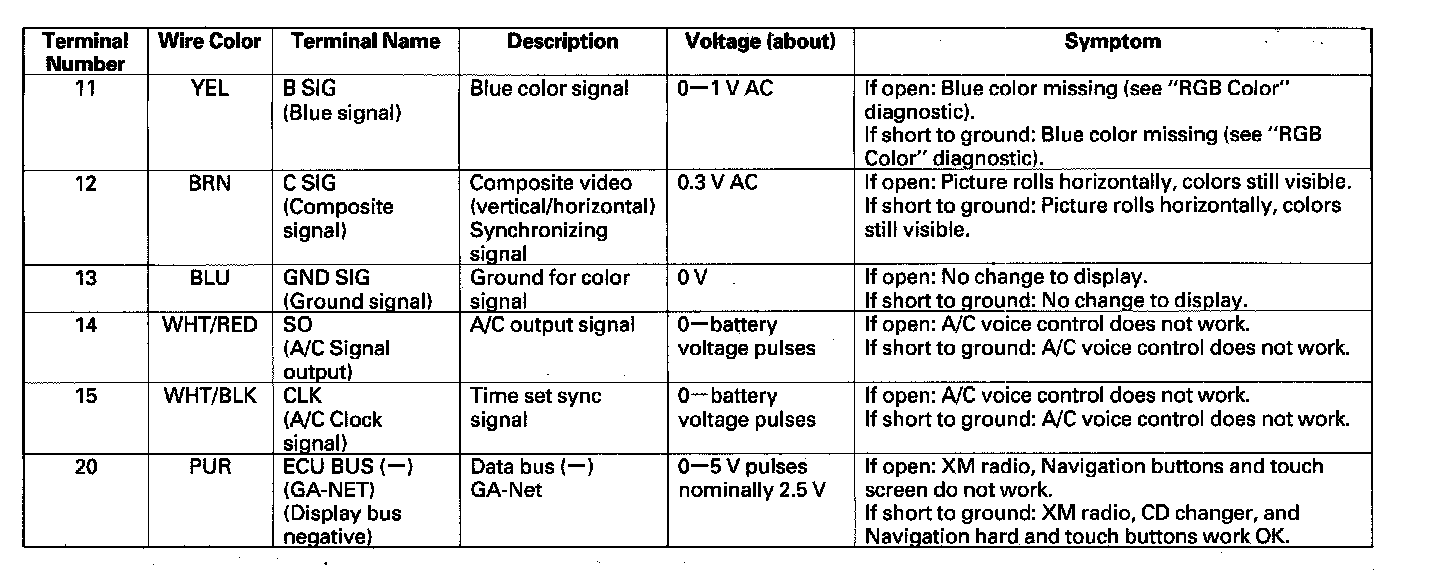

Navigation Unit Inputs And Outputs For Connector A (20P) Part 2:

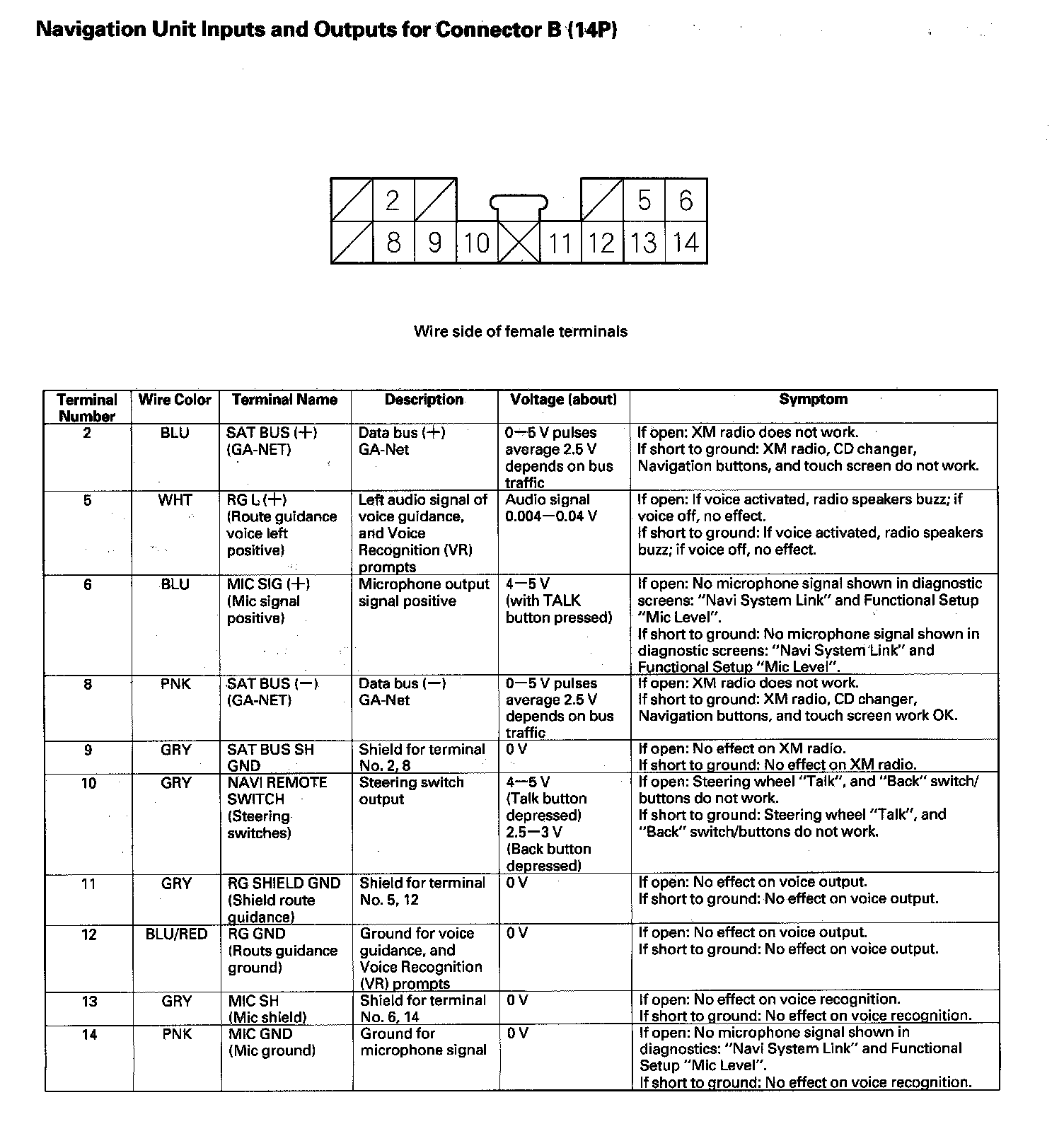

Navigation Unit Inputs And Outputs For Connector B (14P):

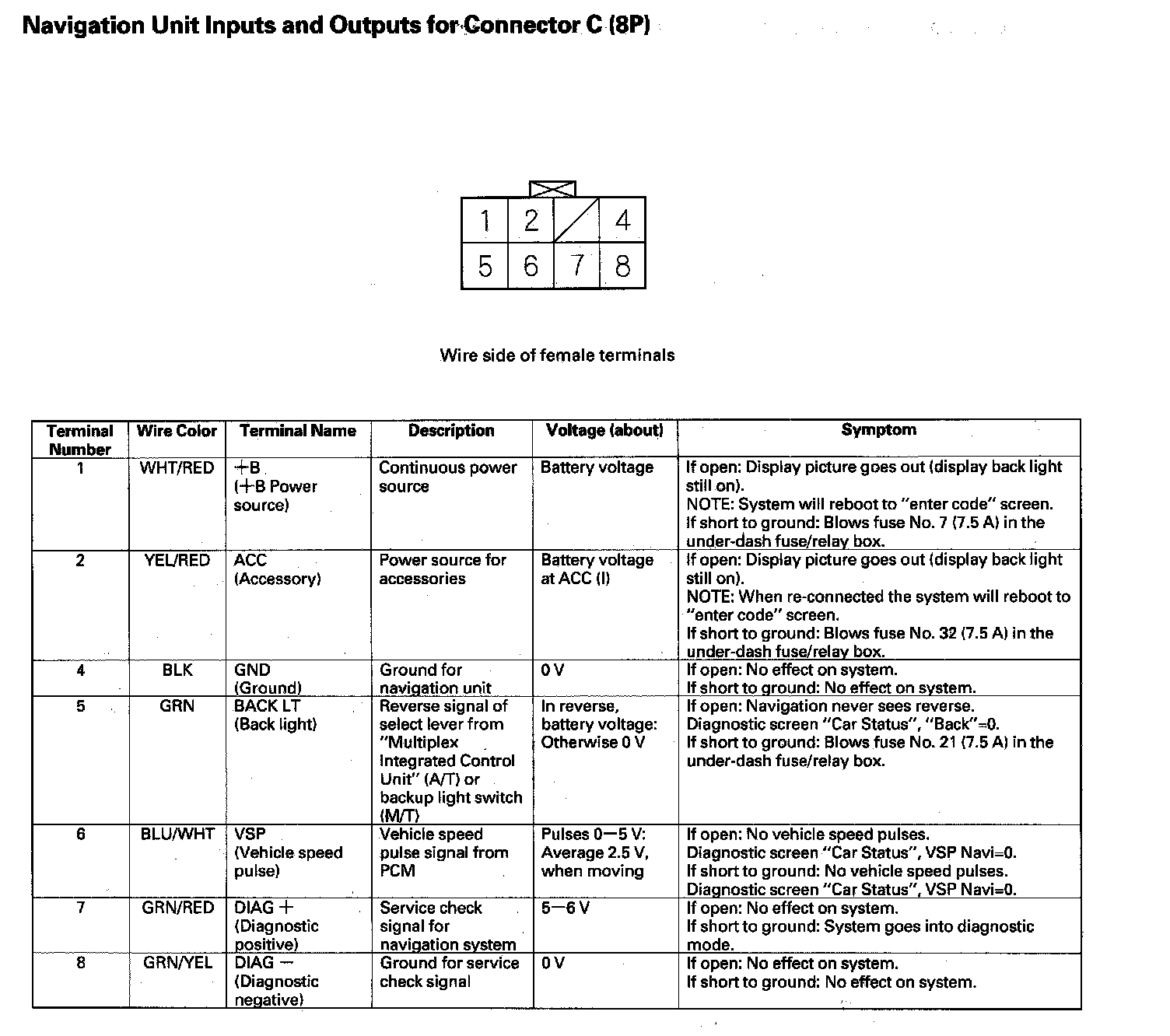

Navigation Unit Inputs And Outputs For Connector C (8P):

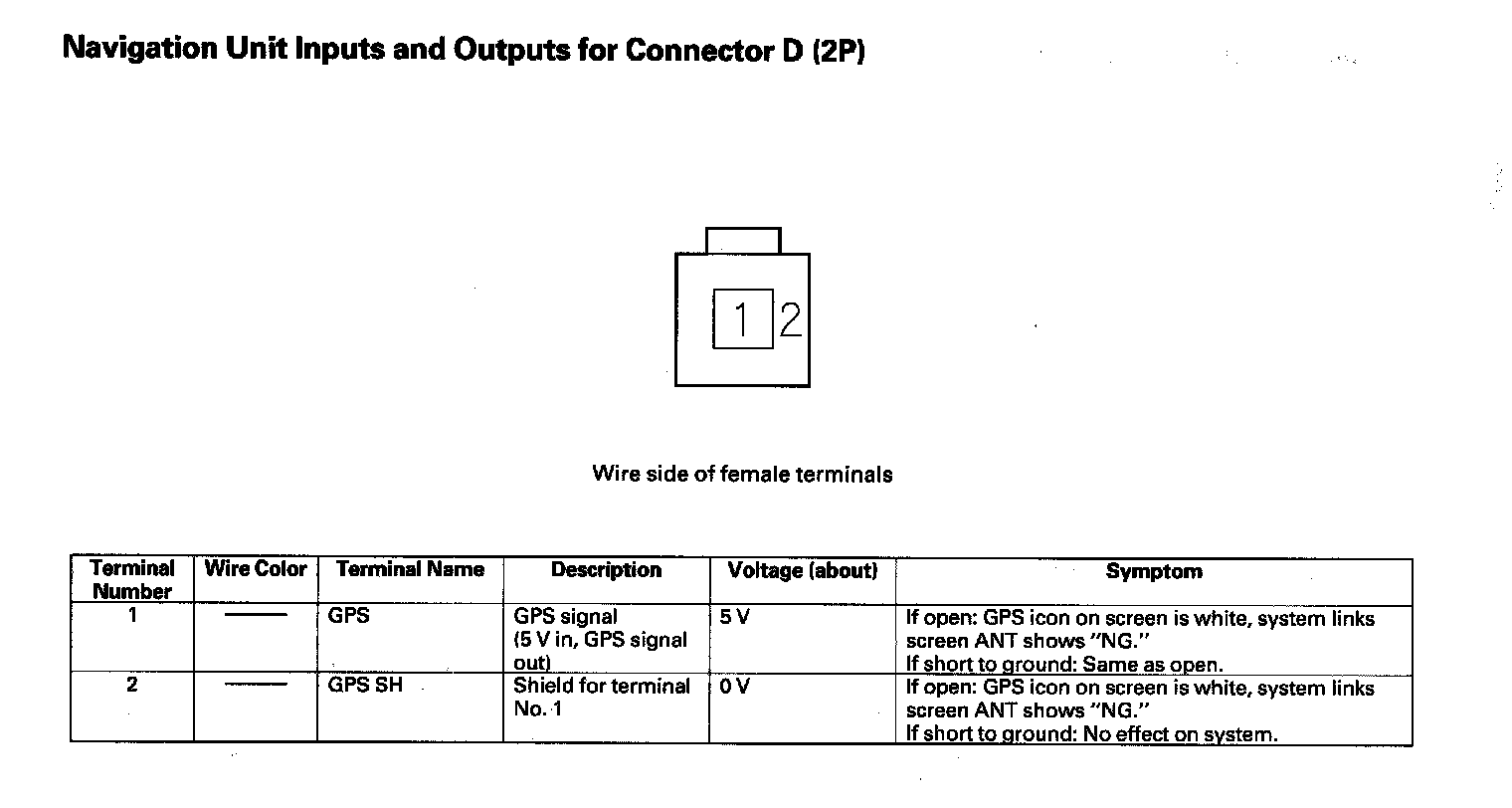

Navigation Unit Inputs And Outputs For Connector D (2P):

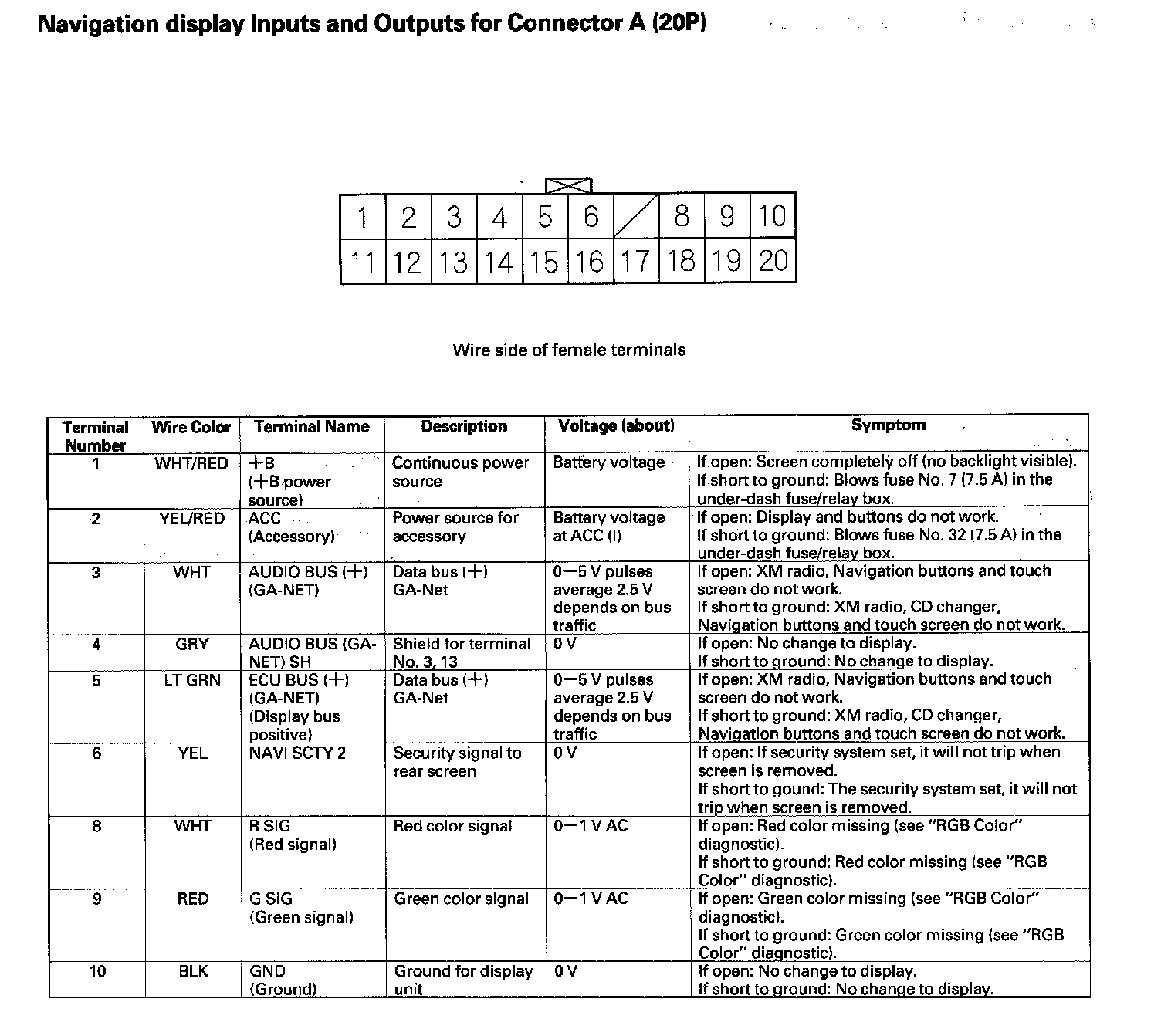

Navigation Display Inputs And Outputs For Connector A (20P) Part 1:



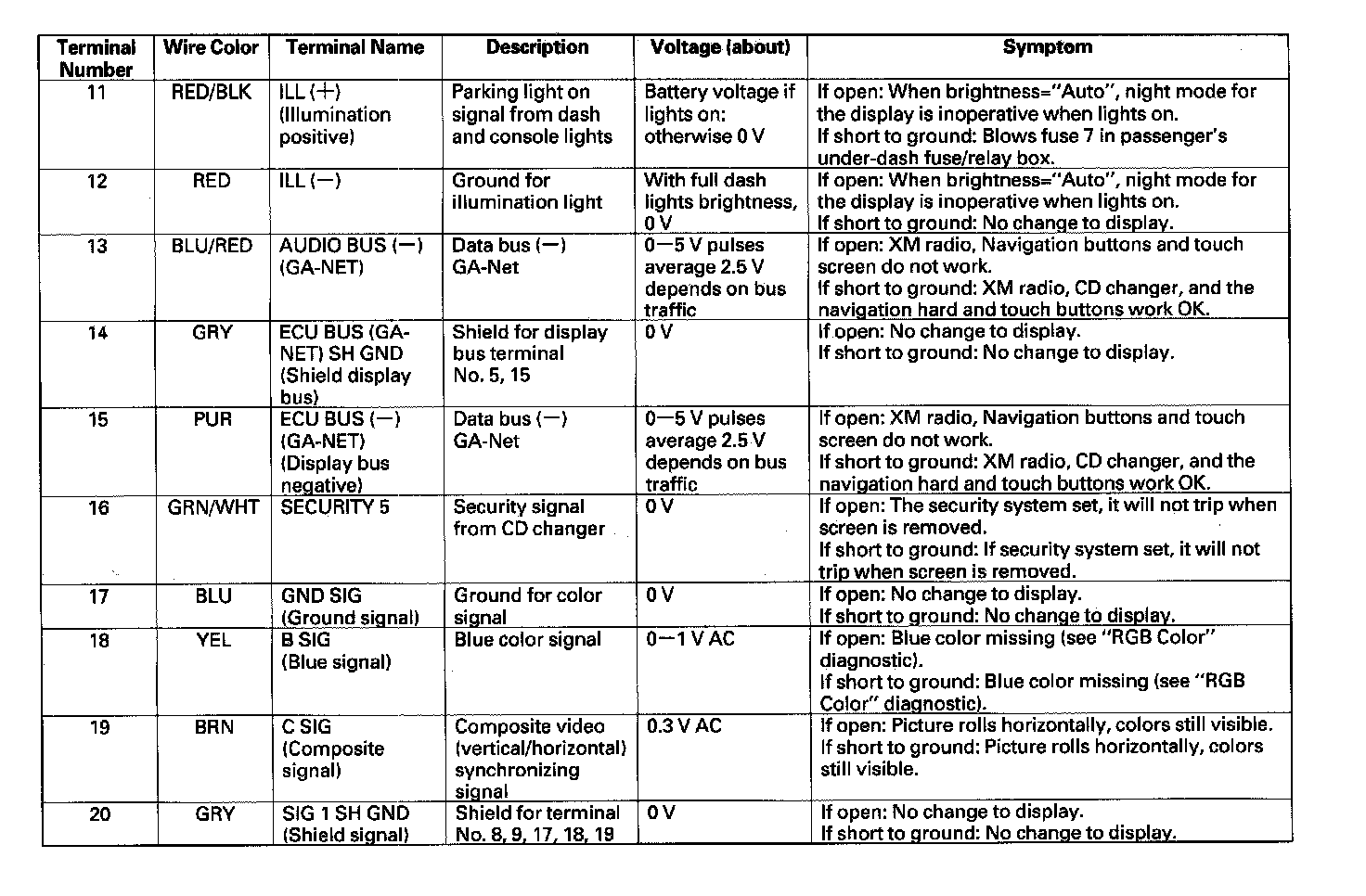

Navigation Display Inputs And Outputs For Connector A (20P) Part 2:

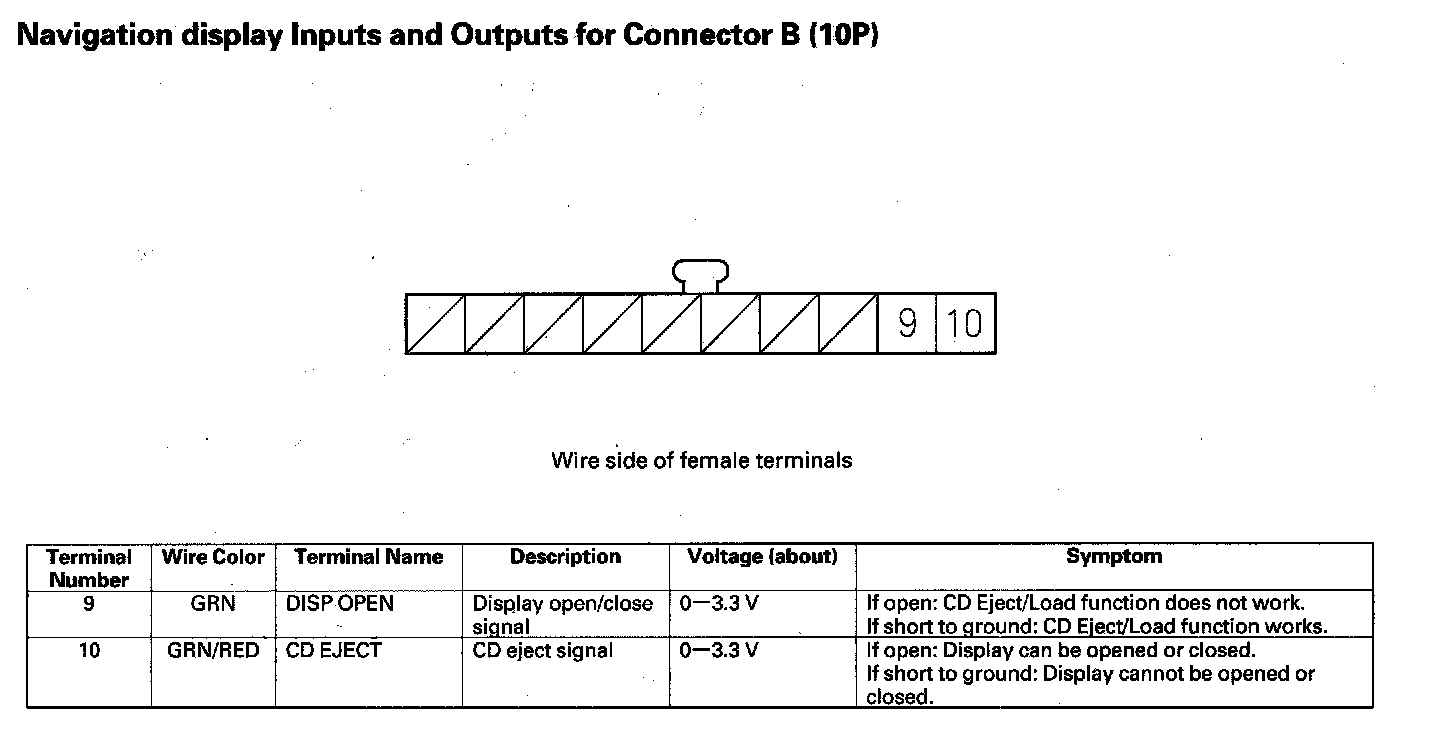

Navigation Display Inputs And Outputs For Connector B (10P):
