Component Tests and General Diagnostics

Cruise Control Input Test

2006 Model

1. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC).
2. Turn the ignition switch ON (II).
3. Make sure the HDS communicates with the vehicle and the engine control module (ECM). If it does not, troubleshoot the DLC circuit.
4. Go to PGM-FI, and check for DTCs.

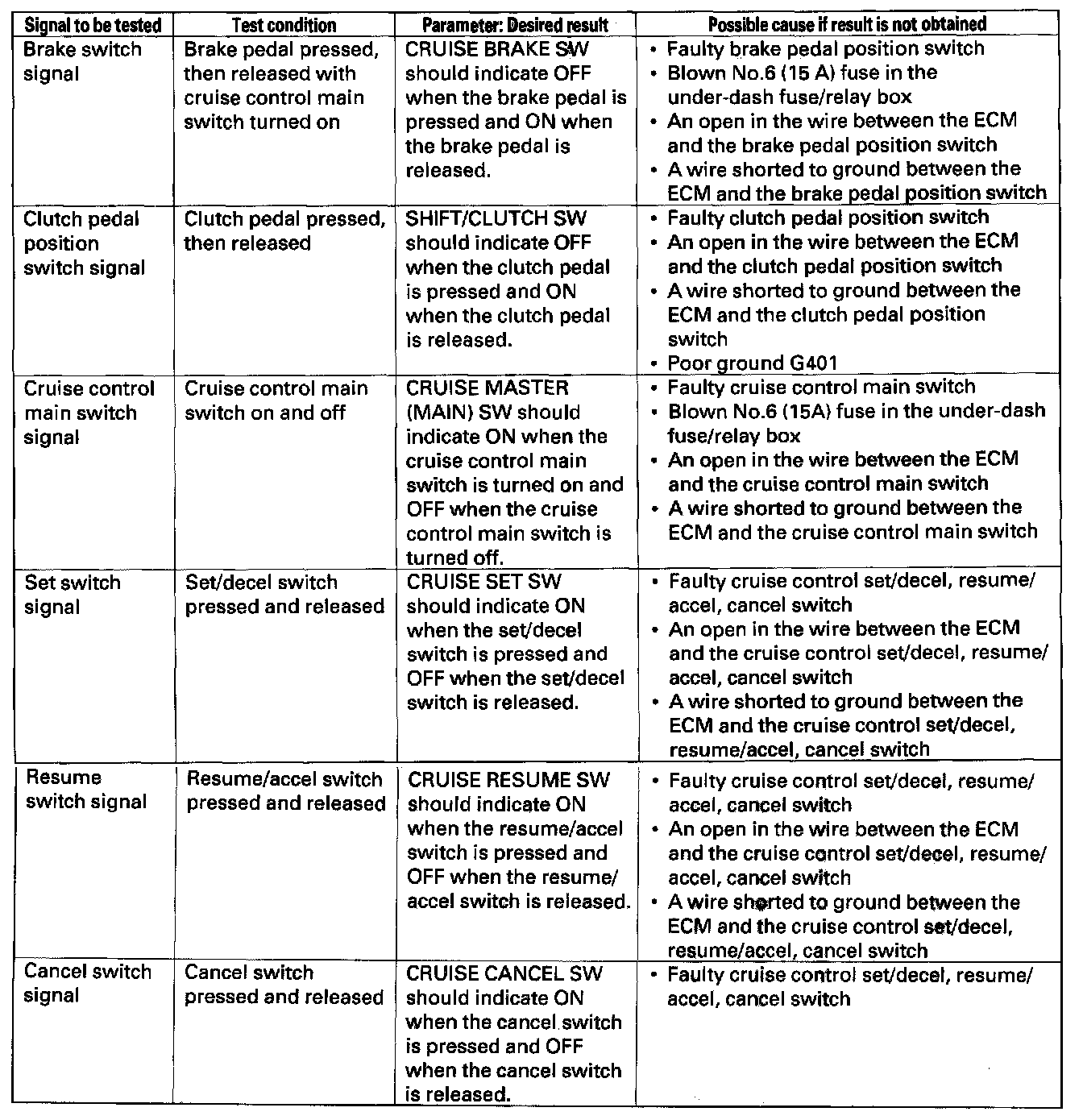

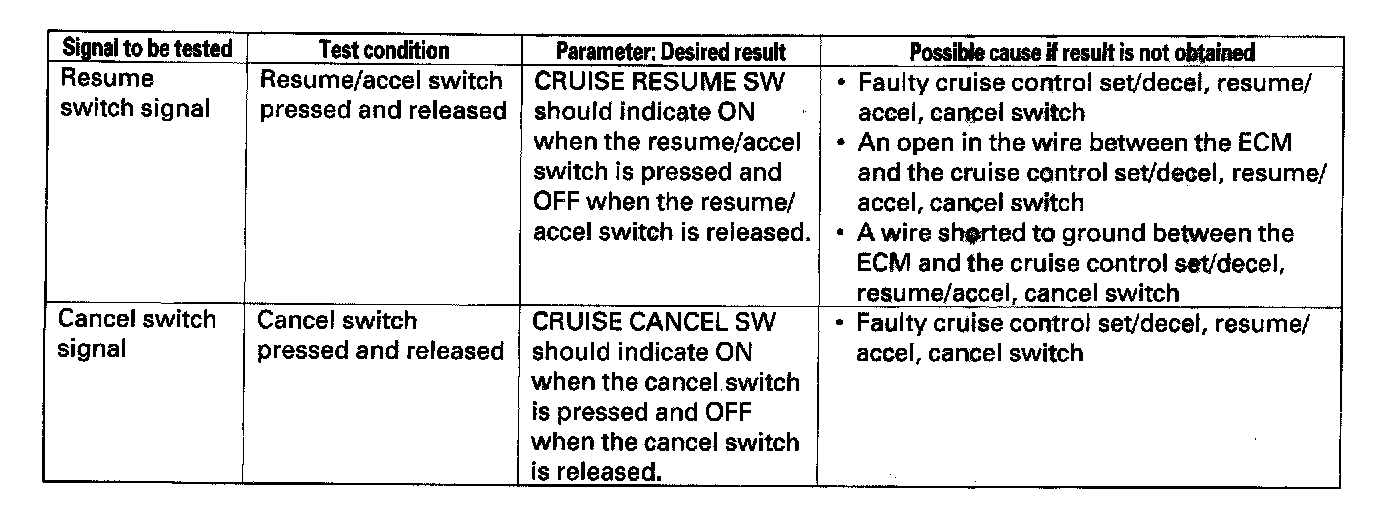

5. Do the mentioned tests while monitoring parameters in the PGM-FI DATA LIST with the HDS.
