Air Cleaner Housing: Service and Repair

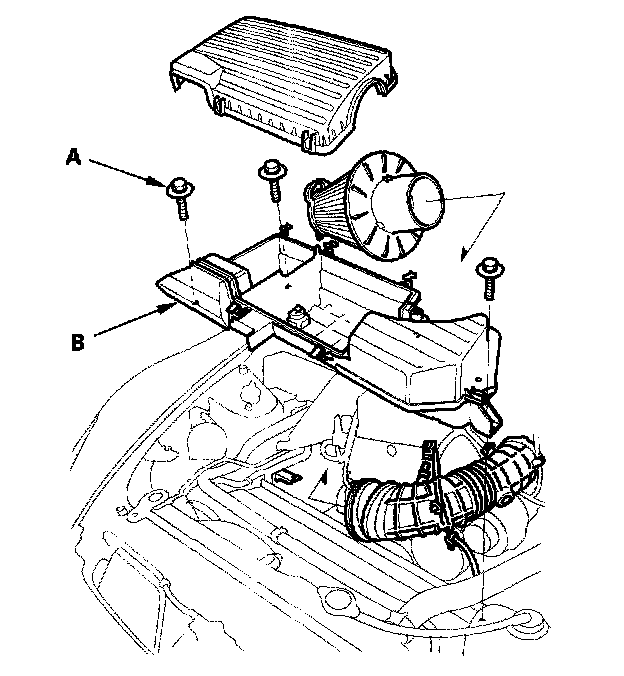

Air Cleaner Removal/Installation

1. Remove the air cleaner element.




2. Remove the bolts (A).
3. Remove the air cleaner (B).
4. Install the parts in the reverse order of removal.
