Power Window Switch: Locations

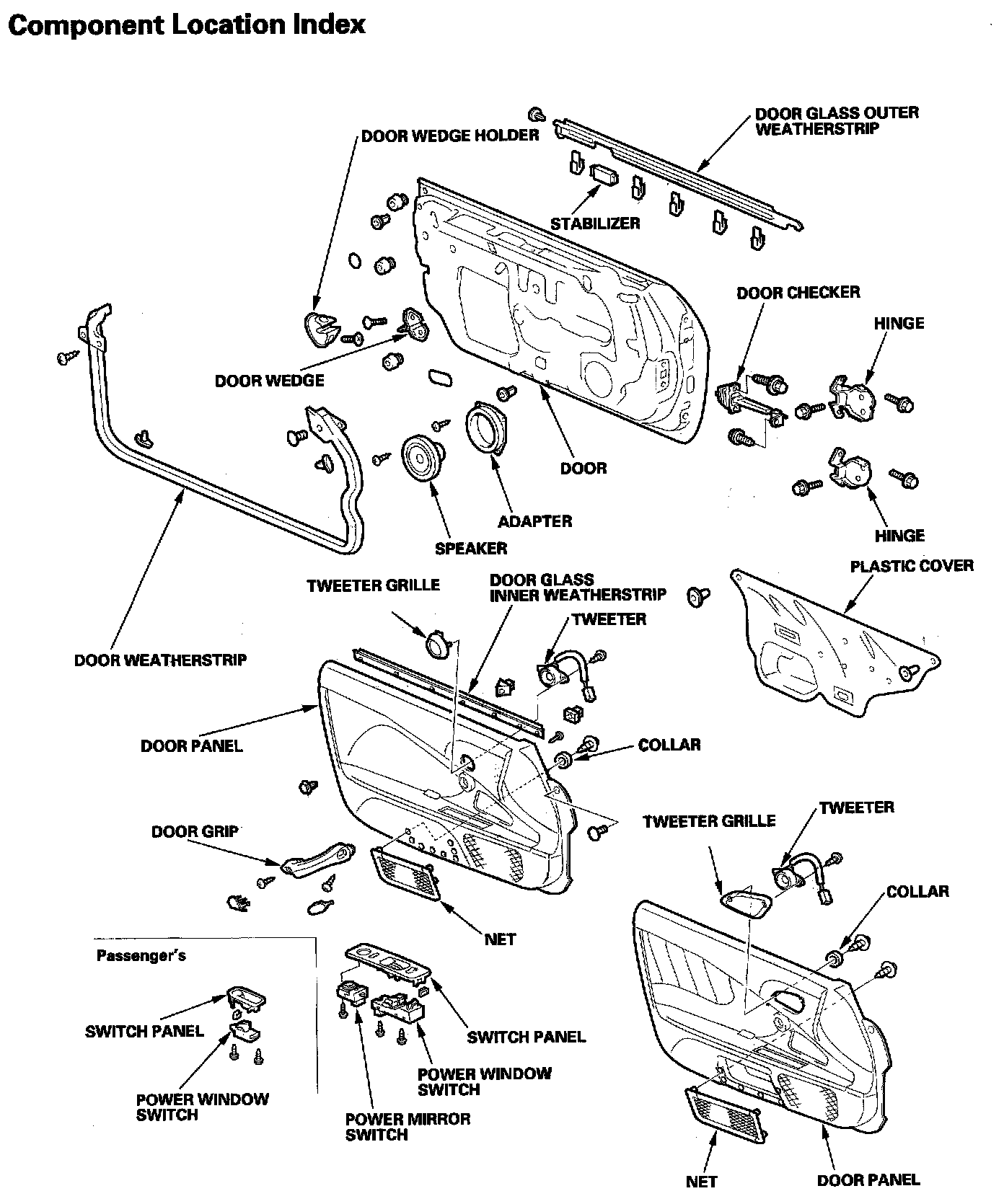

Doors - Component Location Index:

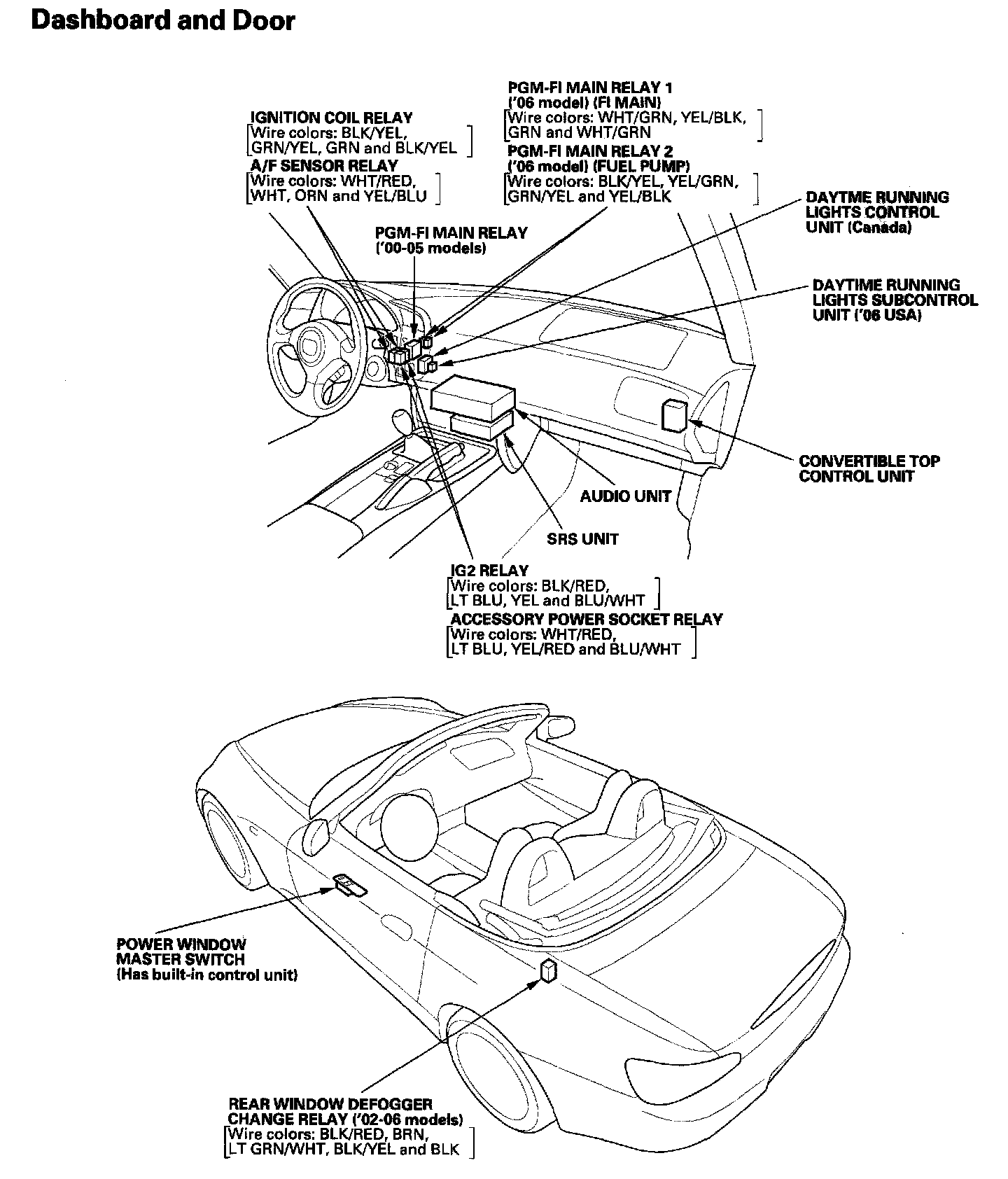

Relay And Control Unit Locations - Dashboard And Door:



Power Windows - Component Location Index:

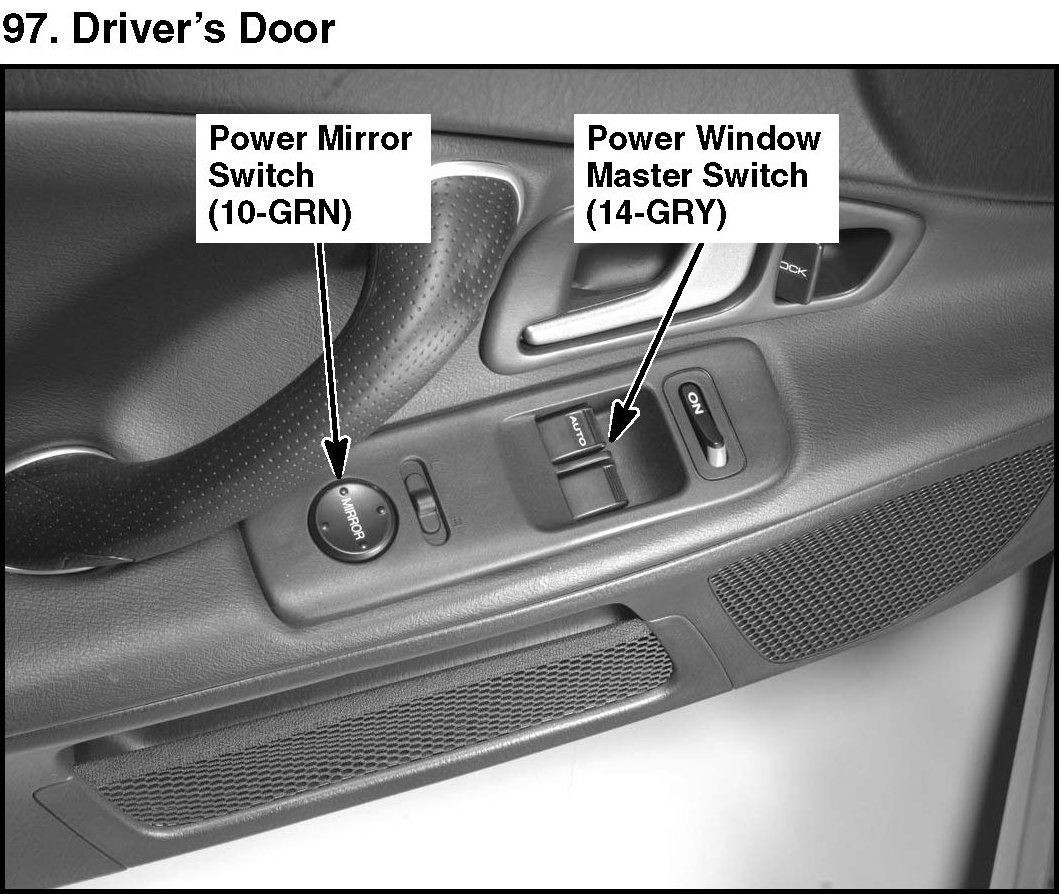

97. Driver's Door:

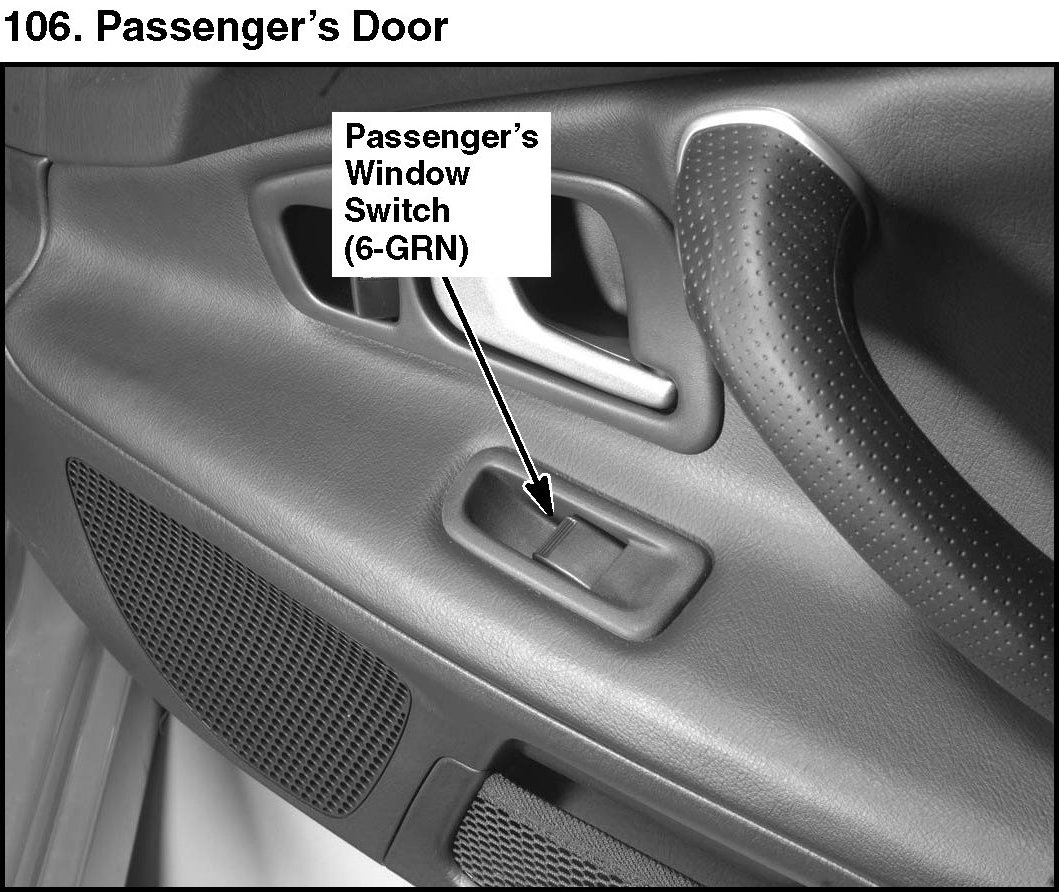

106. Passenger's Door:
