CMP Sensor A Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Remove the EGR valve (see EGR VALVE REPLACEMENT ).
  3. Disconnect the CMP sensor A connector (A).

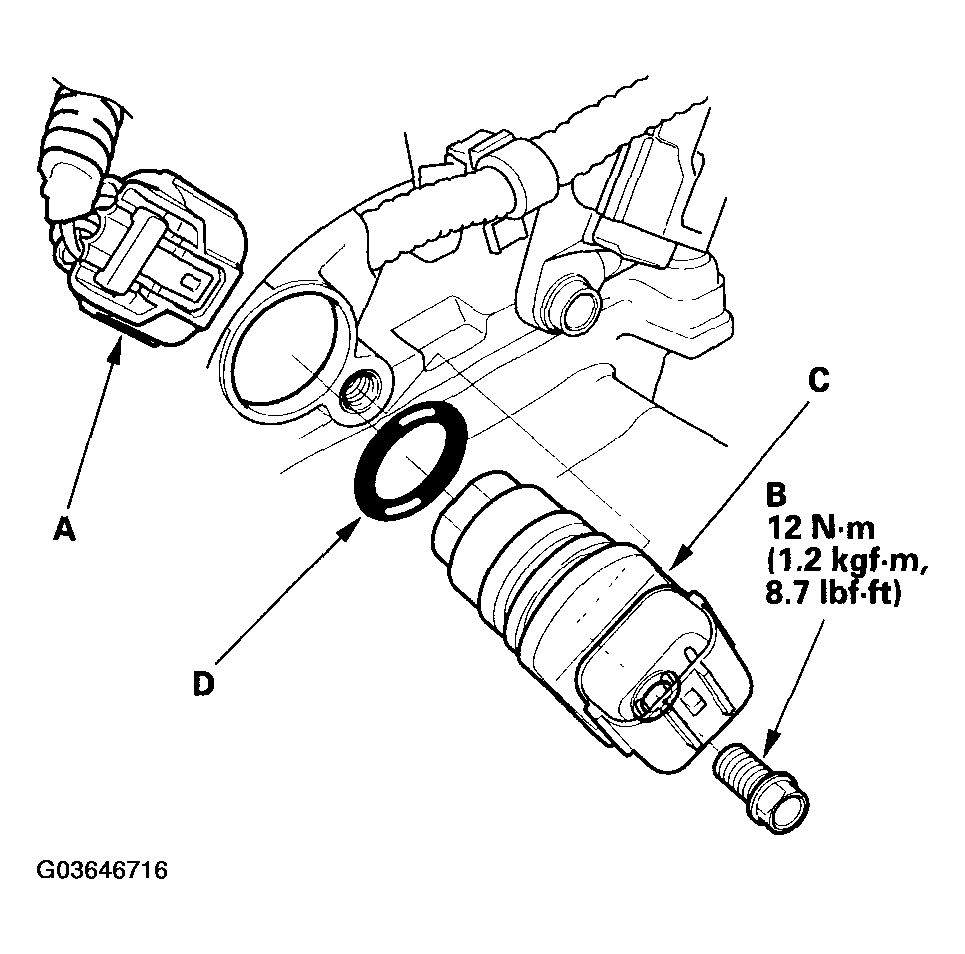

    Fig 1: Disconnecting CMP Sensor A Connector
    G03646716Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolt (B).
  5. Remove CMP sensor A (C) from the intake camshaft side of the cylinder head.
  6. Install the sensor in the reverse order of removal with a new O-ring (D).
