DTC P15AC: Engine Mount Control Unit Internal Circuit Malfunction: Notes

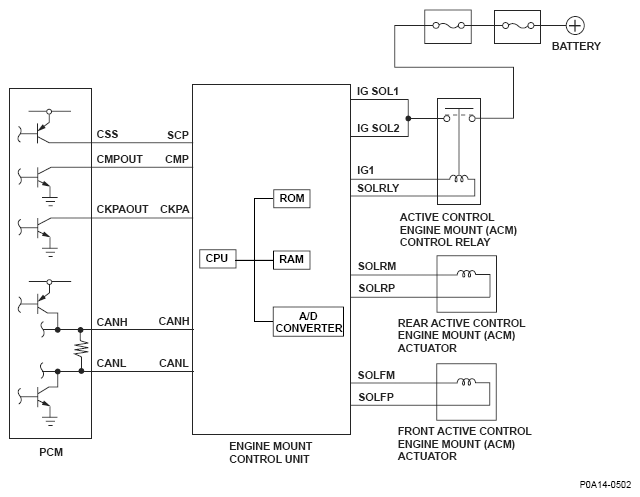

Fig 1: Engine Mount Control Unit Internal Circuit Diagram

G04819487
