DTC U1260: Problem in PCM-to-ATFP Control Unit Communication Circuit: Notes

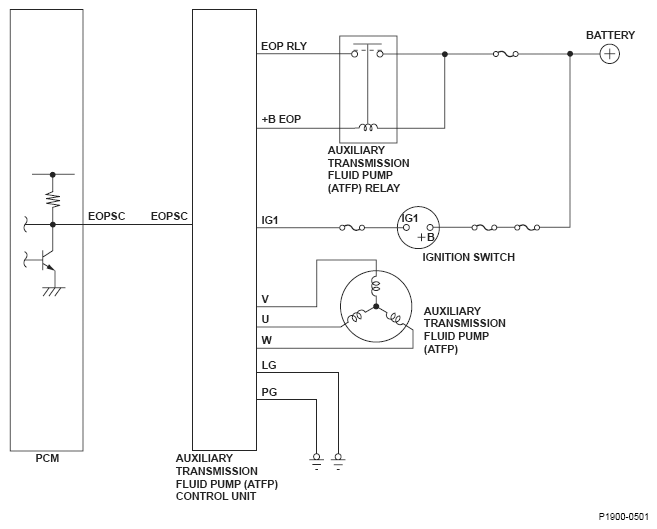

Fig 1: PCM-TO-ATFP Control Unit Communication Circuit Diagram
G04819590
