Alarm Module, (Vehicle Antitheft)

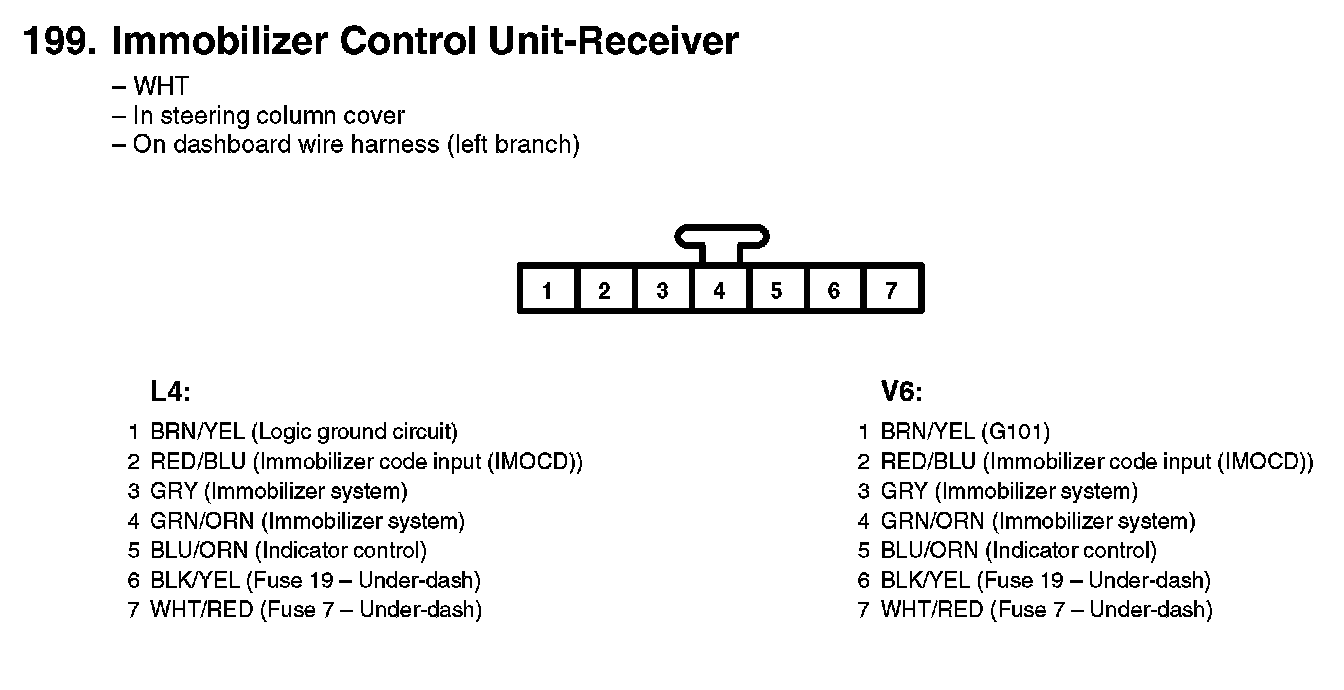

199. Immobilizer Control Unit-Receiver:

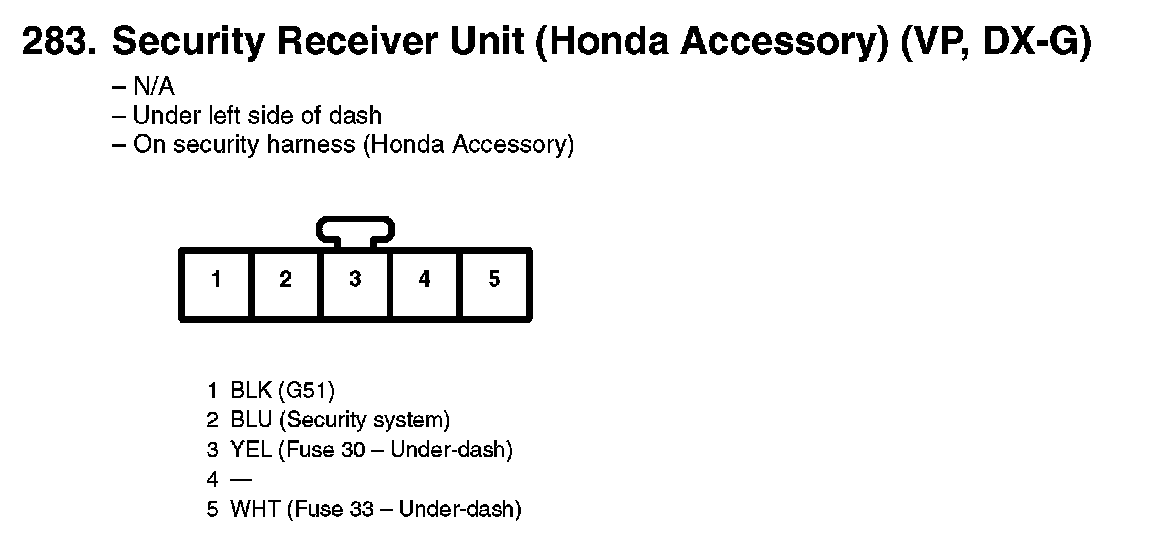

283. Security Receiver Unit (Honda Accessory) (VP, DX-G):

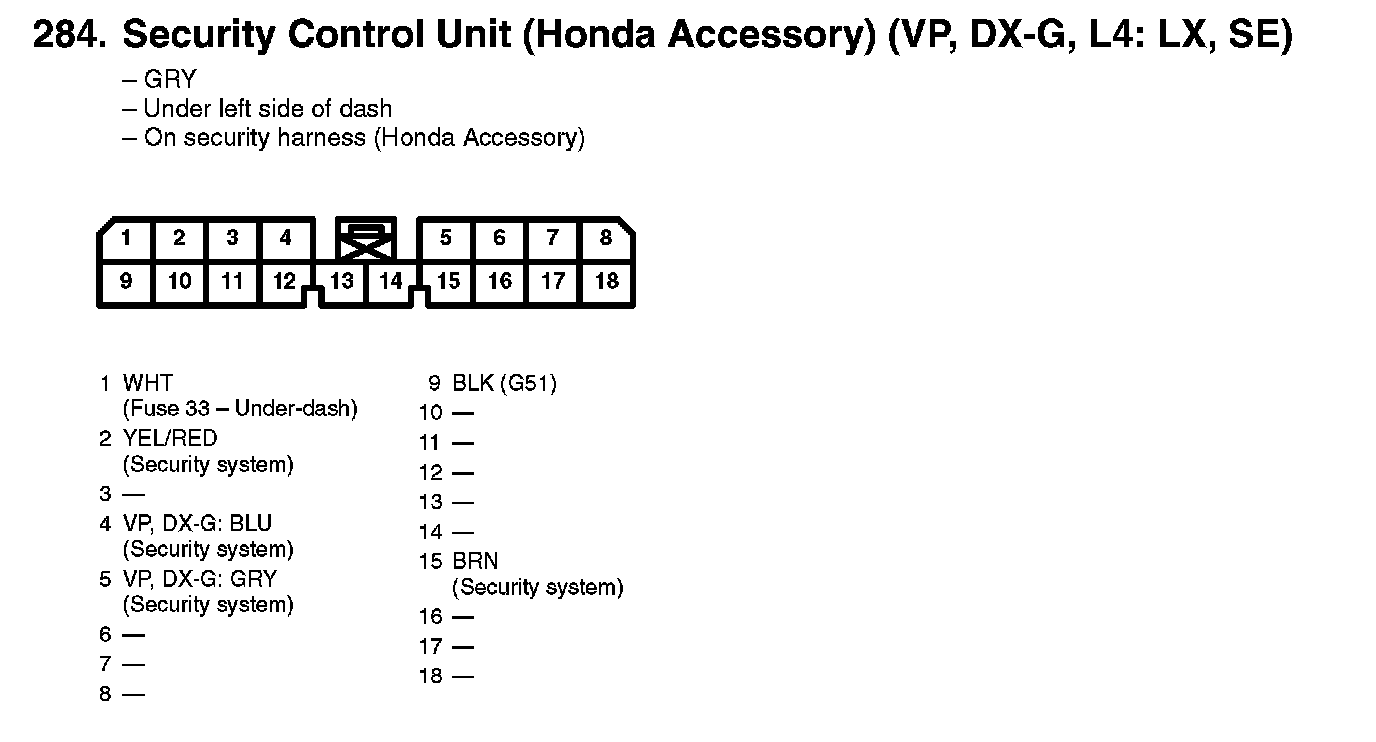

284. Security Control Unit (Honda Accessory) (VP, DX-G, L4: LX, SE):
