Fuse

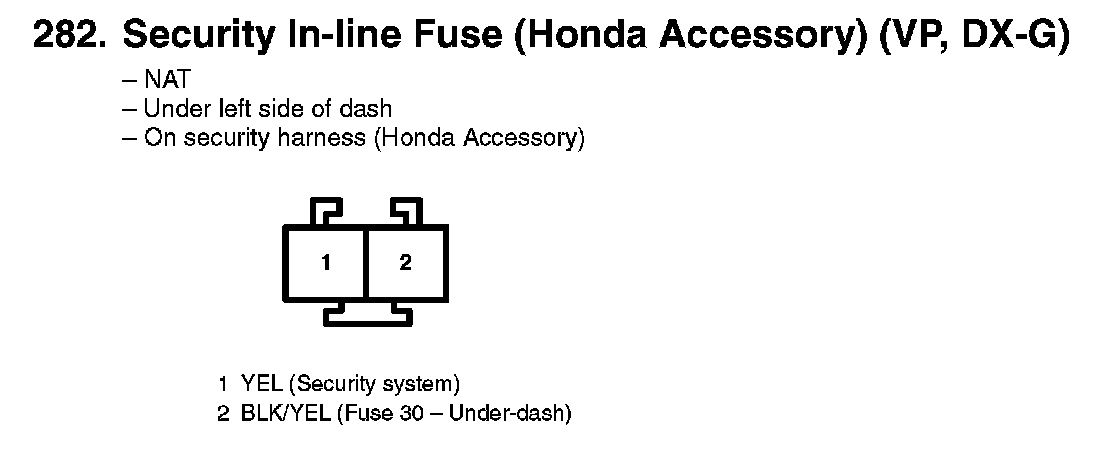

282. Security In-line Fuse (Honda Accessory) (VP, DX-G):

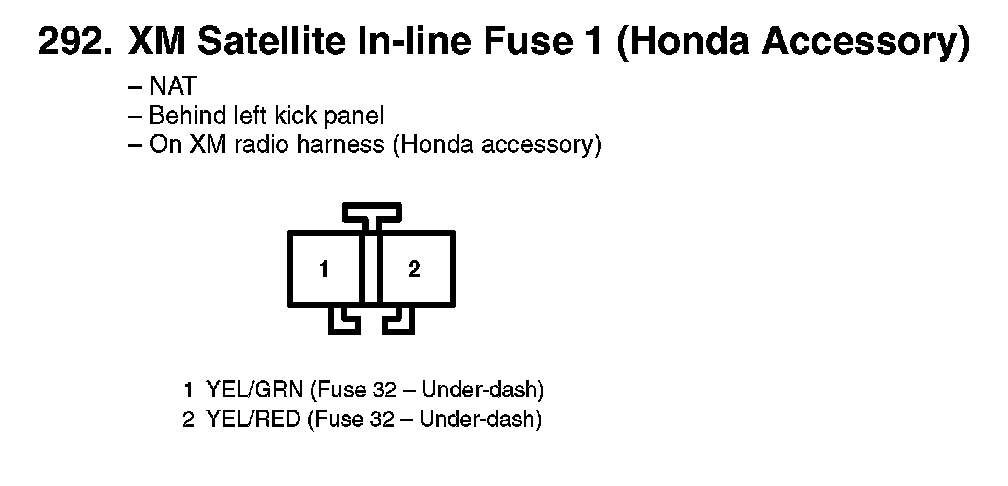

292. XM Satellite In-line Fuse 1 (Honda Accessory):

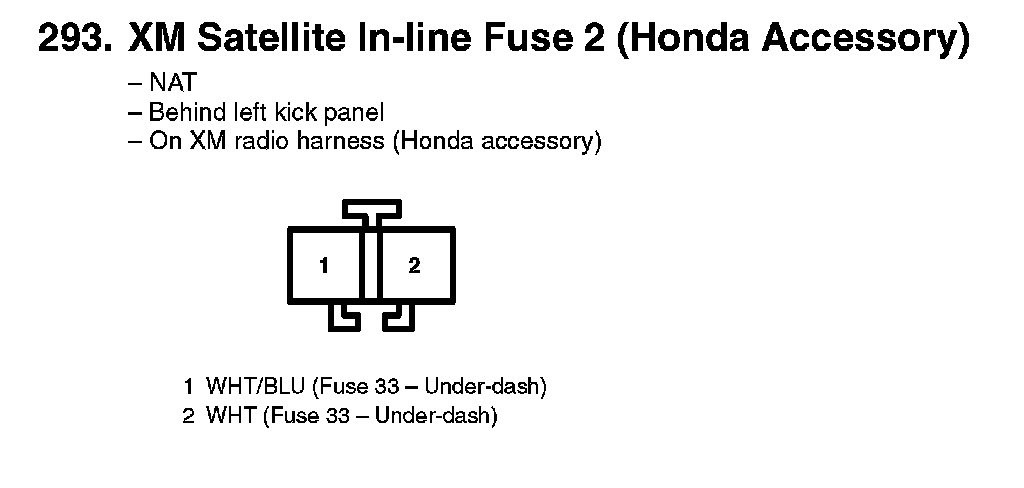

293. XM Satellite In-line Fuse 2 (Honda Accessory):
