Navigation Connectors

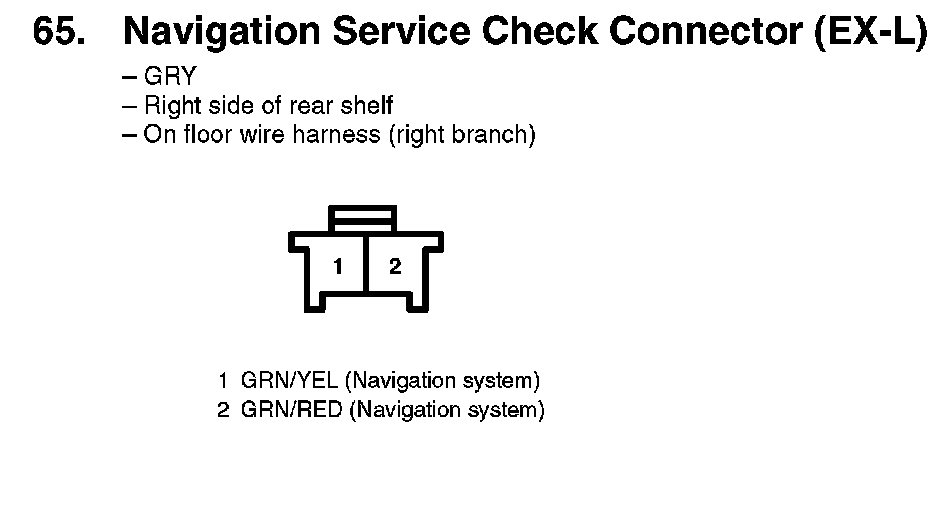

65. Navigation Service Check Connector (EX-L):

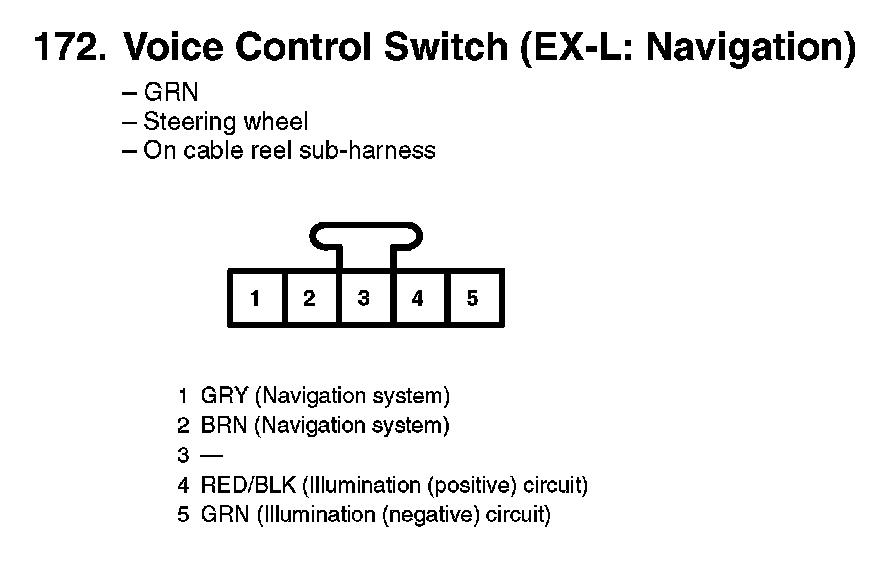

172. Voice Control Switch (EX-L: Navigation):

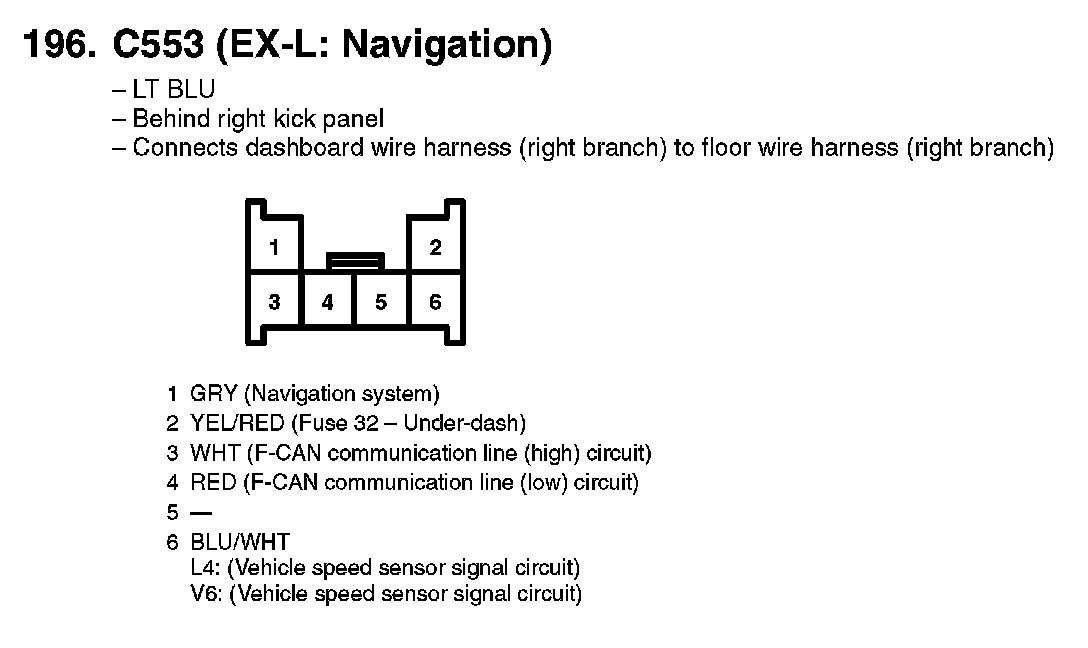

196. C553 (EX-L: Navigation):

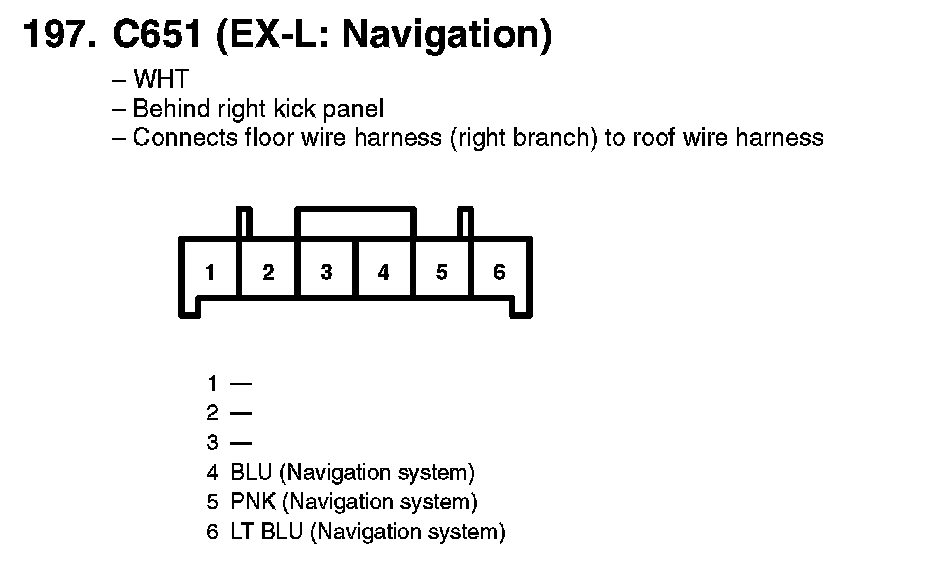

197. C651 (EX-L: Navigation):

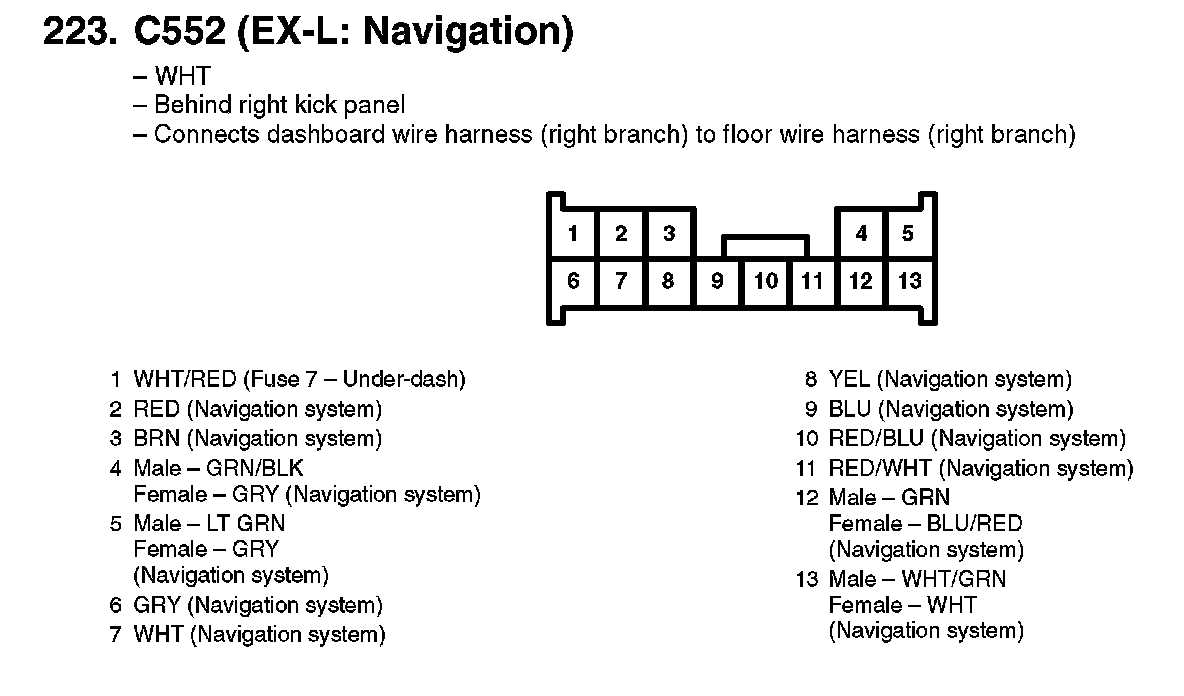

223. C552 (EX-L: Navigation):
