Power Window Switch

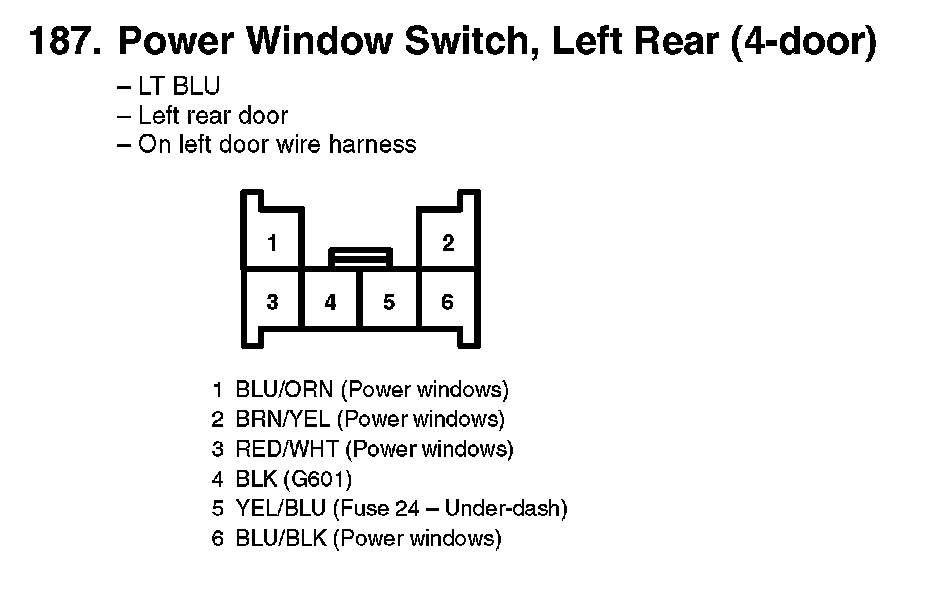

187. Power Window Switch, Left Rear (4-door):

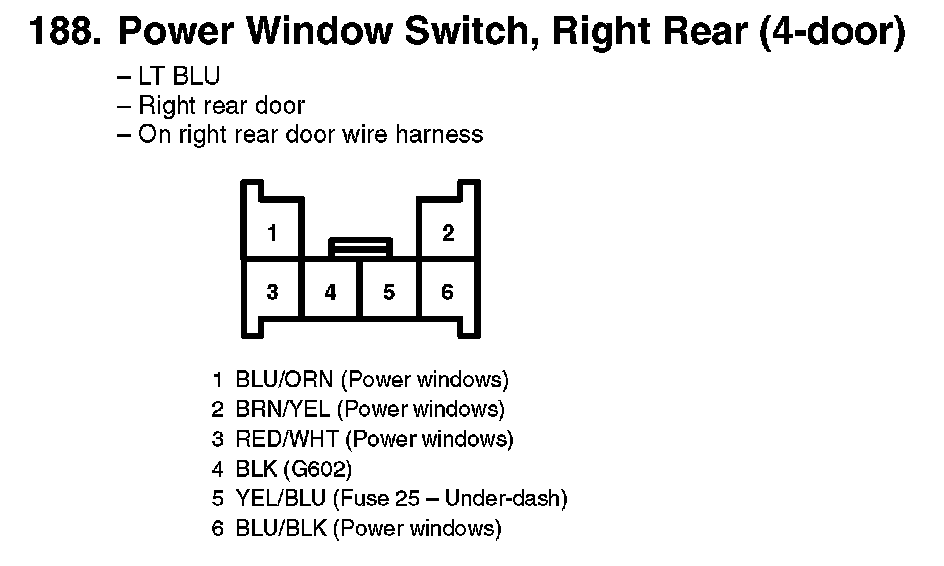

188. Power Window Switch, Right Rear (4-door):

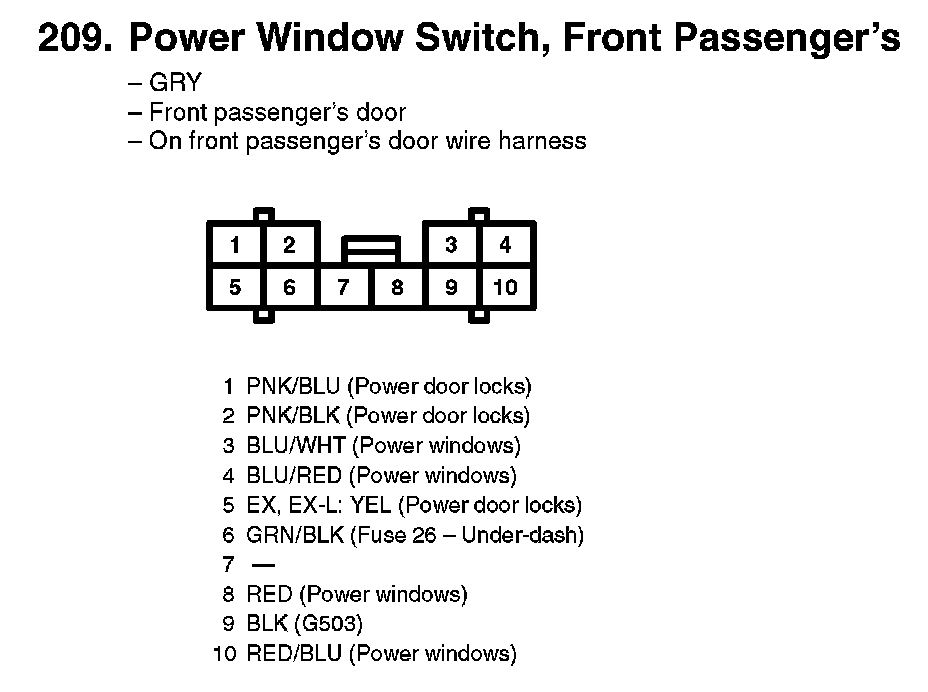

209. Power Window Switch, Front Passenger's:

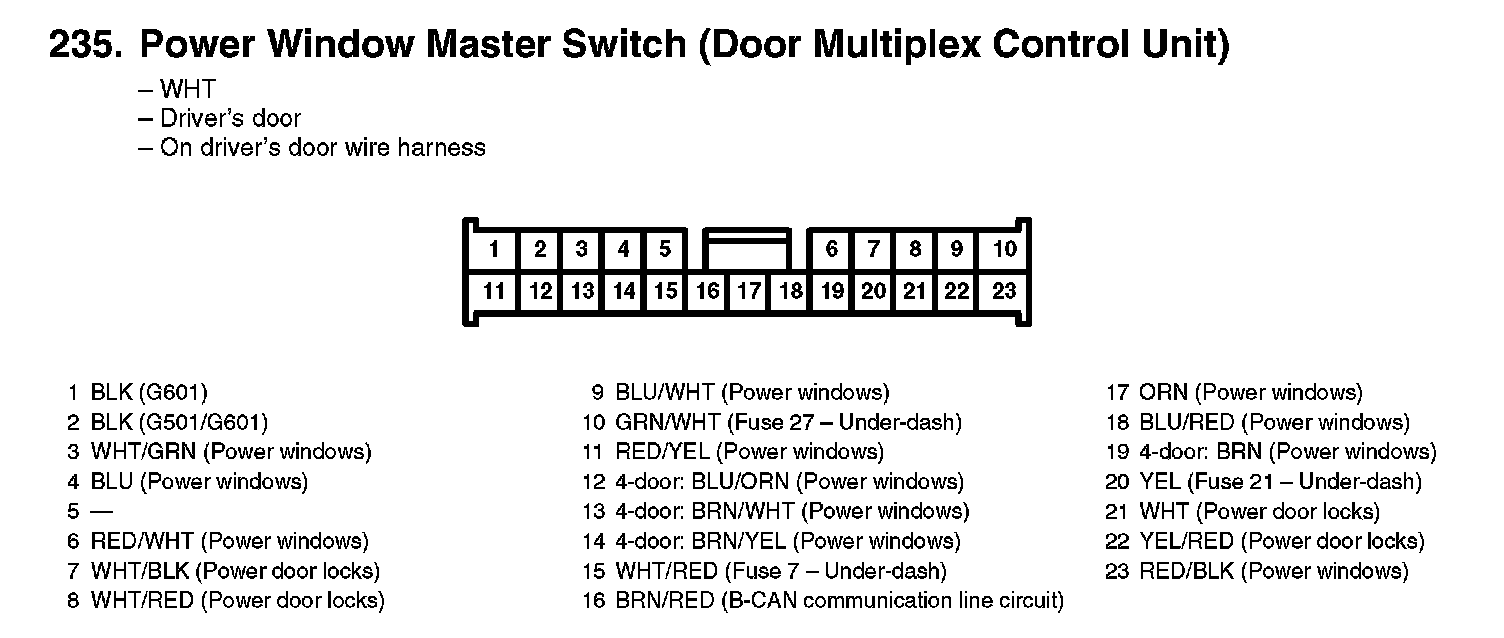

235. Power Window Master Switch (Door Multiplex Control Unit):
