Wheel Speed Sensor

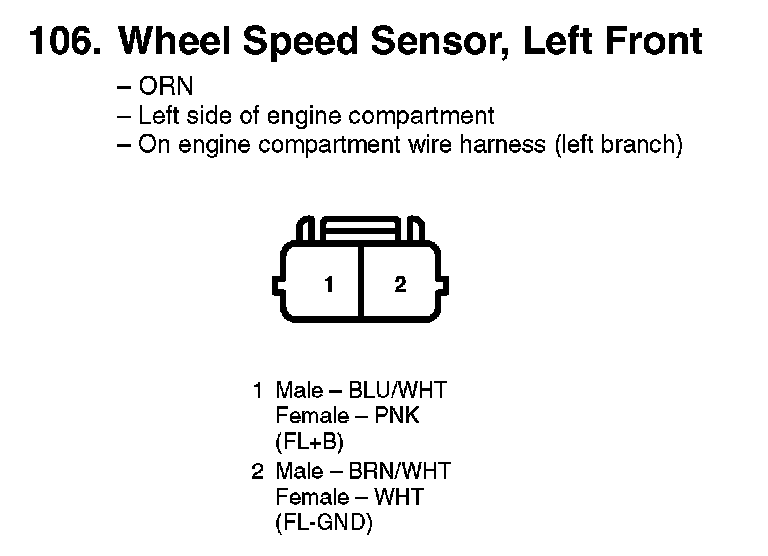

106. Wheel Speed Sensor, Left Front:

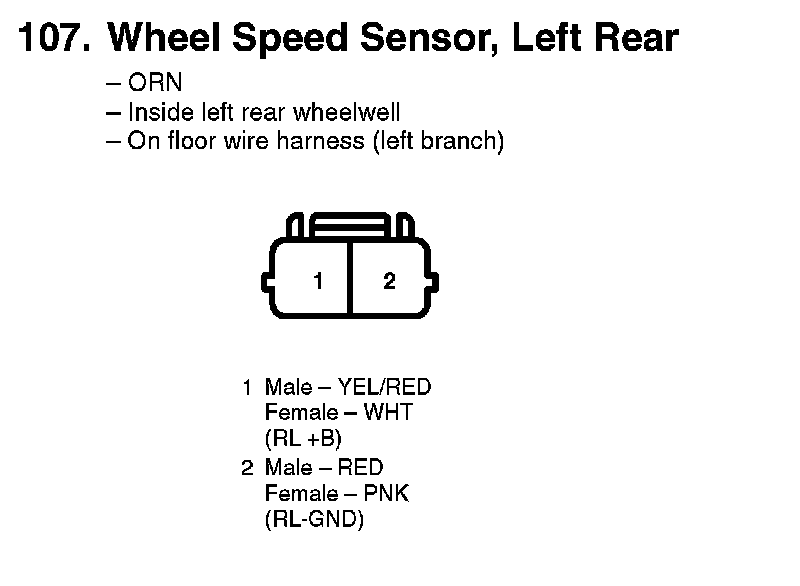

107. Wheel Speed Sensor, Left Rear:

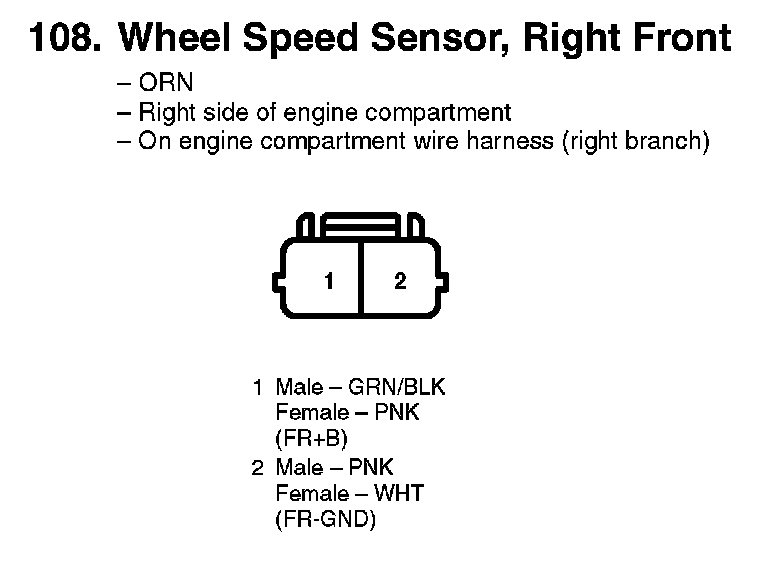

108. Wheel Speed Sensor, Right Front:

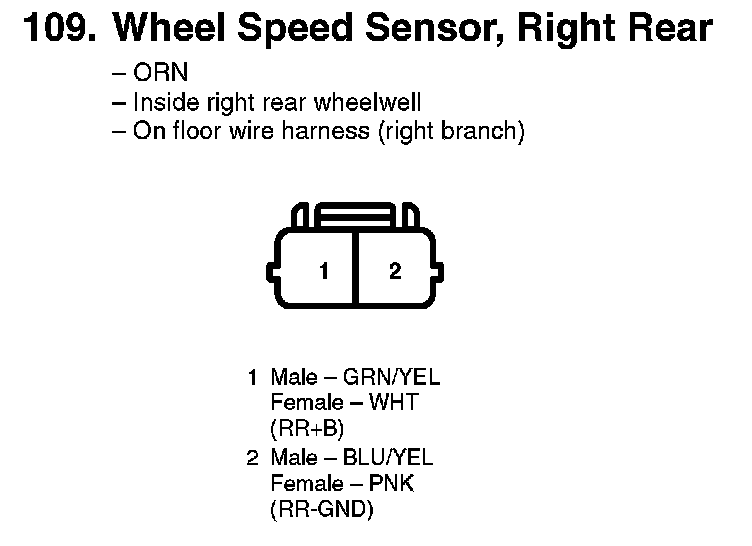

109. Wheel Speed Sensor, Right Rear:
