Home >> Honda >> 2007 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Suspension Strut / Shock Absorber >> Front

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

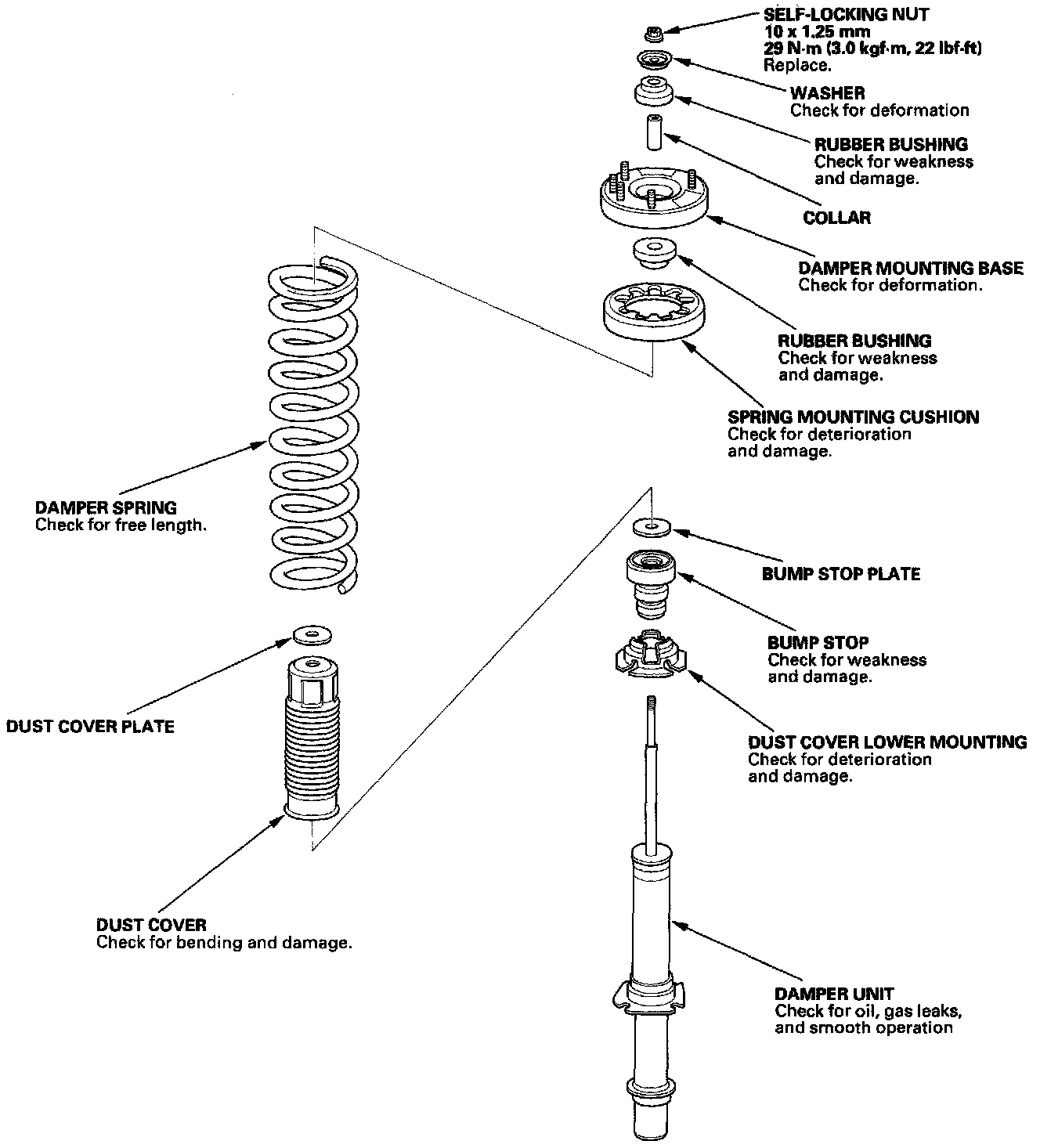

Front
