Electronic Throttle Control System

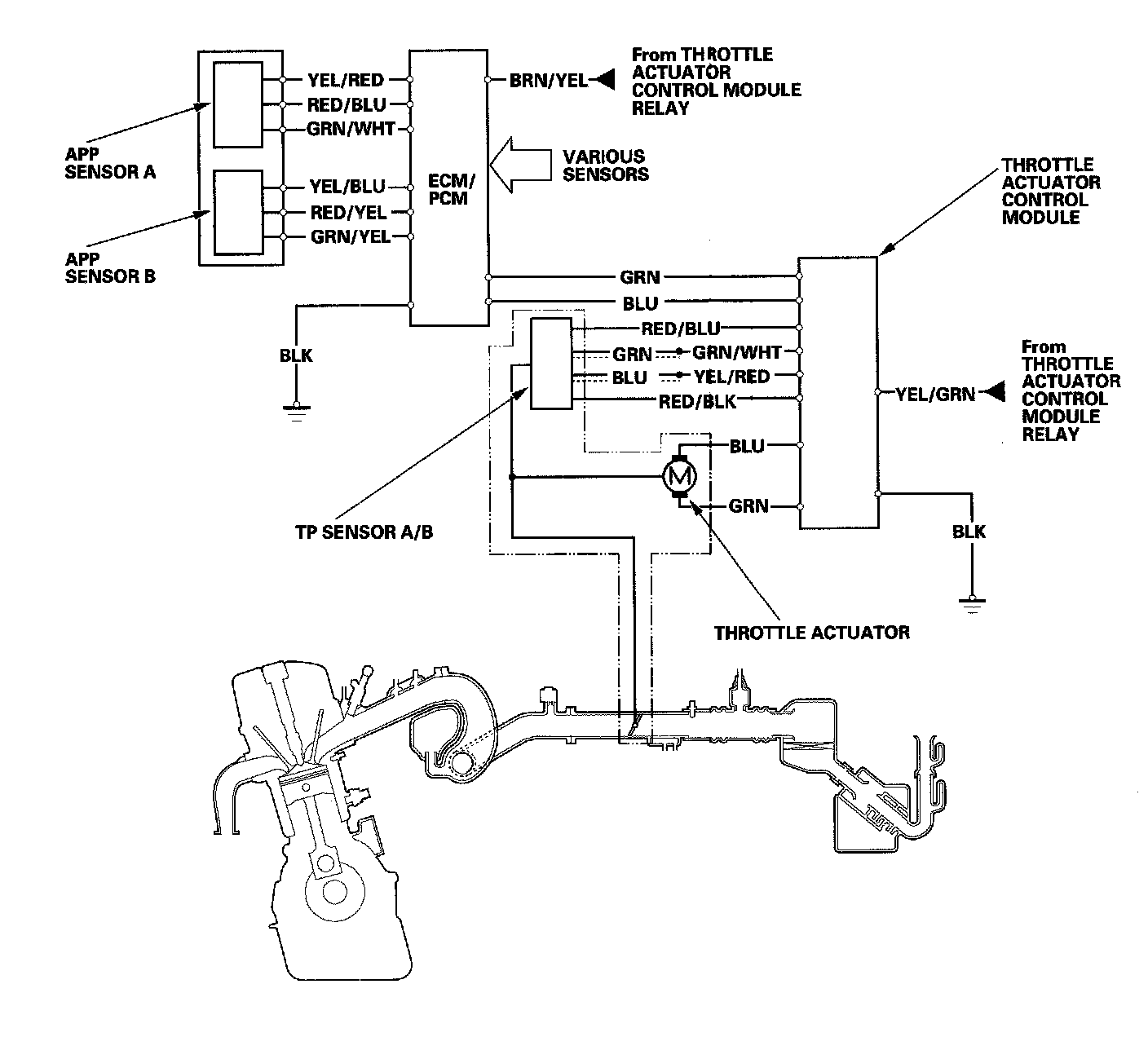

Electronic Throttle Control System Diagram ('06-07 models)




The electronic throttle control system consists of the throttle actuator, throttle position (TP) sensor, accelerator pedal position (APP) sensor, throttle actuator control module, and the ECM/PCM. The throttle is electronically controlled by this system.
