APP Sensor Replacement

  1. Remove the throttle cable (see THROTTLE CABLE REMOVAL/INSTALLATION ).
  2. Disconnect the accelerator pedal position (APP) sensor 6P connector (A).

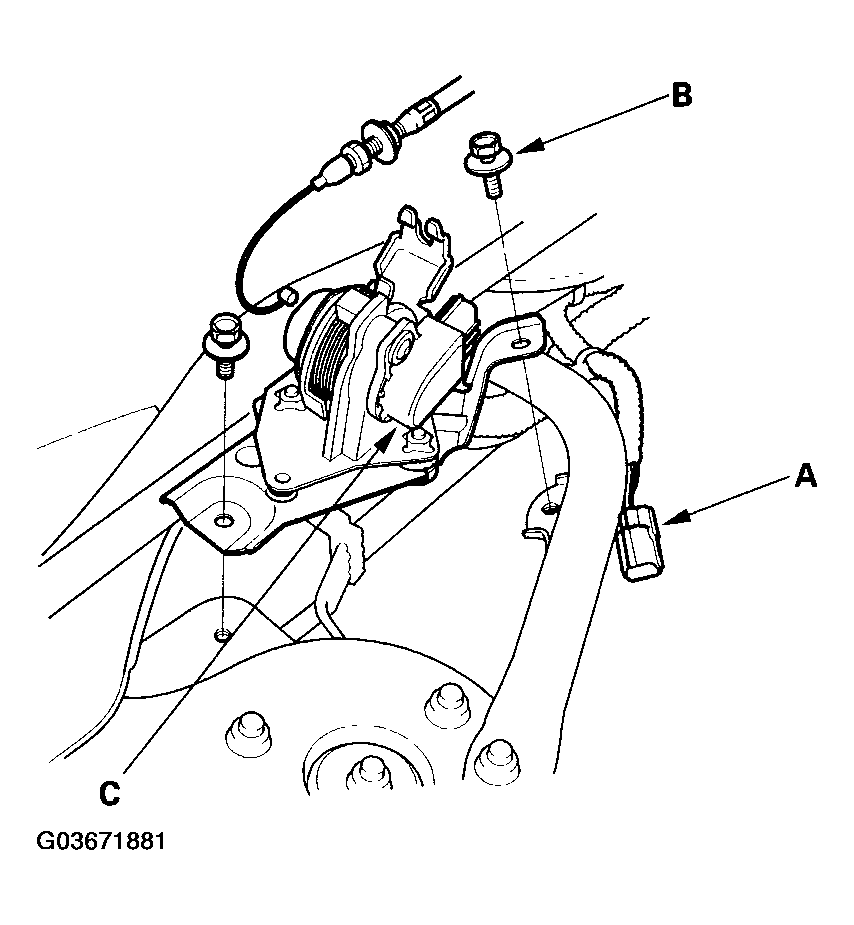

    Fig 1: Disconnecting APP Sensor 6P Connector
    G03671881Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B) and the APP sensor (C).
  4. Install the sensor in the reverse order of removal.
