View 76-100: 91

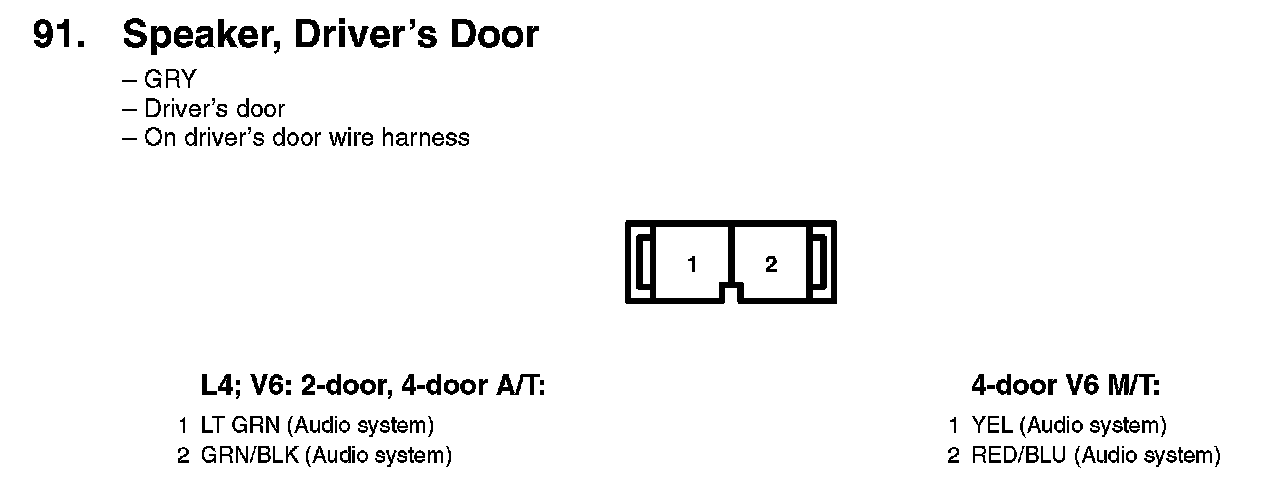

91. Speaker, Driver's Door:

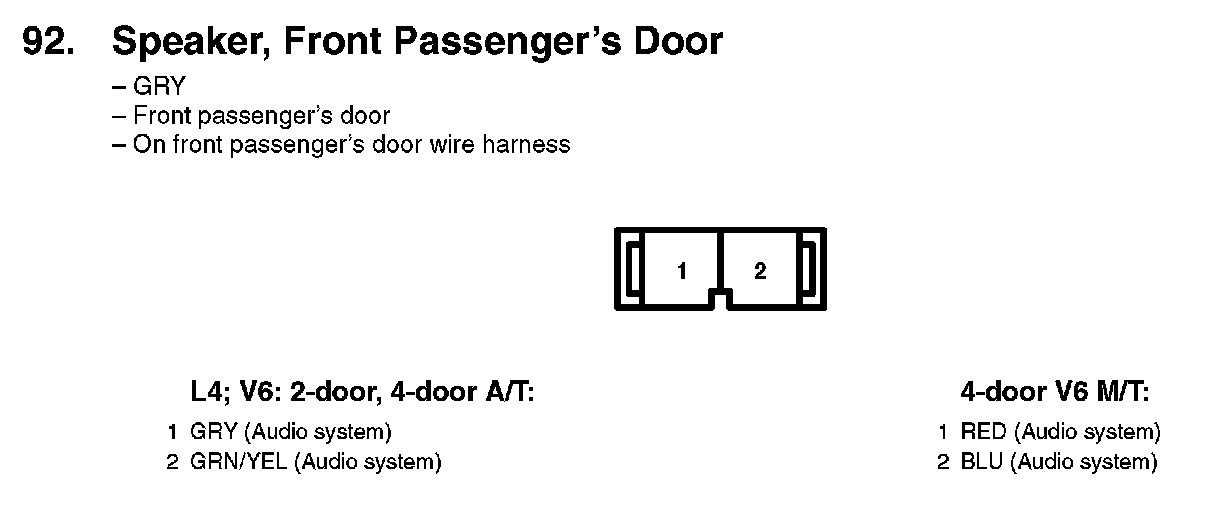

92. Speaker, Front Passenger's Door:



93. Speaker, Left Rear:

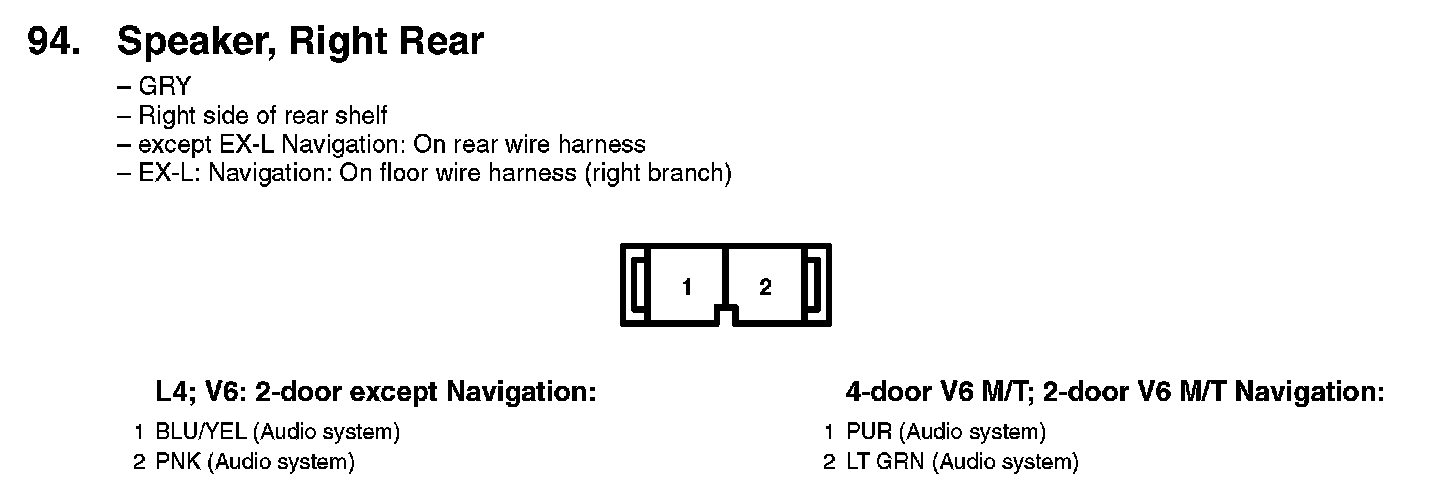

94. Speaker, Right Rear:

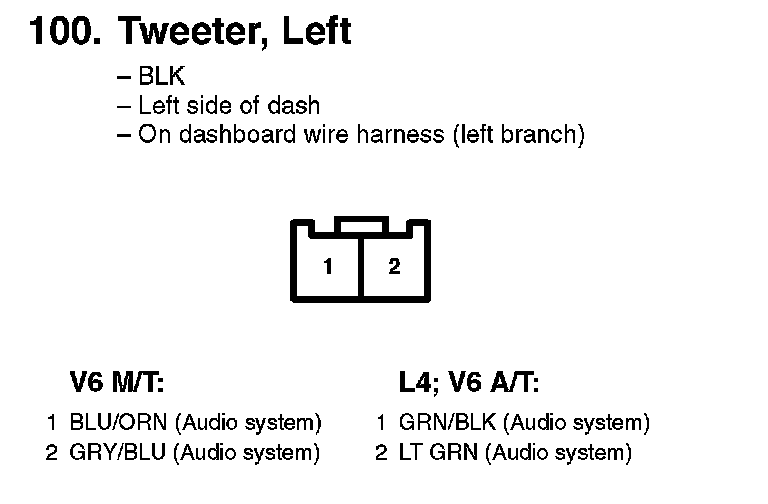

100. Tweeter, Left:

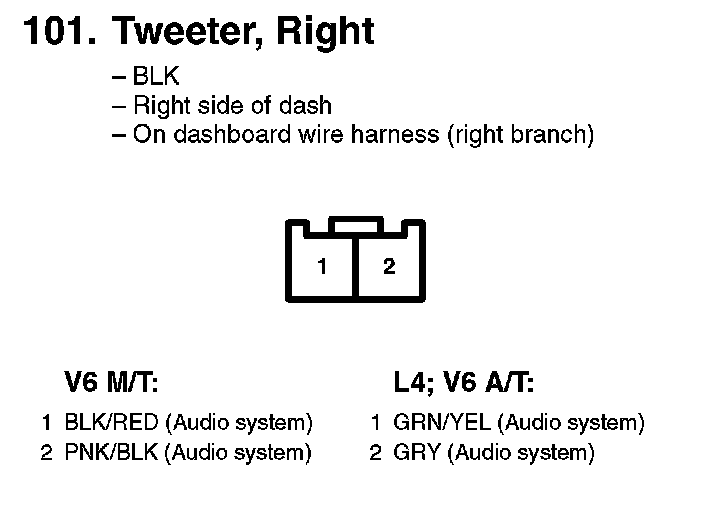

101. Tweeter, Right:
