Pinout Values and Diagnostic Parameters

Electronic Control System

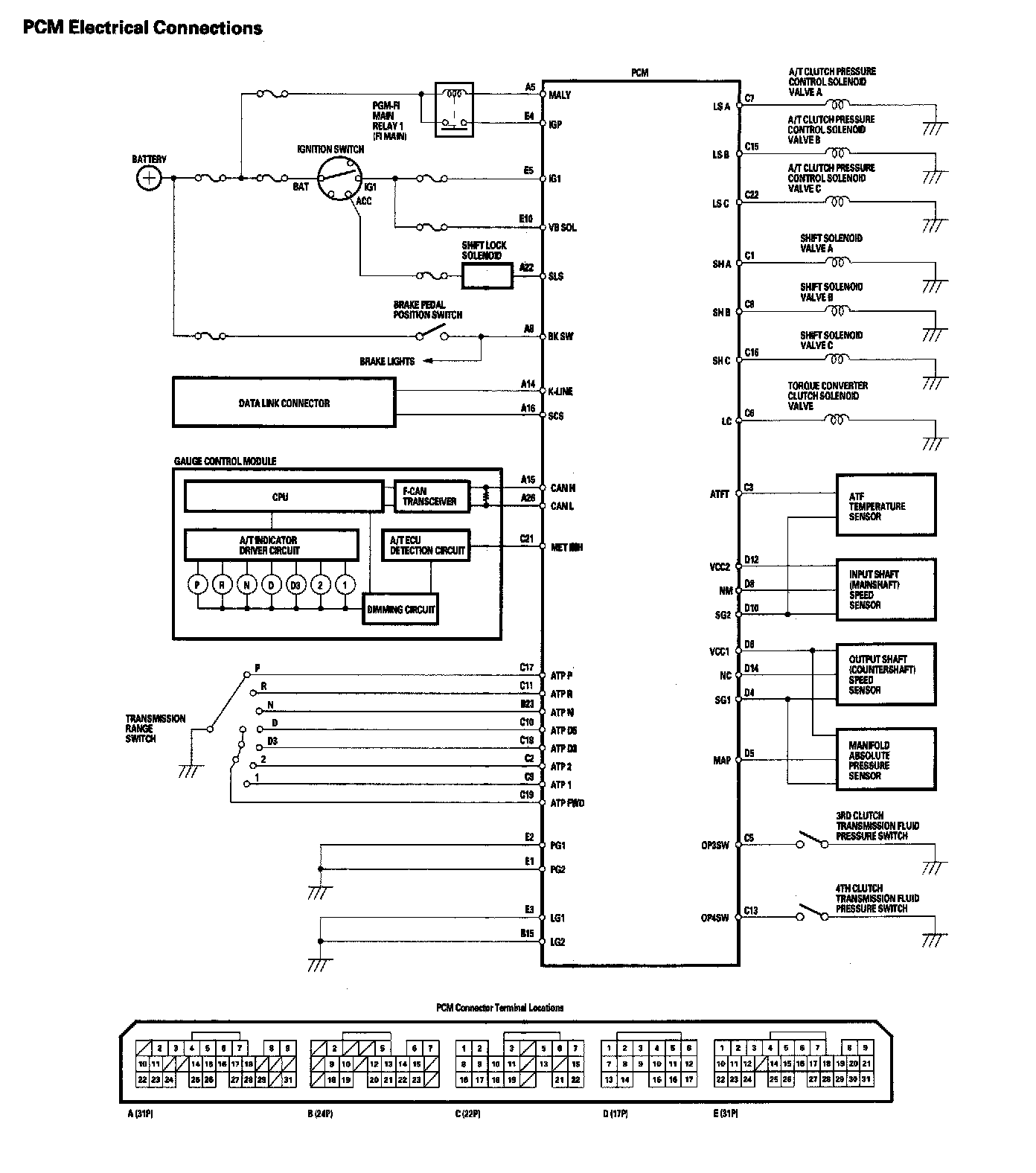

PCM Electrical Connections:

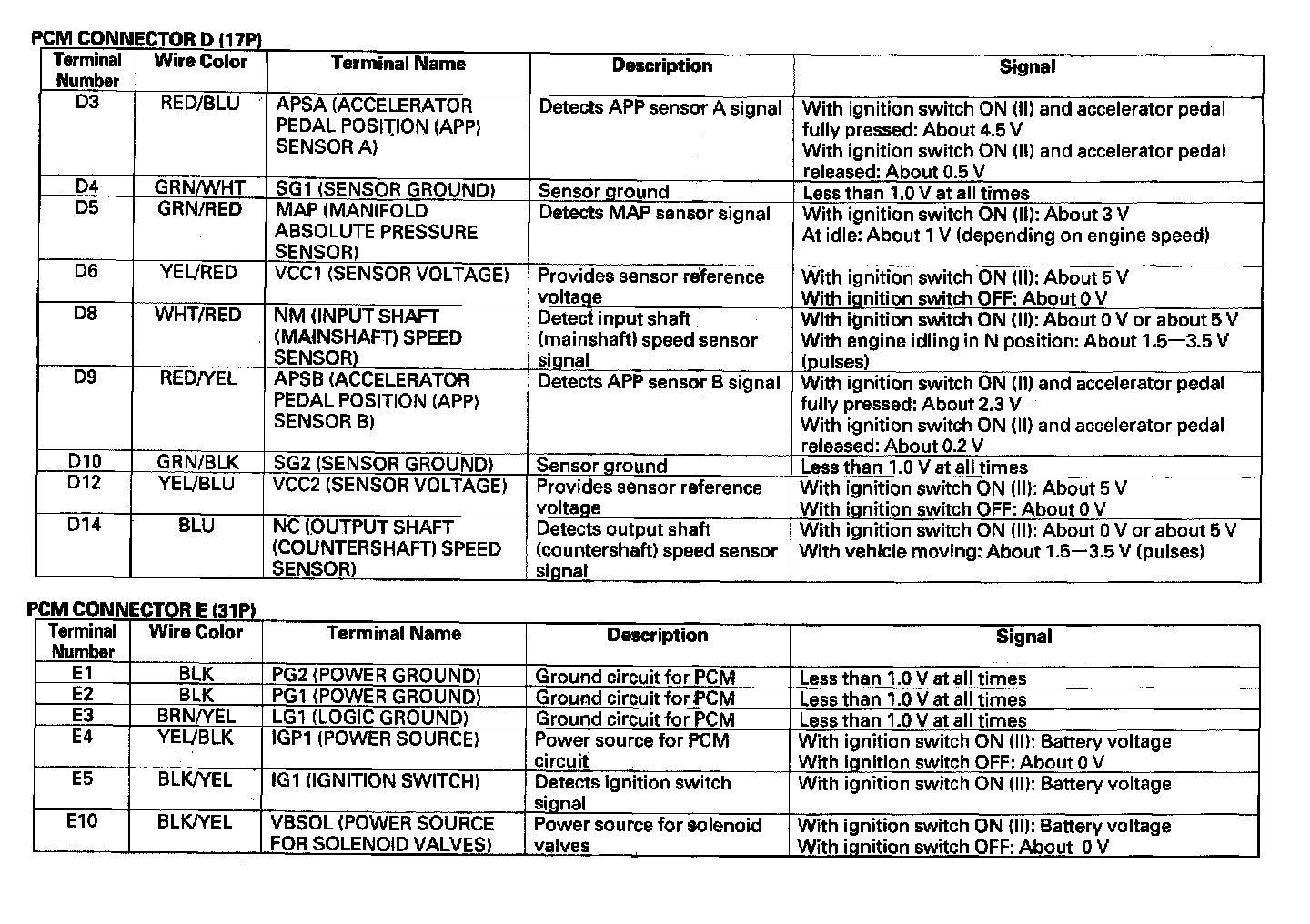

PCM Inputs And Outputs:

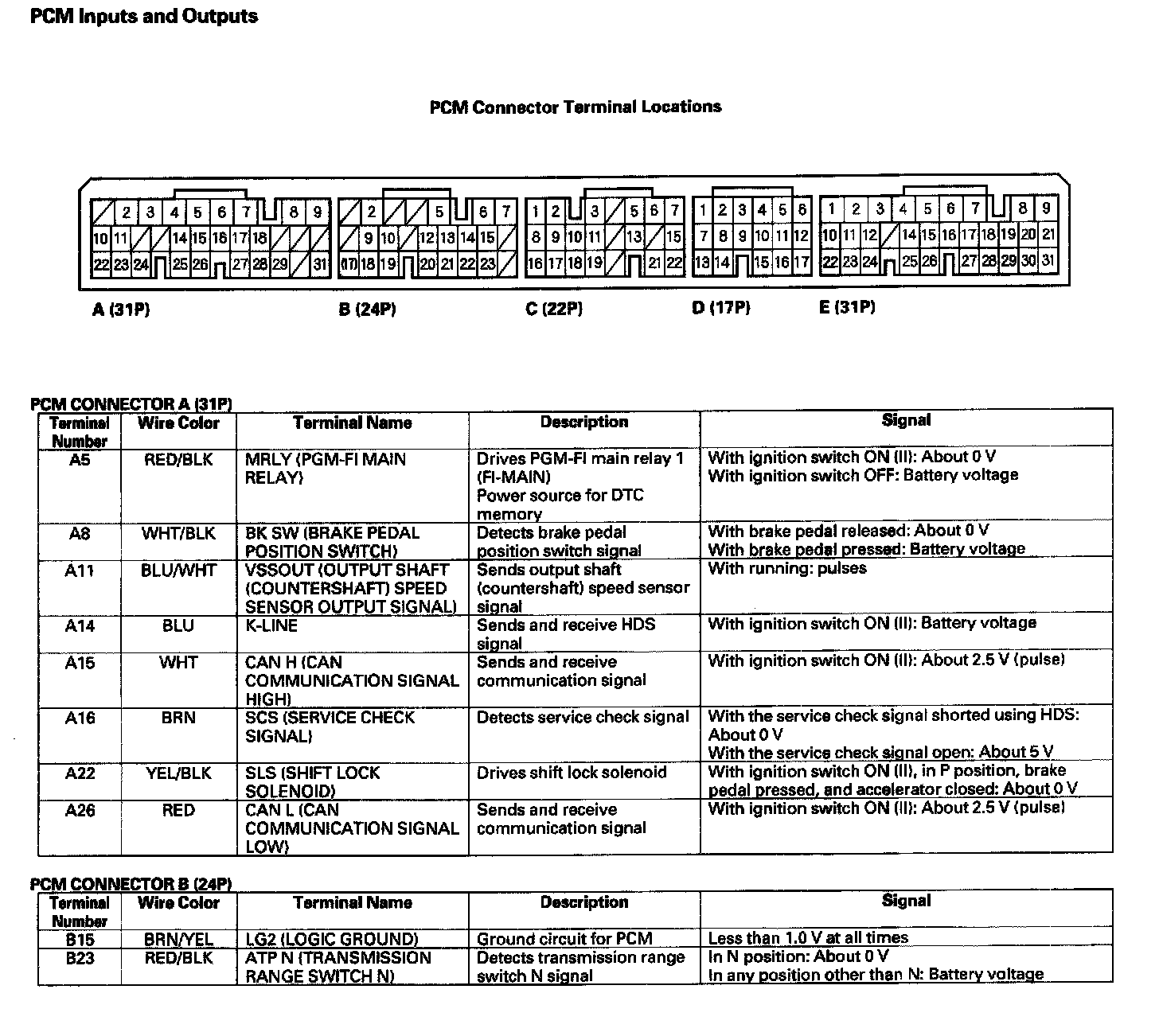

PCM Inputs And Outputs:

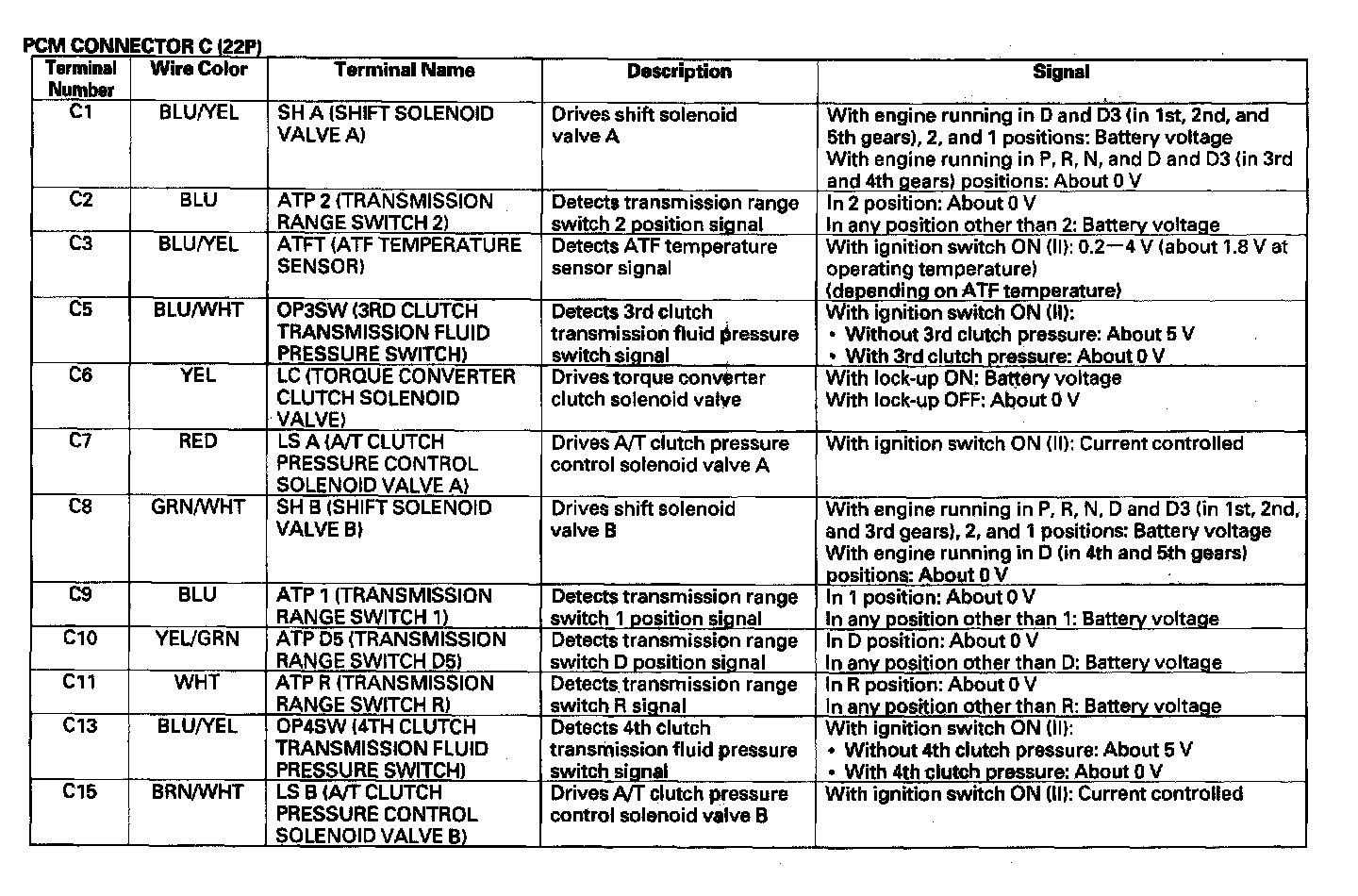

PCM Inputs And Outputs:

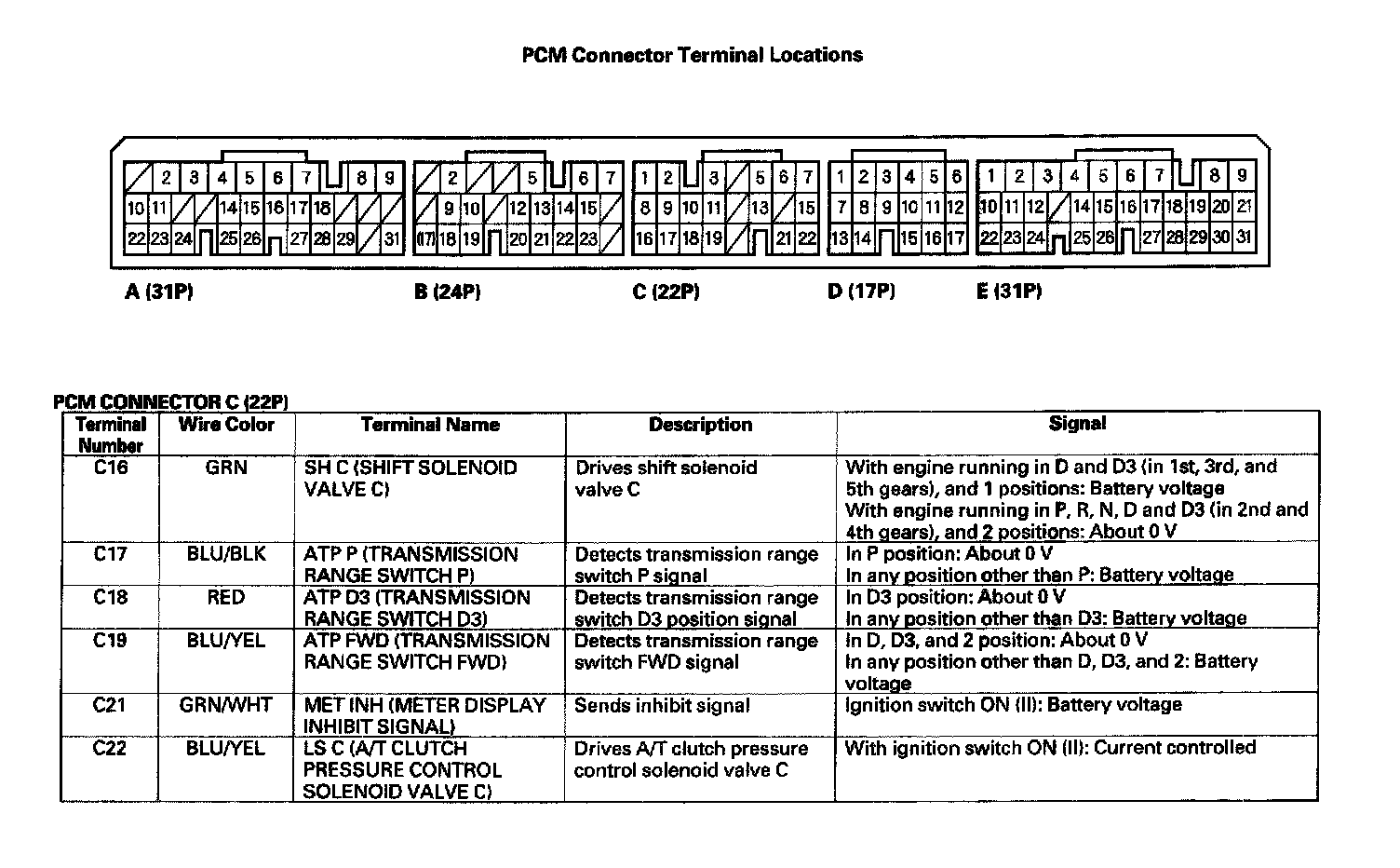

PCM Inputs And Outputs:
