MICU Input Test

MICU Input Test

NOTE: Before testing, troubleshoot the B-CAN System Diagnosis Test Mode A.

1. Check the No. 10(7.5 A) fuse in the under-dash fuse/relay box. If the fuse is blown, replace it and Go to step 2.

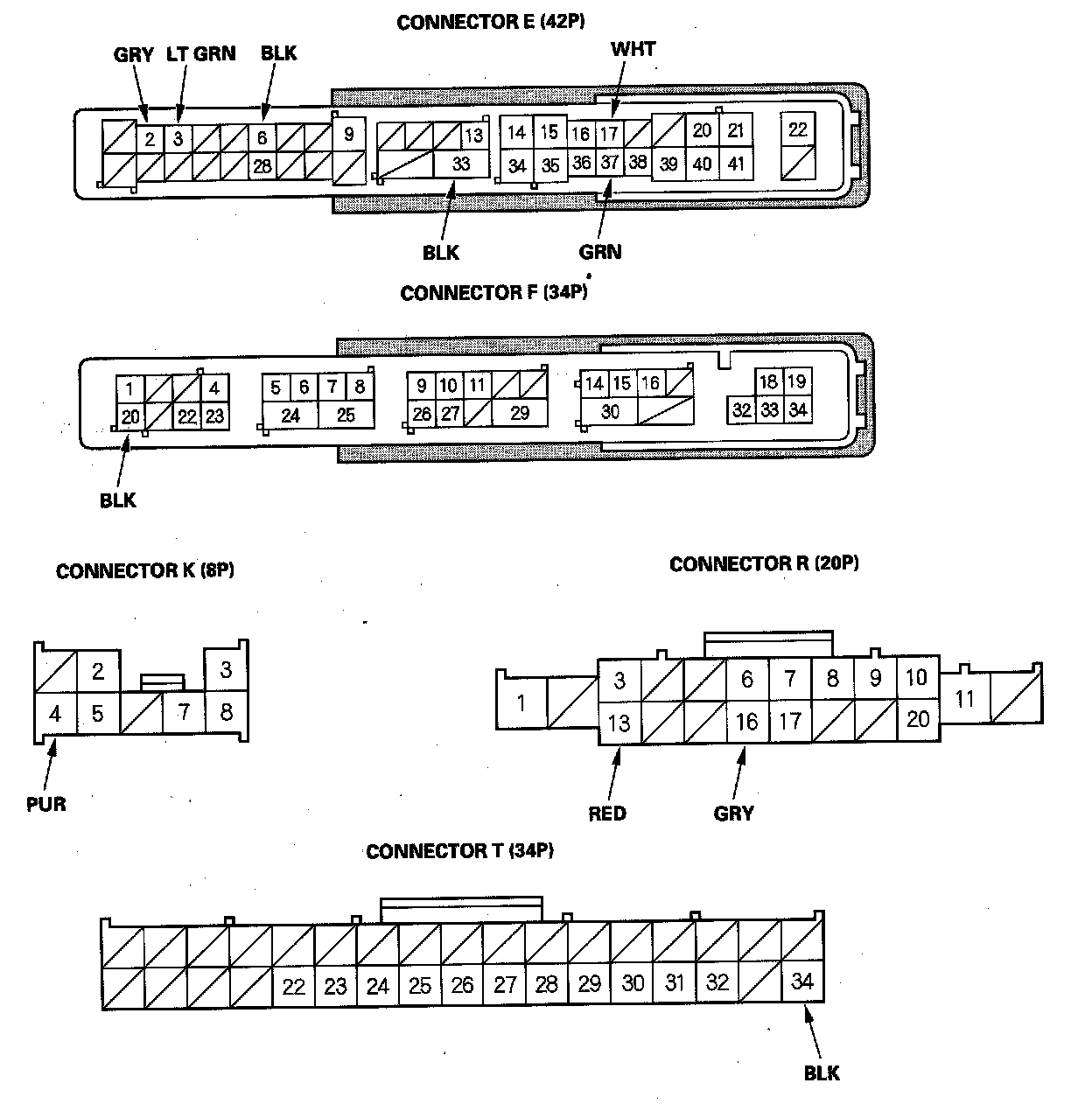

2. Disconnect the under-dash fuse/relay box connectors E, F, K, Q, R, and T.

NOTE: All connector views are wire side of female terminals.

3. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, Go to step 4.

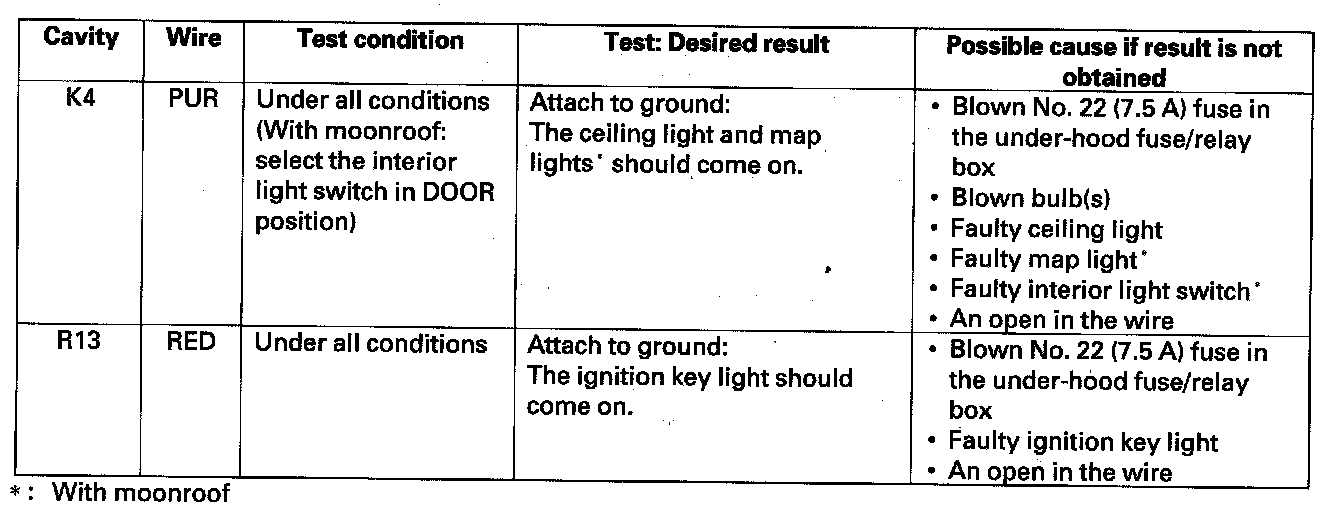

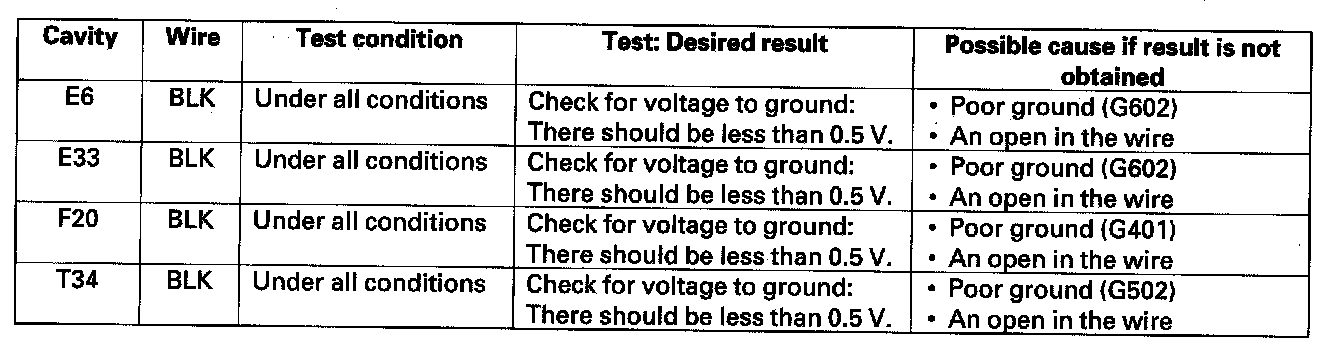

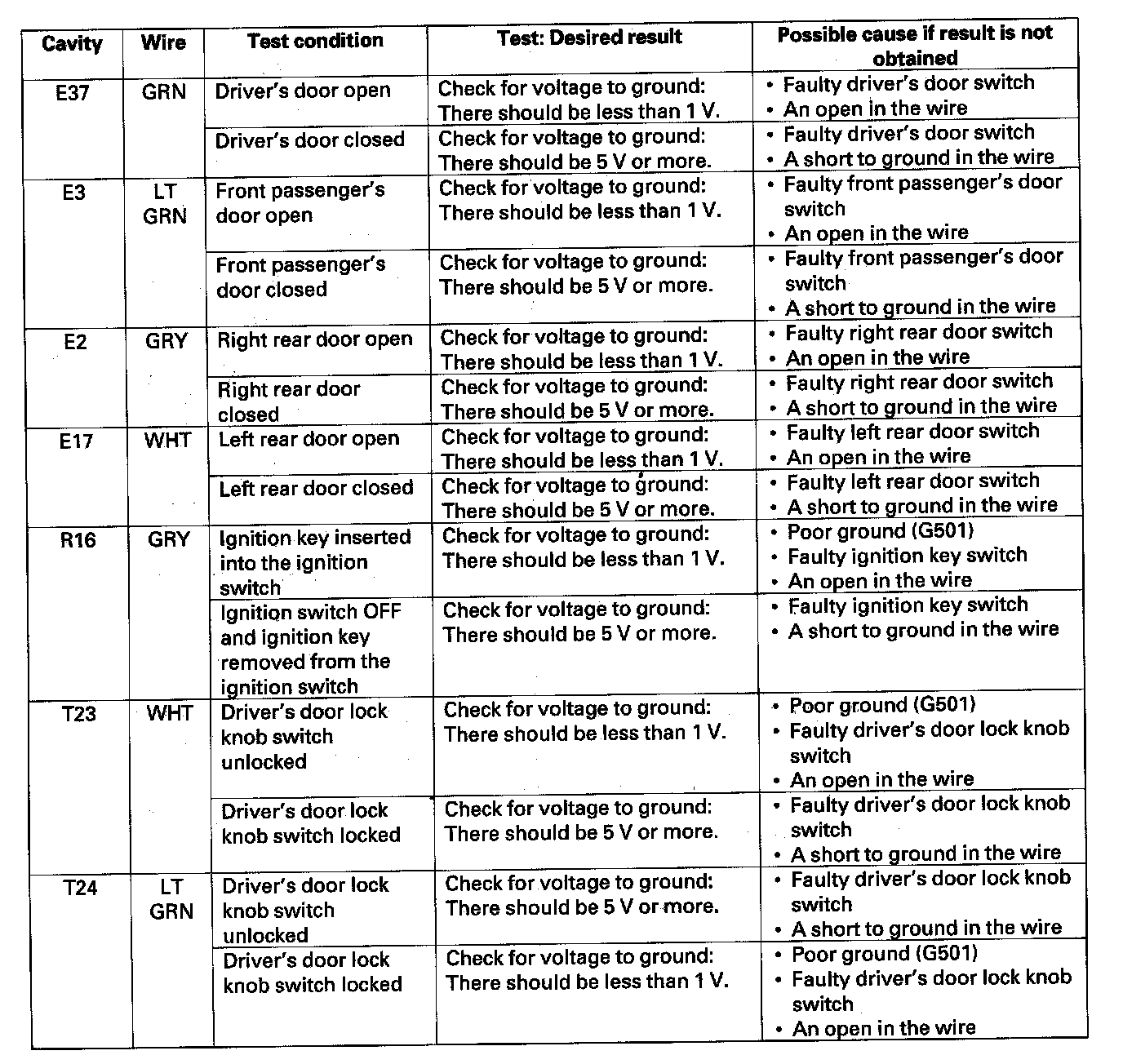

4. With the connectors still disconnected, do these input tests at the appropriate connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, Go to step 5.







5. Reconnect the connectors to the under-dash fuse/relay box, and do these input tests at the connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the MICU must be faulty; replace the under-dash fuse/relay box.
