Electric Load Sensor: Locations

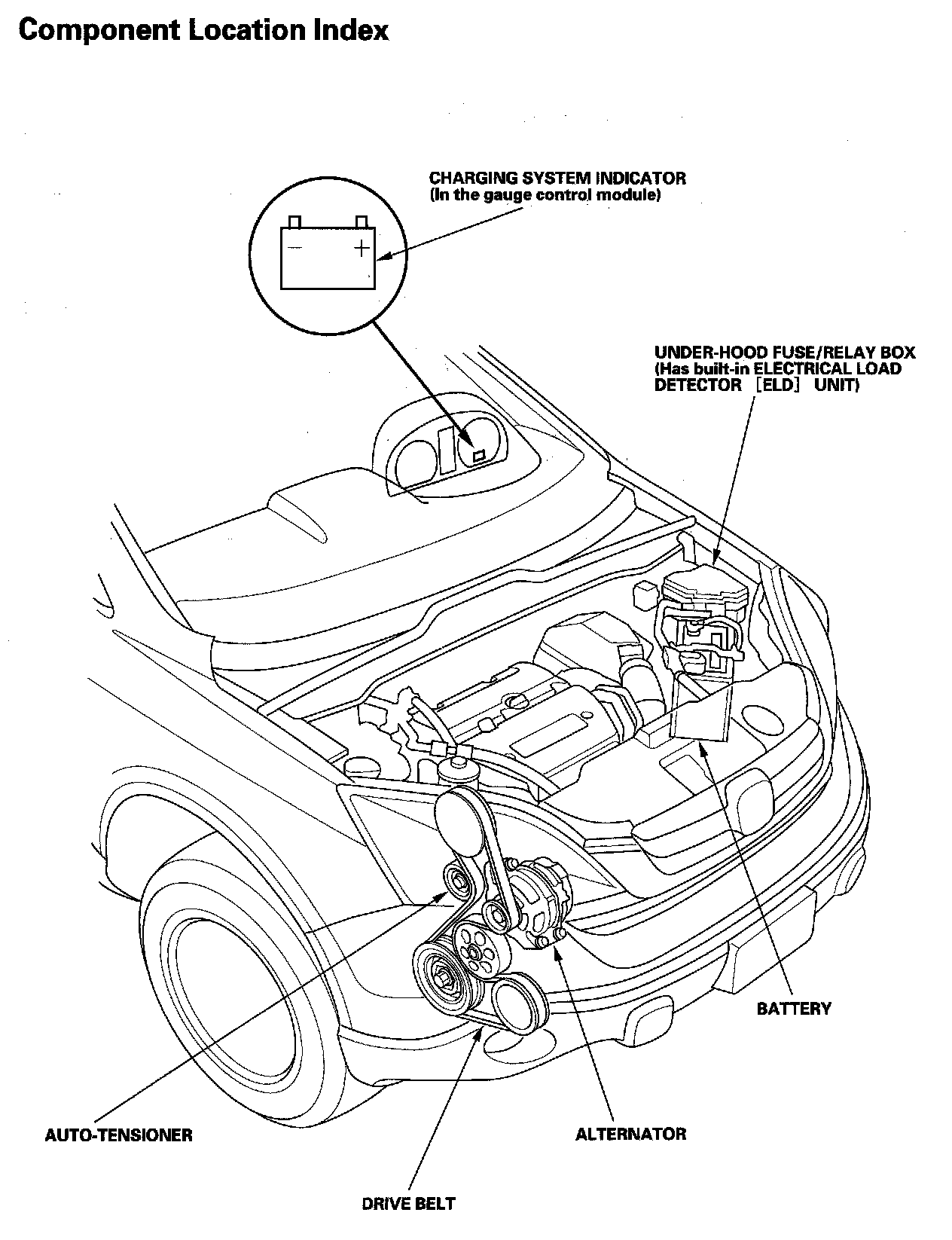

Charging System Component Location Index:

Ignition System Component Location Index:

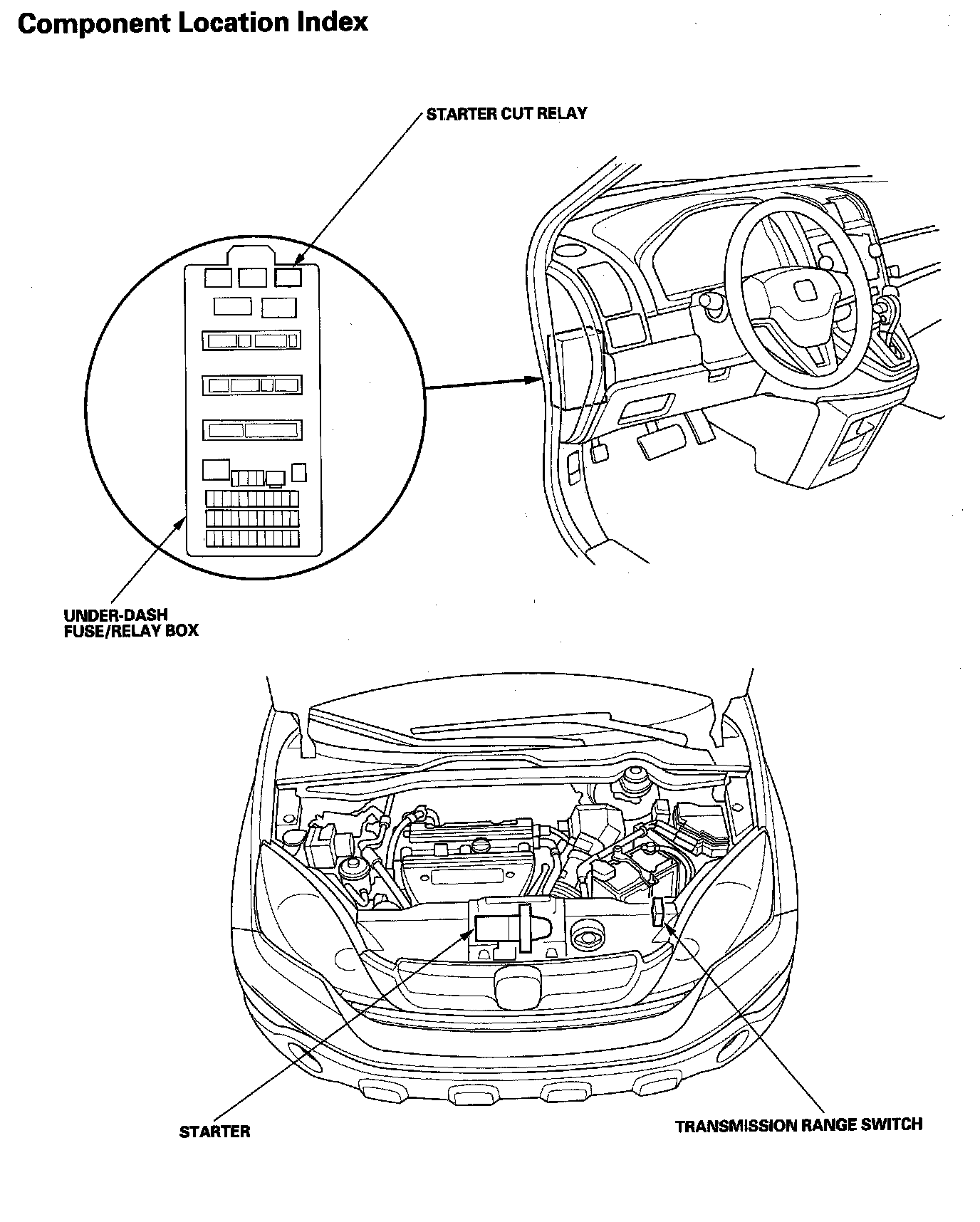

Starting System Component Location Index:

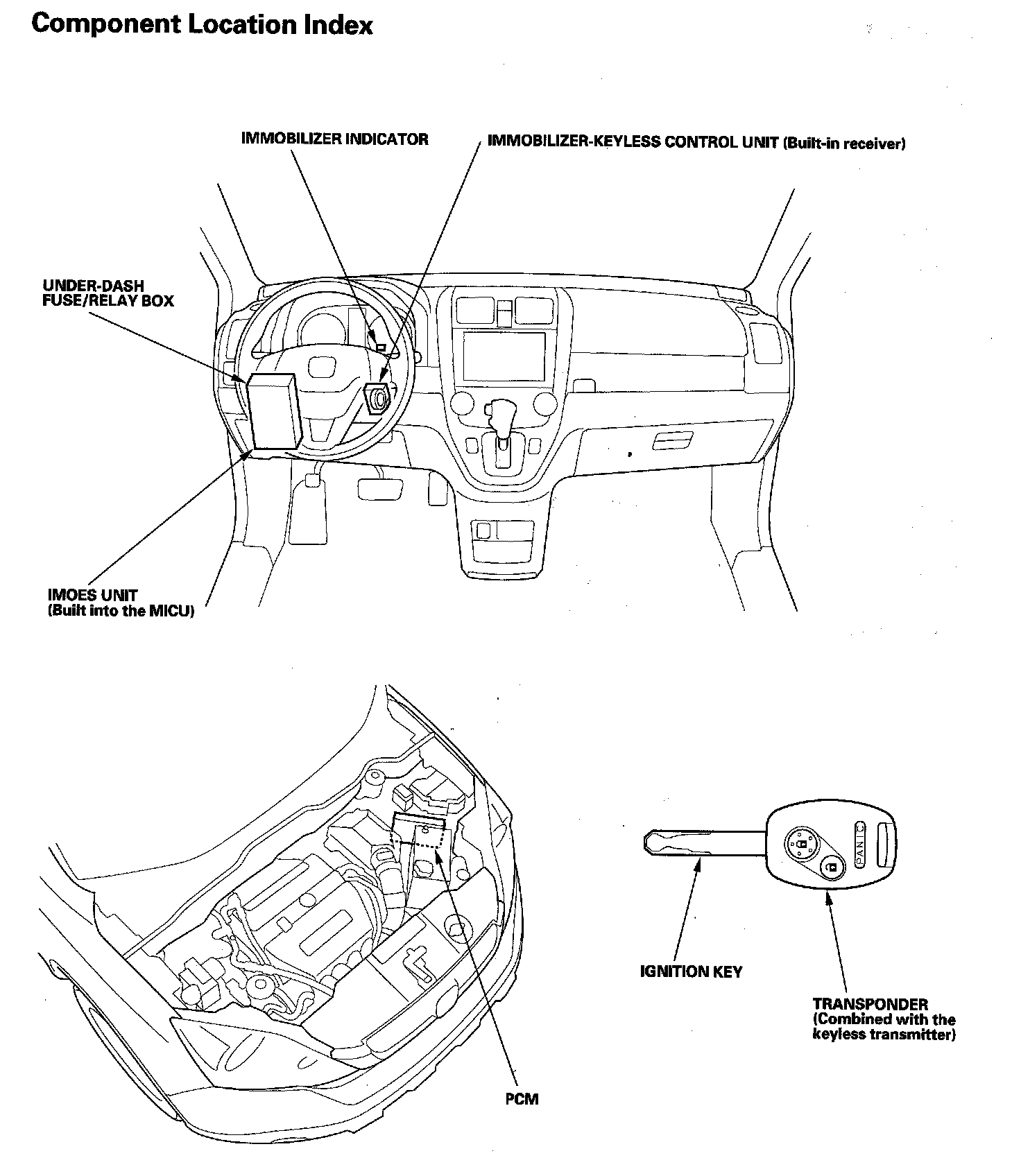

Immobilizer System Component Location Index:

Rear Window Defogger Component Location Index:

Power Mirrors Component Location Index:

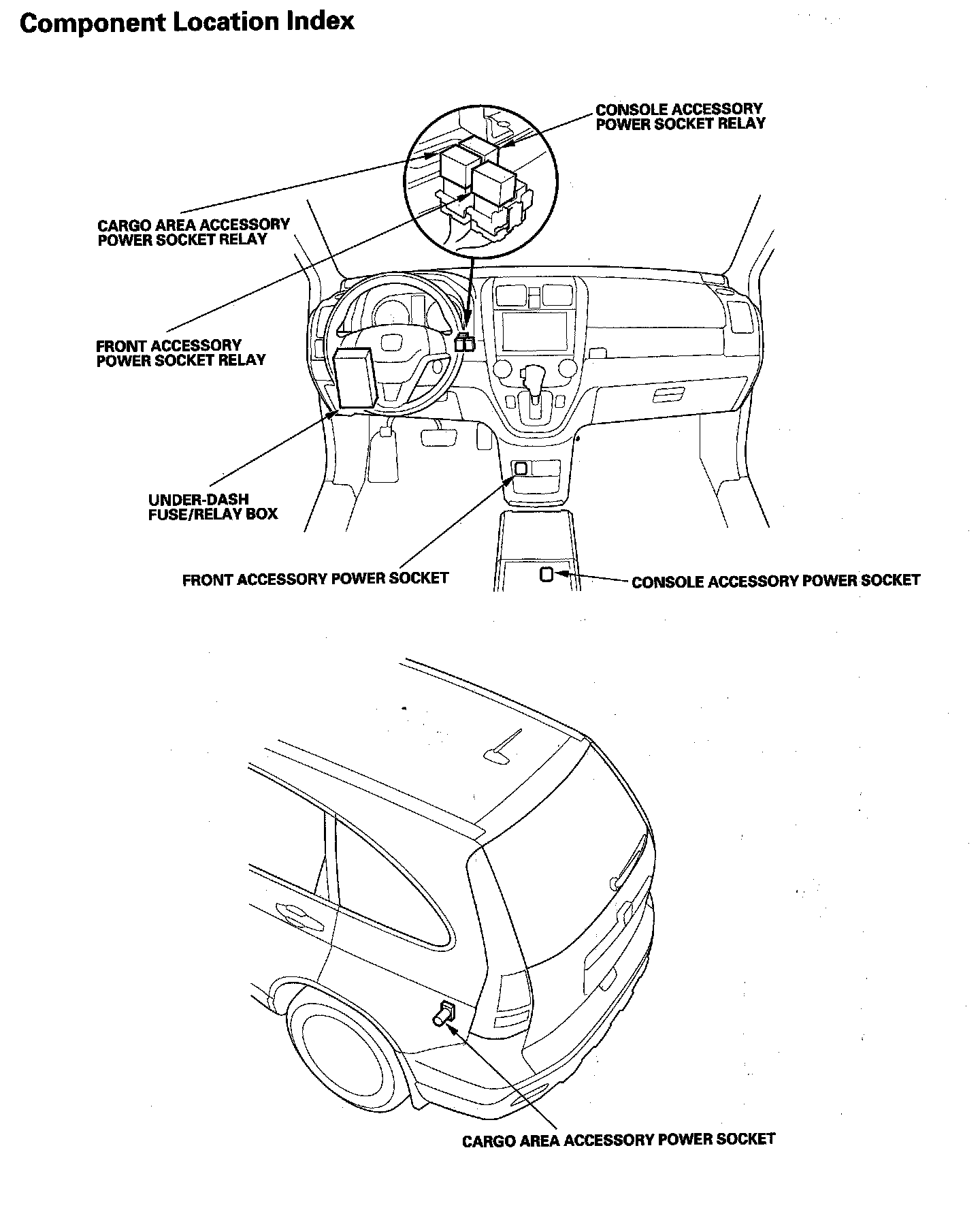

Accessory Power Sockets Component Location Index:

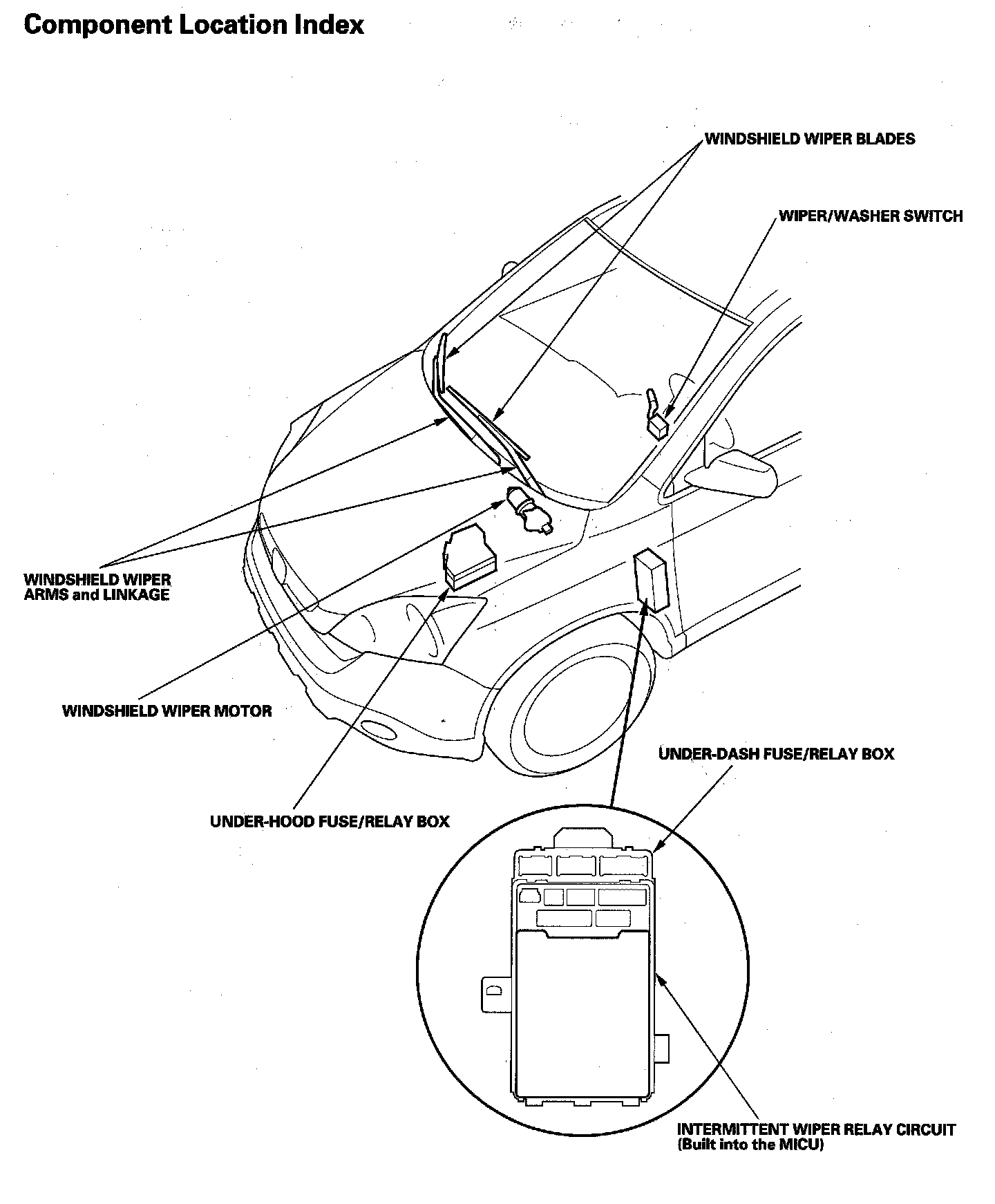

Wipers/Washers Component Location Index:

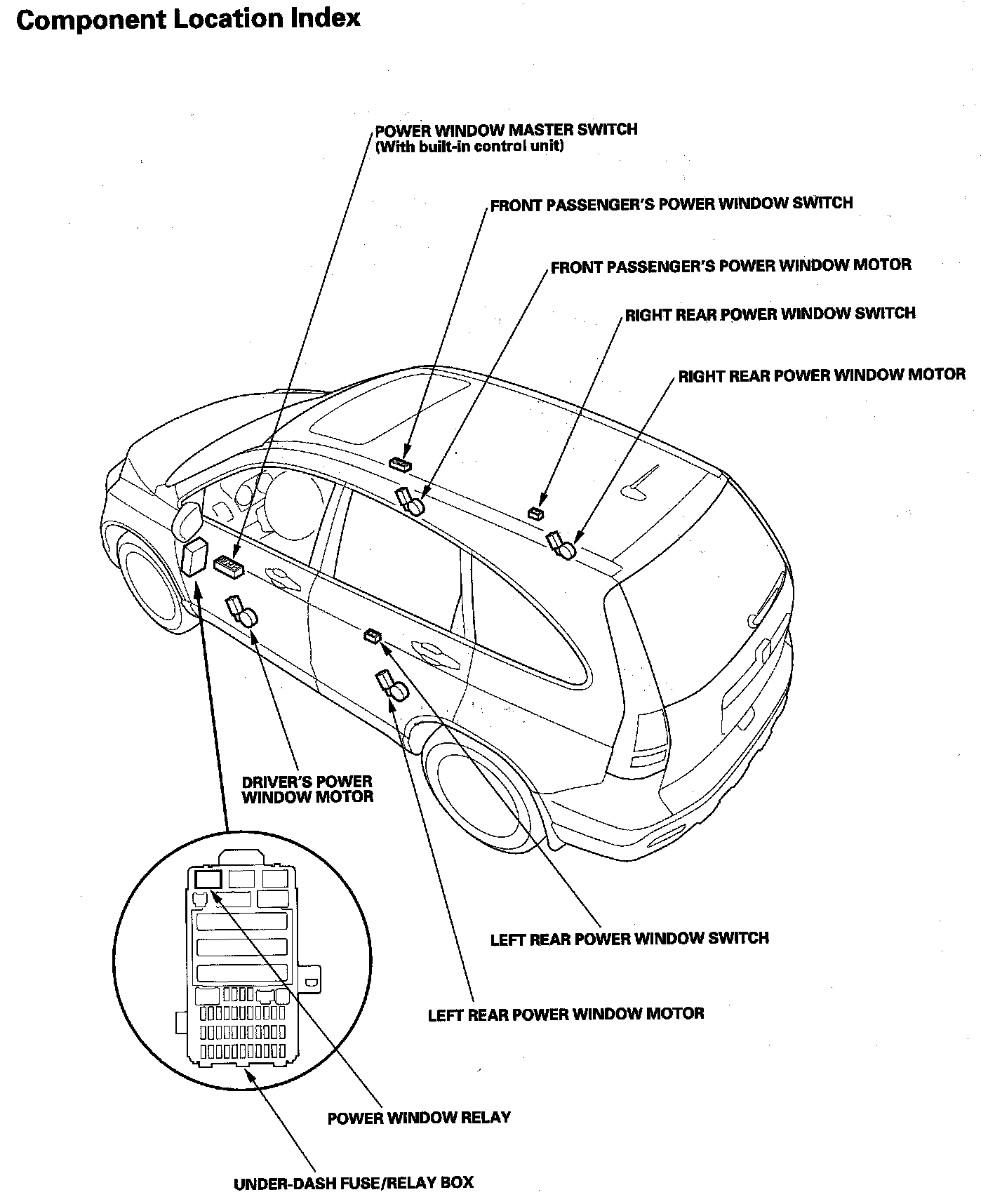

Power Windows Component Location Index:

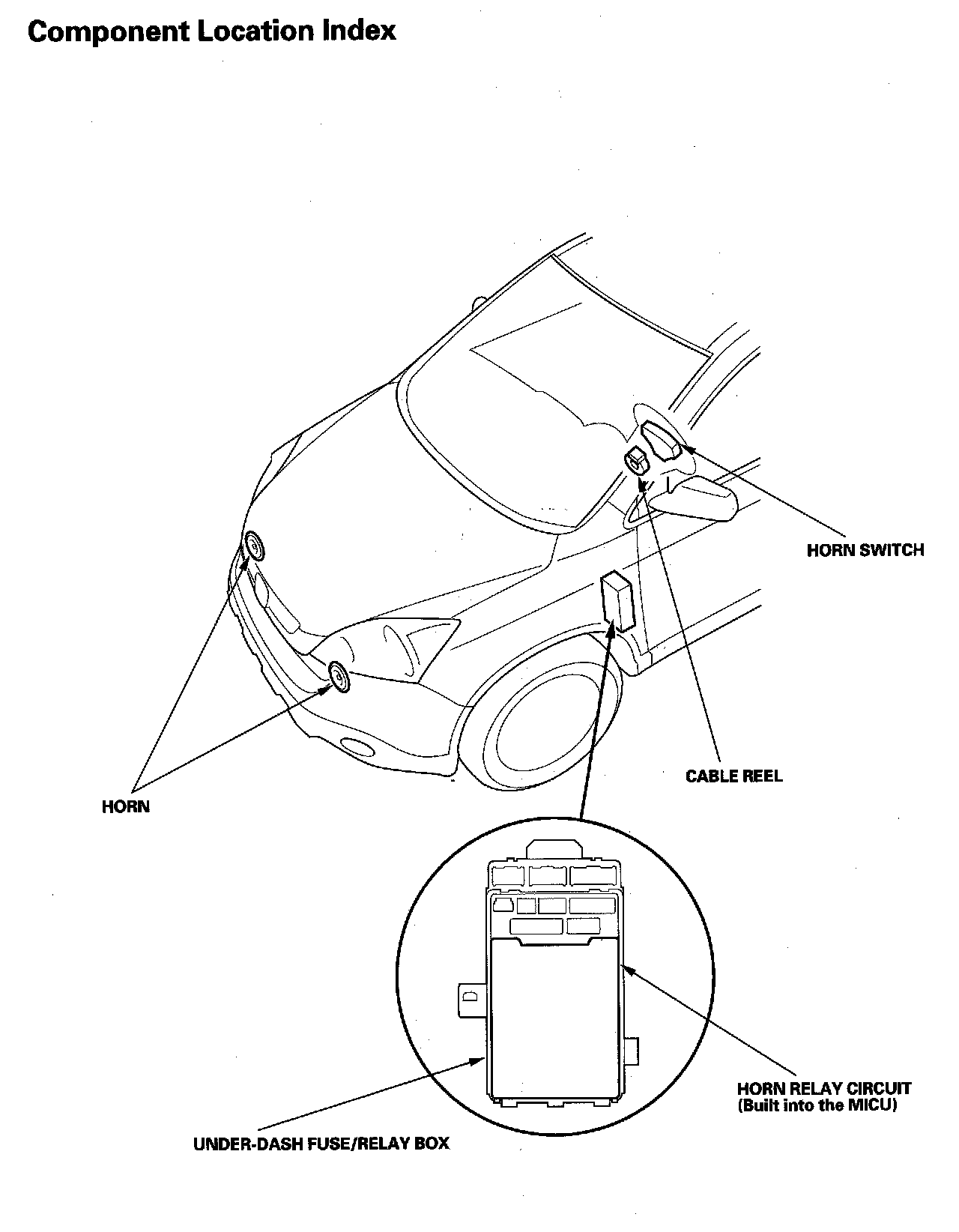

Horns Component Location Index:

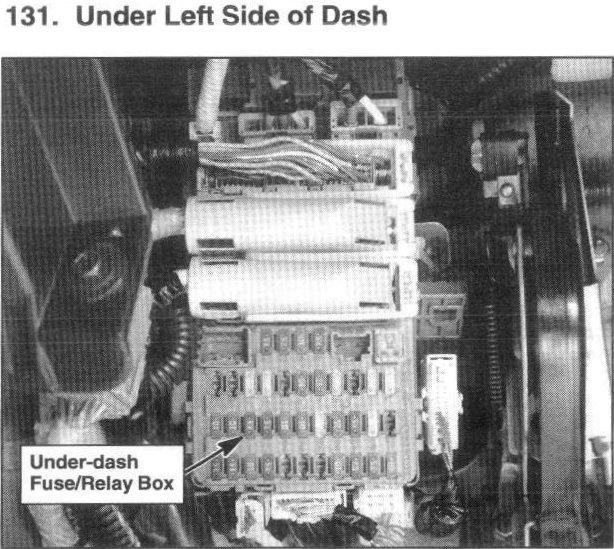

Relay And Control Unit Locations Dashboard:

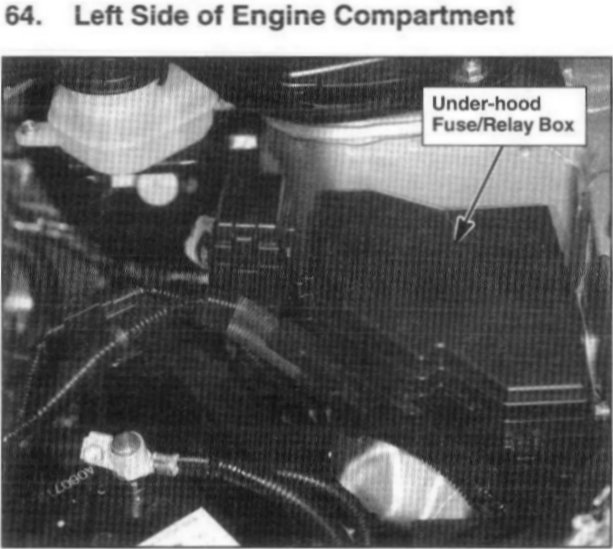

Relay And Control Unit Locations Engine Compartment:

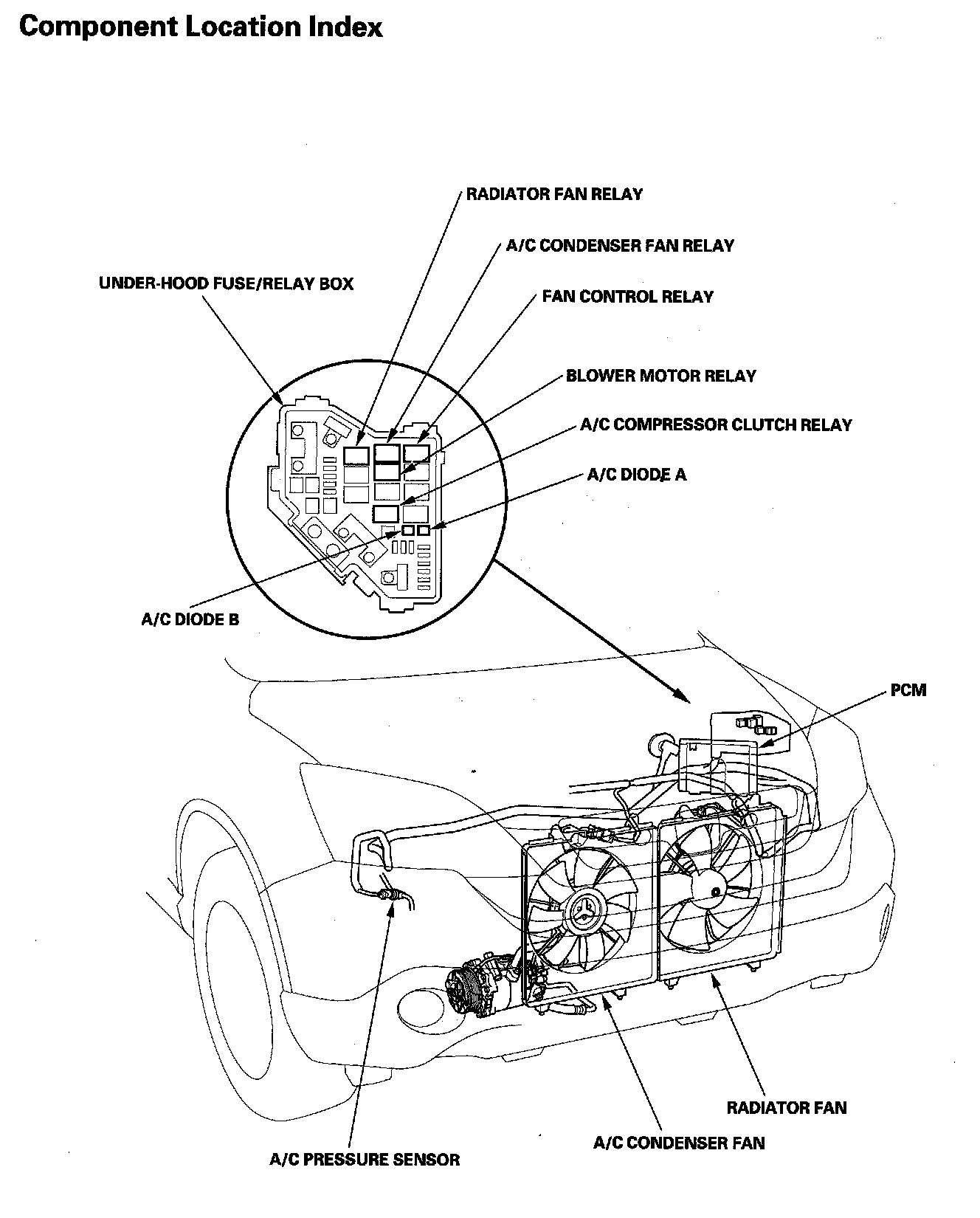

Heating/Air Conditioning Component Location Index:
