Torque Specifications
Cylinder HeadMeasure the diameter of each cylinder head bolt at point A and point B.
If either diameter is less than 10.6 mm (0.42 in.), replace the cylinder head bolt.

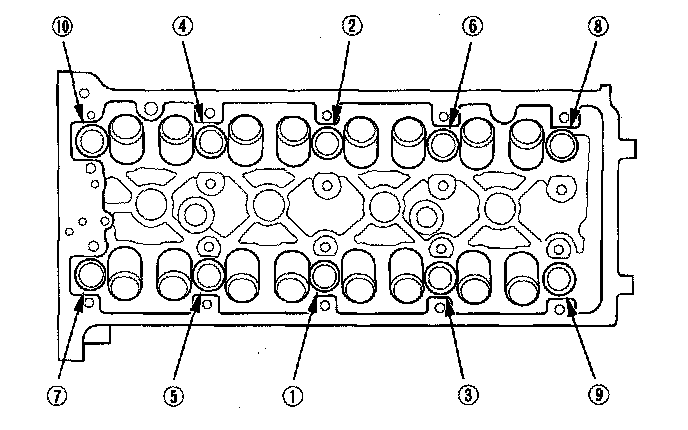

Tighten the cylinder head bolts in sequence 39 N-m (4.0 kgf-m, 29 lbf-ft).

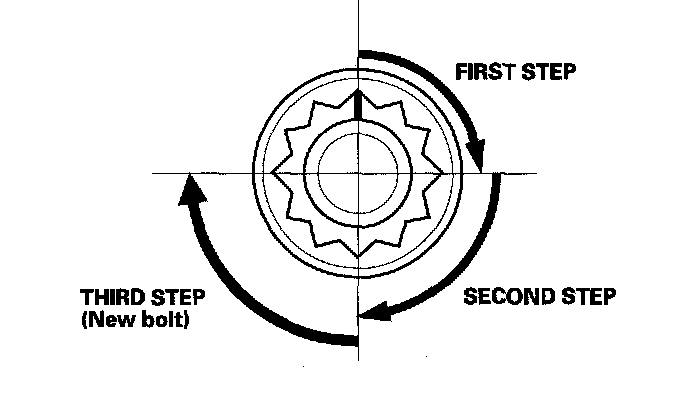

After torquing, tighten all cylinder head bolts in two steps (90° per step). If you are using a new cylinder head bolt, tighten the bolt an extra 90°.

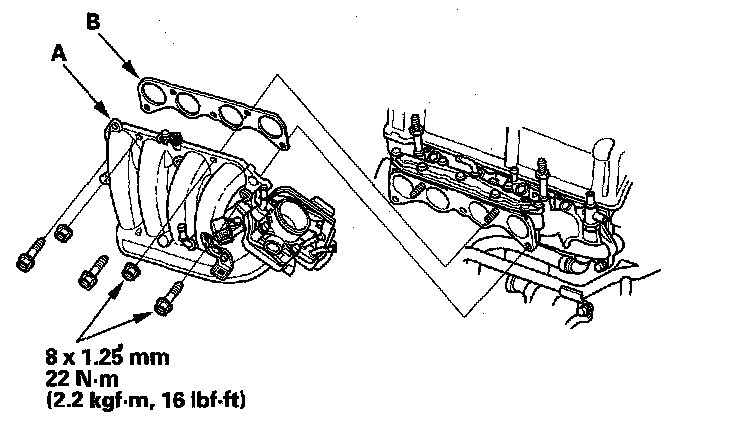

Intake Manifold
Tighten the bolts and nuts in a crisscross pattern in two or three steps, beginning with the inner bolt.

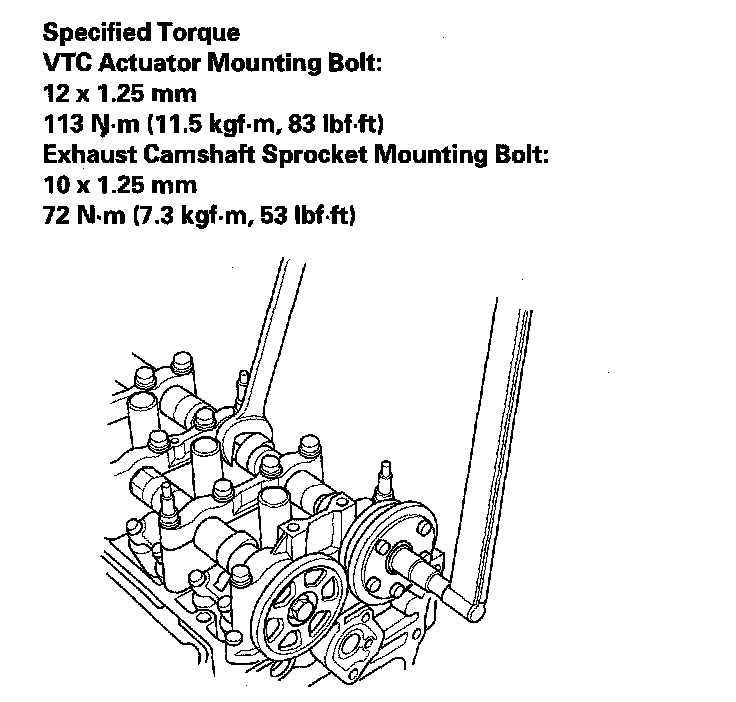

Camshaft Sprocket

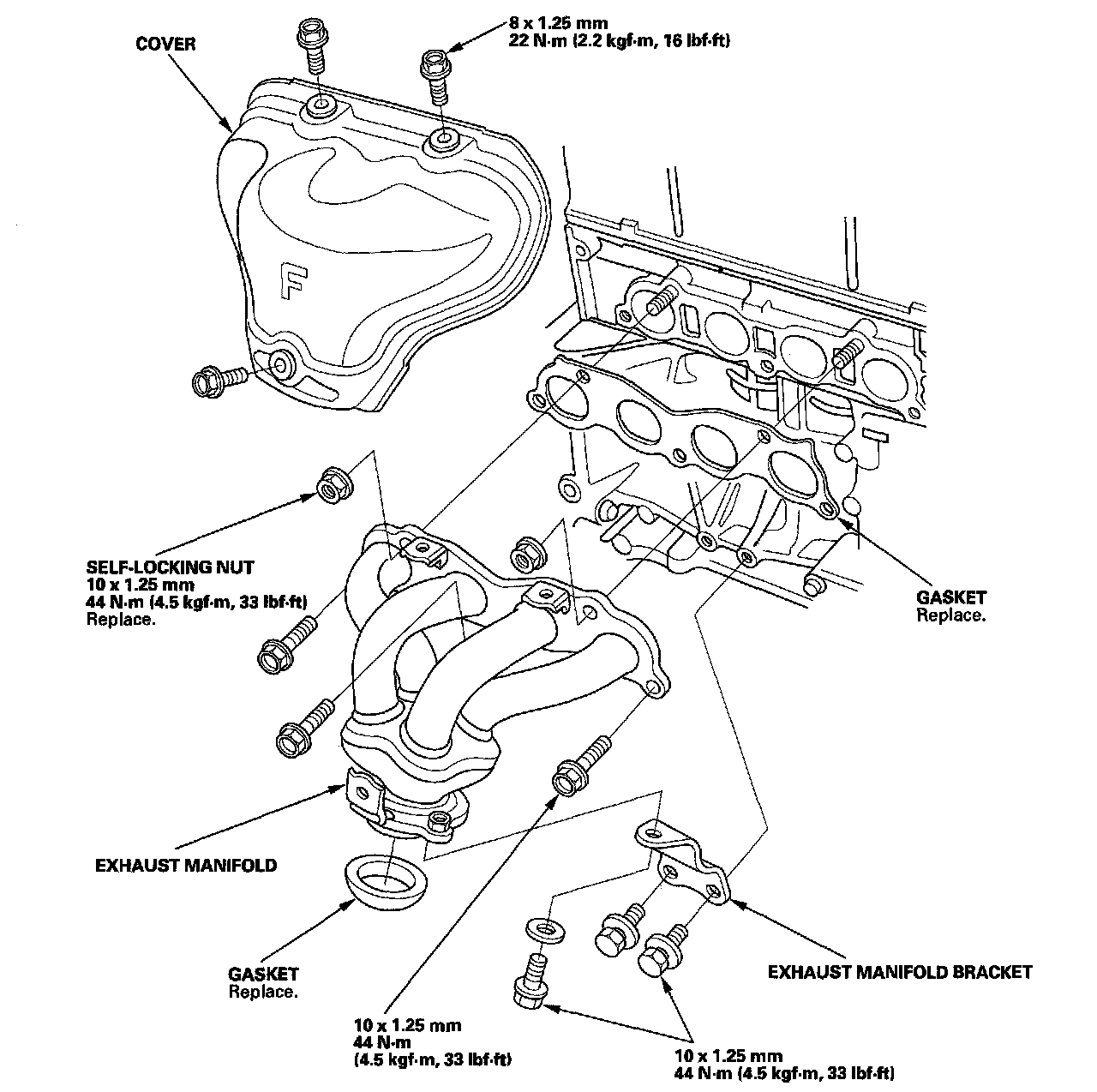

Exhaust Manifold
Install the exhaust manifold, and tighten the bolts and nuts in a crisscross pattern in two or three steps, beginning with the inner nut.
