Power Window Switch: Locations

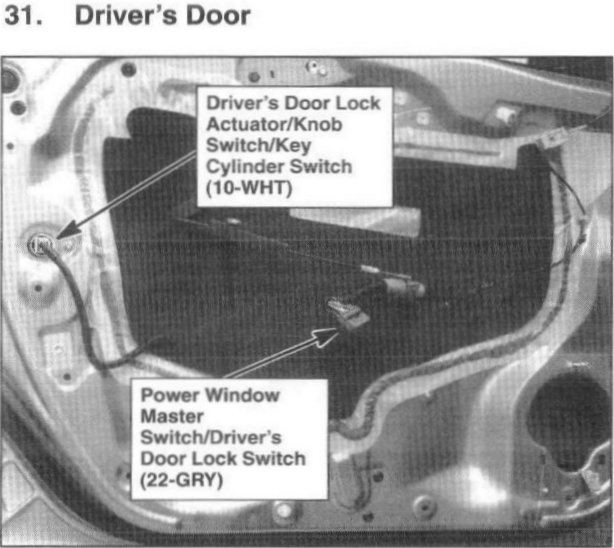

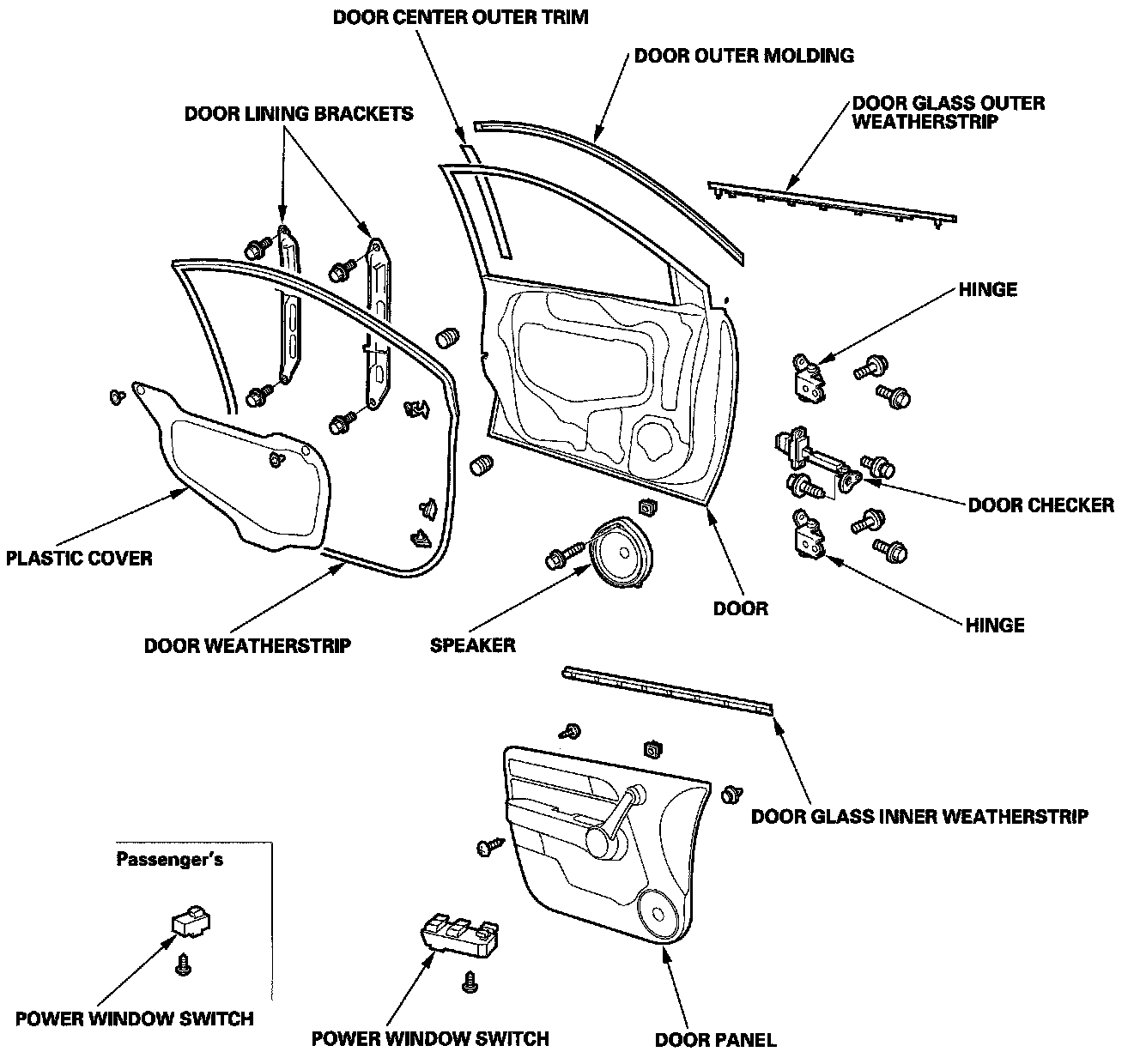

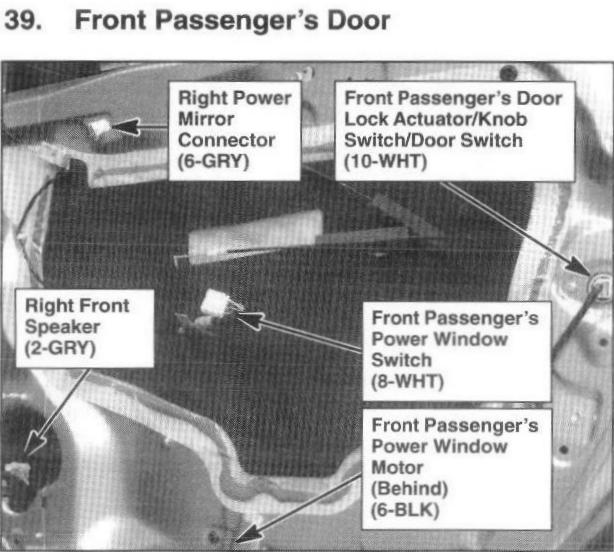

Front Door Component Location Index:

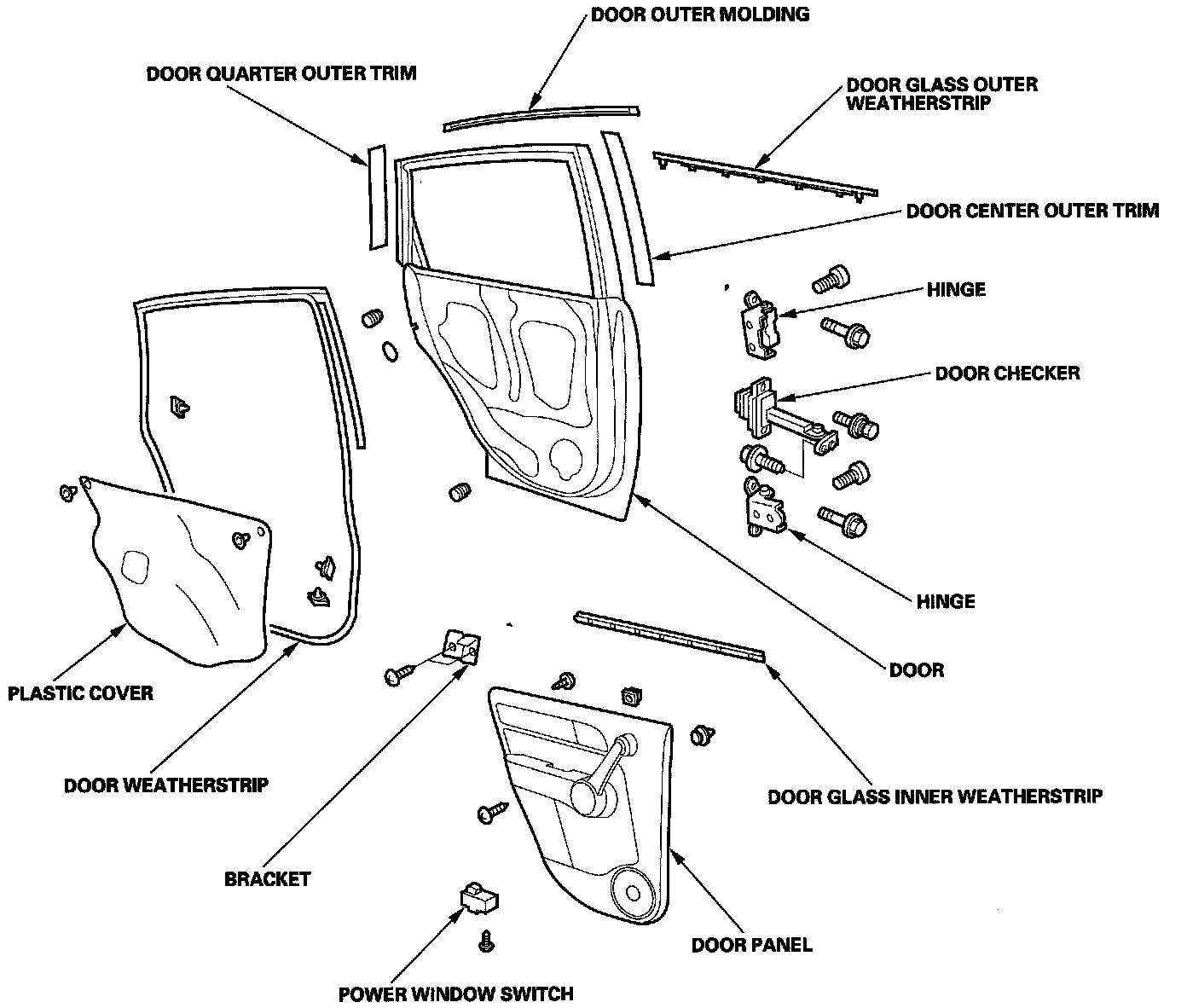

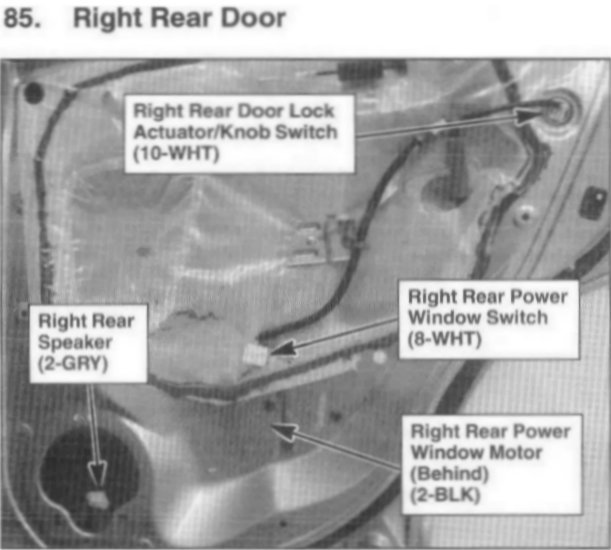

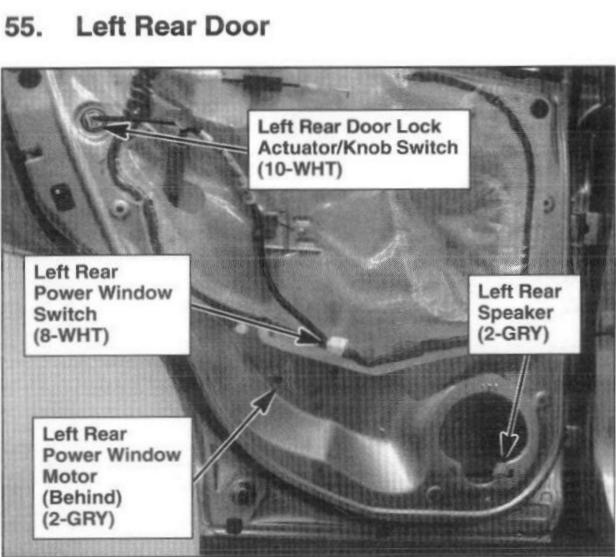

Rear Door Component Location Index:



Power Windows Component Location Index:

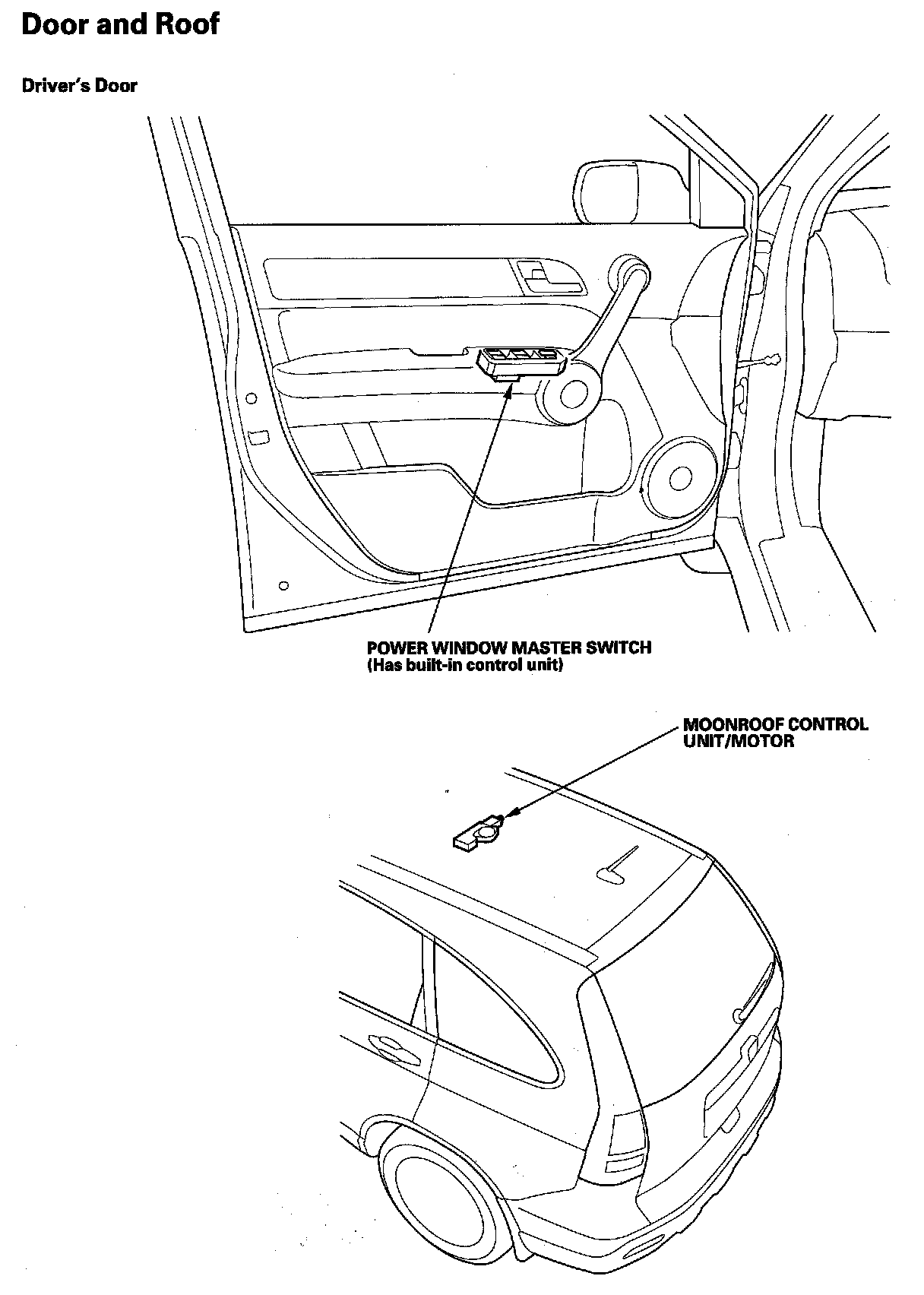

Relay And Control Unit Locations Door And Roof:
