Component Location Index

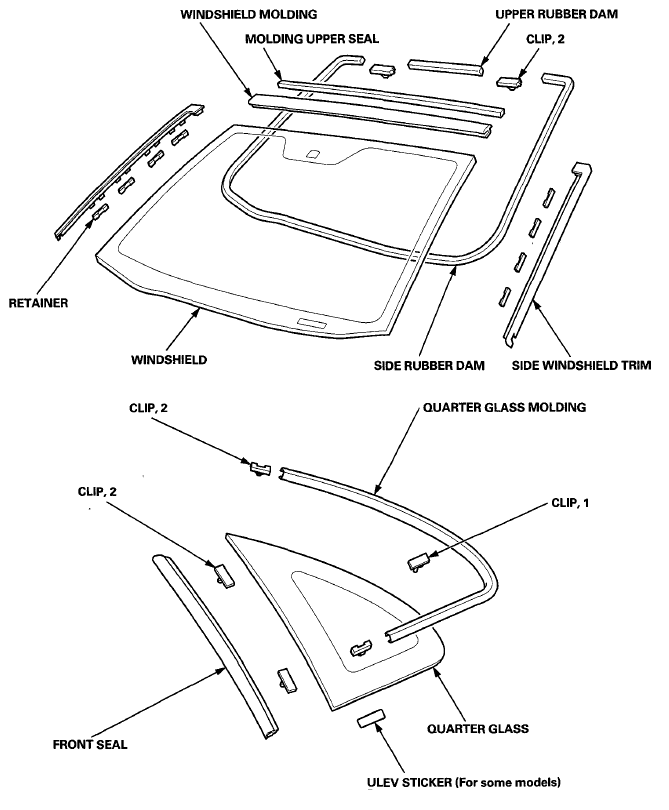

Fig 1: Glass Component Location Index (1 Of 2)

G06611399

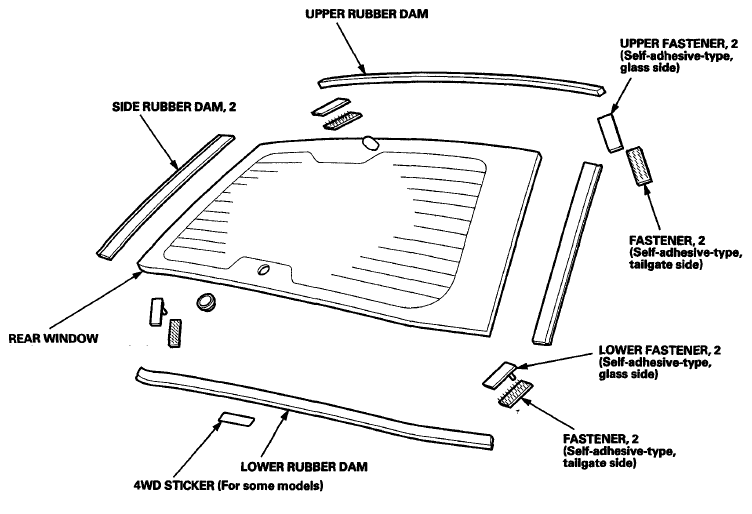

Fig 2: Glass Component Location Index (2 Of 2)

G06611400
