Upper Torque Rod Replacement

  1. Remove the upper torque rod (A).

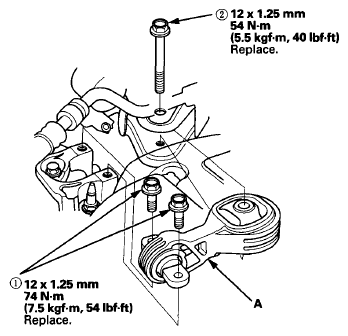

    Fig 1: Upper Torque Rod With Torque Specifications
    G06609059Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the upper torque rod, then tighten the new bolts in the numbered sequence shown.
