DTC P0977: Open in Shift Solenoid Valve B Circuit: Notes

Fig 1: Shift Solenoid Valve B - Circuit Diagram
G04816885

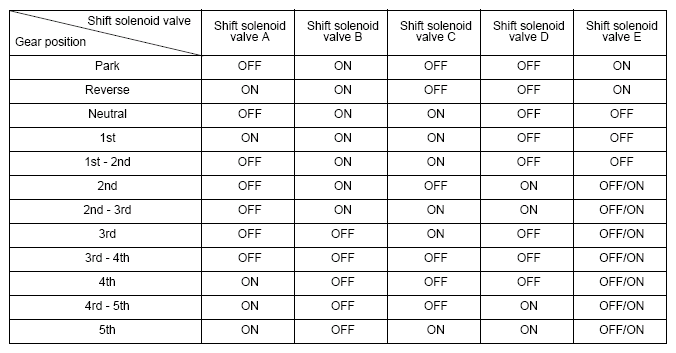

Fig 2: Shift Solenoid Valve Driving Signal Combination Table
G04823344
