CKP Sensor Replacement

  1. Disconnect the CKP sensor connector (A).

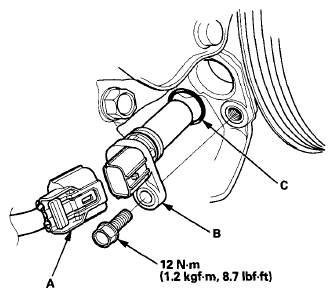

    Fig 1: CKP Sensor Connector With Torque Specification
    G06609918Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the CKP sensor (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
  4. Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
