CMP Sensor B Replacement

  1. Remove the EGR valve (see EGR VALVE REPLACEMENT ).
  2. Disconnect the CMP sensor B connector (A).

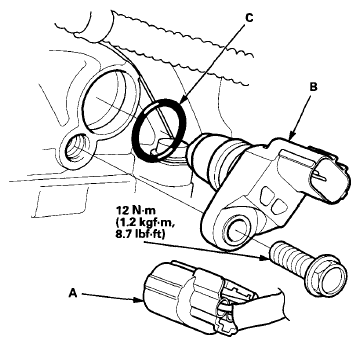

    Fig 1: CMP Sensor With Torque Specification
    G06609917Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove CMP sensor B (B).
  4. Install the parts in the reverse order of removal with a new O-ring (C).
