ECT Sensor 2 Replacement

  1. Remove the splash shield.
  2. Drain the engine coolant (see COOLANT CHECK ).
  3. Disconnect the ECT sensor 2 connector (A), then remove ECT sensor 2 (B).

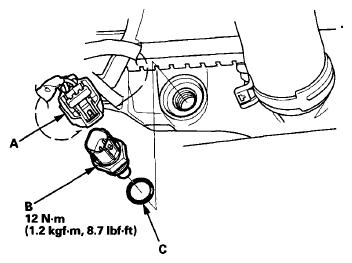

    Fig 1: ECT Sensor 2 Connector With Torque Specification
    G06609922Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install ECT sensor 2 with a new O-ring (C).
  5. Install the splash shield.
  6. Refill the radiator with engine coolant (see COOLANT CHECK ).
