Knock Sensor Replacement

  1. Lift the vehicle, and support it with jackstands.
  2. Disconnect the knock sensor connector (A).

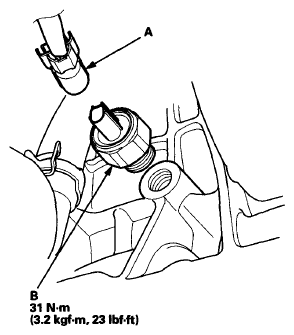

    Fig 1: Lnock Sensor Connector With Torque Specification
    G06609923Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the knock sensor (B).
  4. Install the parts in the reverse order of removal.
