Rocker Arm Oil Control Valve Removal/Installation

Remove the power steering hose stay (A).

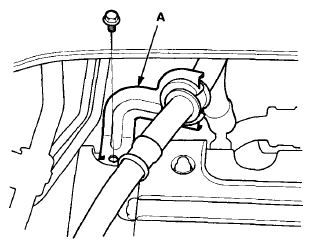

Fig 1: Identifying Power Steering Hose Stay
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the rocker arm oil control valve connector (A) and the rocker arm oil pressure switch connector (B).

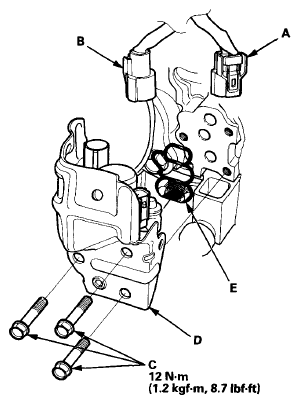

Fig 2: Rocker Arm Oil Control Valve Connector And Rocker Arm Oil Pressure Switch Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (C).
Remove the rocker arm oil control valve (D).
Install the parts in the reverse order of removal with a new solenoid valve filter (E) and a new O-ring.
