PCM A/T Control System Electrical Connections - K24Z1 Engine

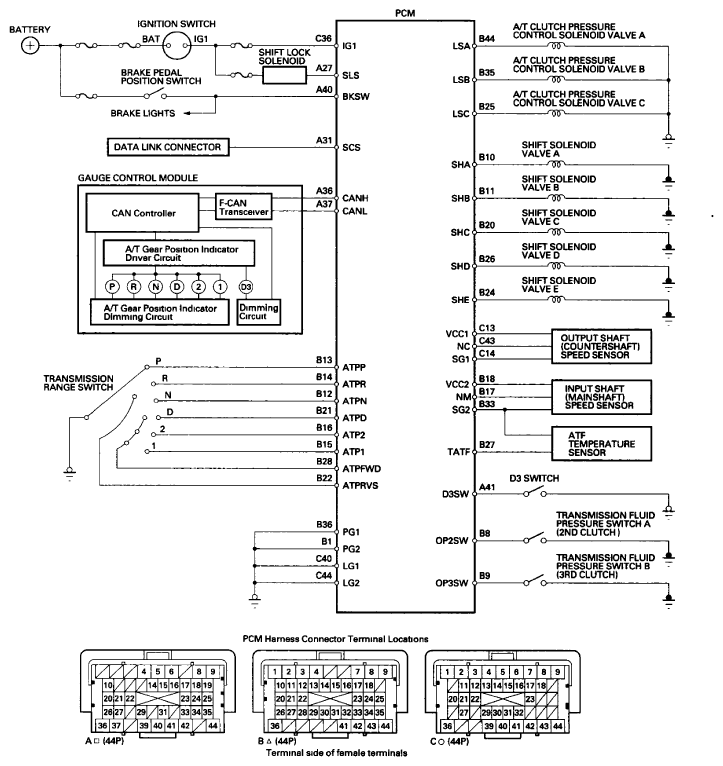

Fig 1: PCM A/T Control System Electrical Connections Diagram (K24Z1 Engine)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
